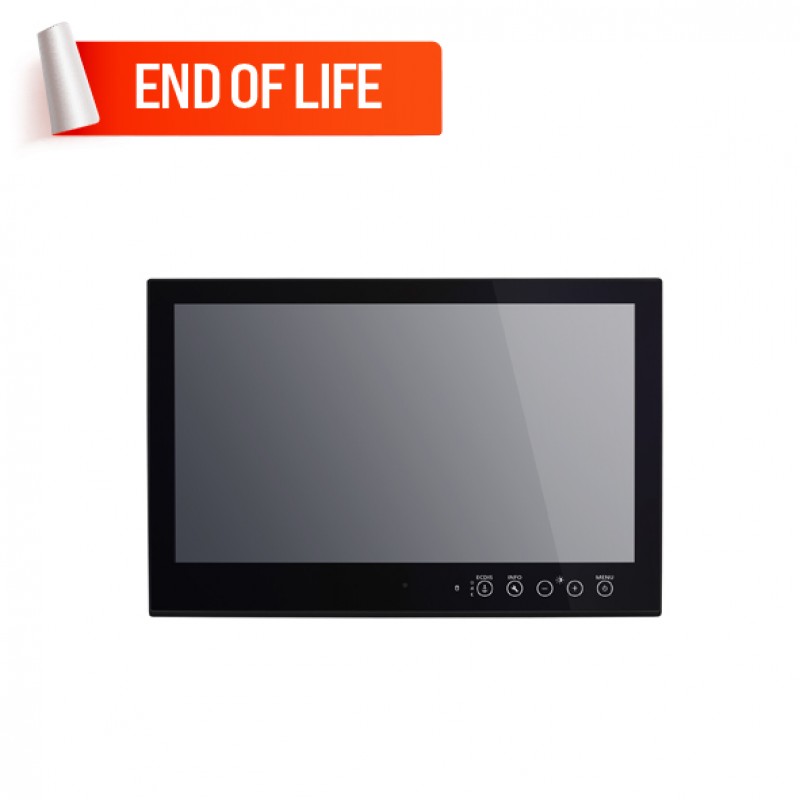

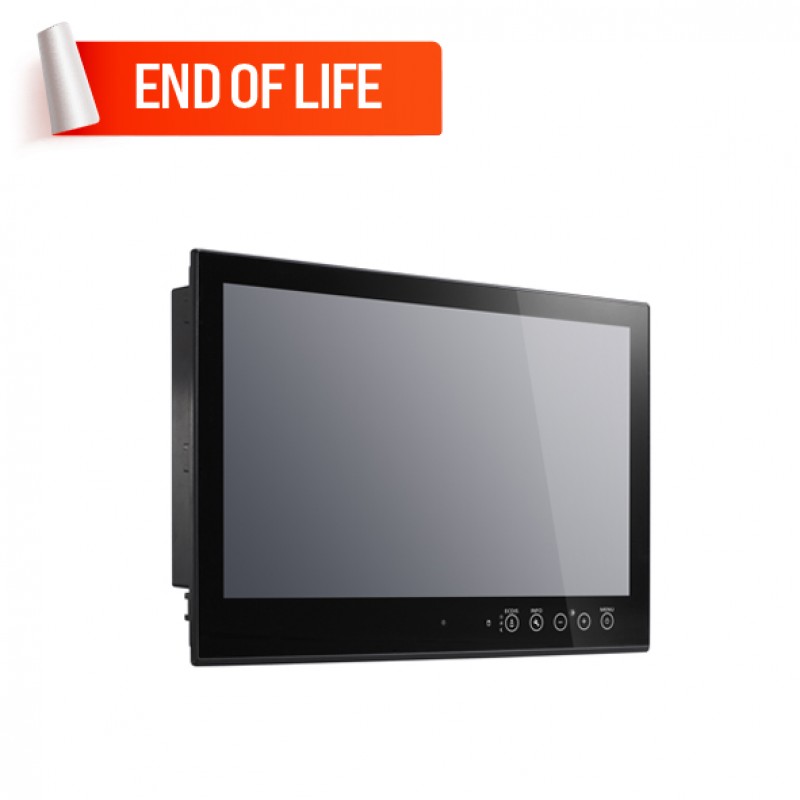

MOXA MD-224Z-HB Industrial Monitor

  • 24-inch (16:9) viewable image display (1000 nits)
  • 1 x RS/232 and 1 x RS/232/422/485 Serial ports
  • 1 x DVI-D (DVI-D) and 1 x VGA (D-sub) Video inputs
  • Metal body design (IP66 for front, IP22 for rear)
  • Dual power supplies (100 to 240 VAC, 24 VDC)
  • Desktop, Panel, and VESA mount installation
  • Capacitive Touch (PCAP) interface
  • -15 to 55°C operating temperature range

Description

The MD-224 Series of marine displays come with full range dimming, wide viewing angles, and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, thereby reducing deployment costs and overall time-to-market. The innovative and user-friendly SavvyTouch display controls offer several unique features not found in most marine display consoles: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates of power status, and a quick switch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).

The MD-224 Series displays are compliant with IEC 60945, DNV, ABS, and IACS E10 making them suitable for maritime applications. Their IP54rated (IP66-rated models available on request) enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies. ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.


End of Life Product - No Replacement

Please note that the MD-224 Series has been phased out. You can explore the MPC-2070 Series, MPC-2121 Series, EXPC-F2120W Series, and EXPC-F2150W Series in the Displays and Panel Computers.


You can Buy the MOXA MD-224Z-HB Industrial Monitor via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

Interface
Serial Ports 1 x RS-232 ports (DB9 male), 1 x RS-232/422/485 ports, software selectable (terminal block)
Display Interface 1 x DVI-D 29-pin DVI-D connectors (female), 1 x VGA 15-pin D-sub connector (female)
Display
Panel Size 24-inch viewable image
Aspect Ratio 16:9
Response Time 25 ms (gray to gray)
Contrast Ratio 5000:1
Viewing Angles 178°/178°
Touch Capacitive Touch (PCAP)
Pixels 1920 x 1080
Light Intensity 1000 cd/m^2
Active Display Area -
Max. No. of Colors 16.7M (8-bit/color)
Serial Communication Parameters
Baudrate 50 bps to 115.2 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
Power Requirements
Input Voltage Dual power inputs: 100 to 240 VAC, 24 VDC (18 to 30 V)
Power Consumption 40 W (Max)
Physical Characteristics
Dimensions 595 x 393 x 75 mm (23.43 x 15.47 x 2.95 in)
Housing Metal
Operating temperature -15 to 55°C (5 to 131°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Relative humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 1k V; Maritime: ABS, CCS, IEC 60945, DNV; Safety: UL 60950-1; IP66; IP22;
Weight 9,570 g (21.10 lb)
Mounting Desktop, Panel mounting, VESA mounting
