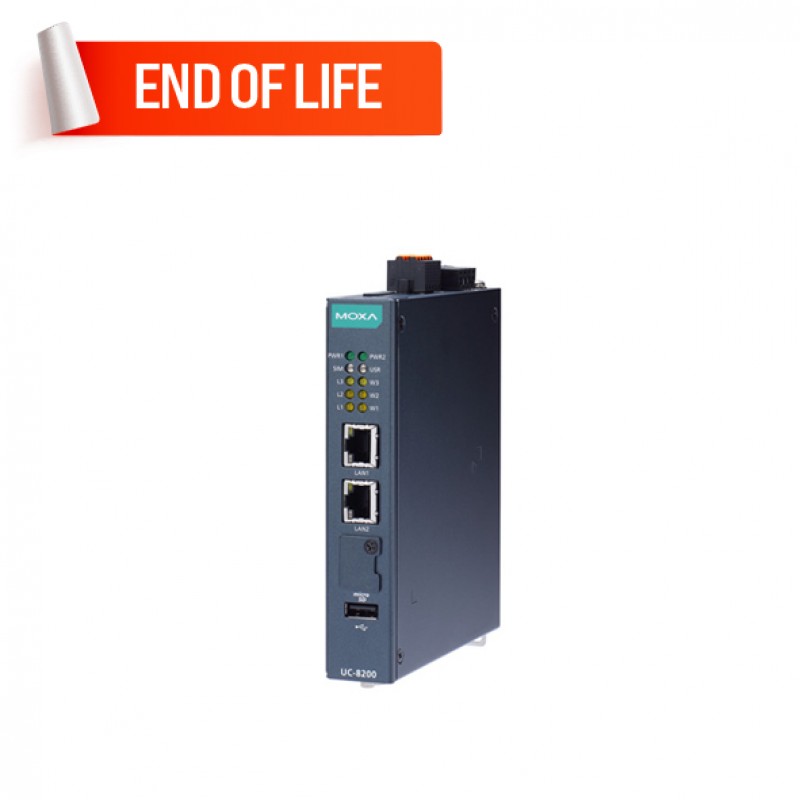

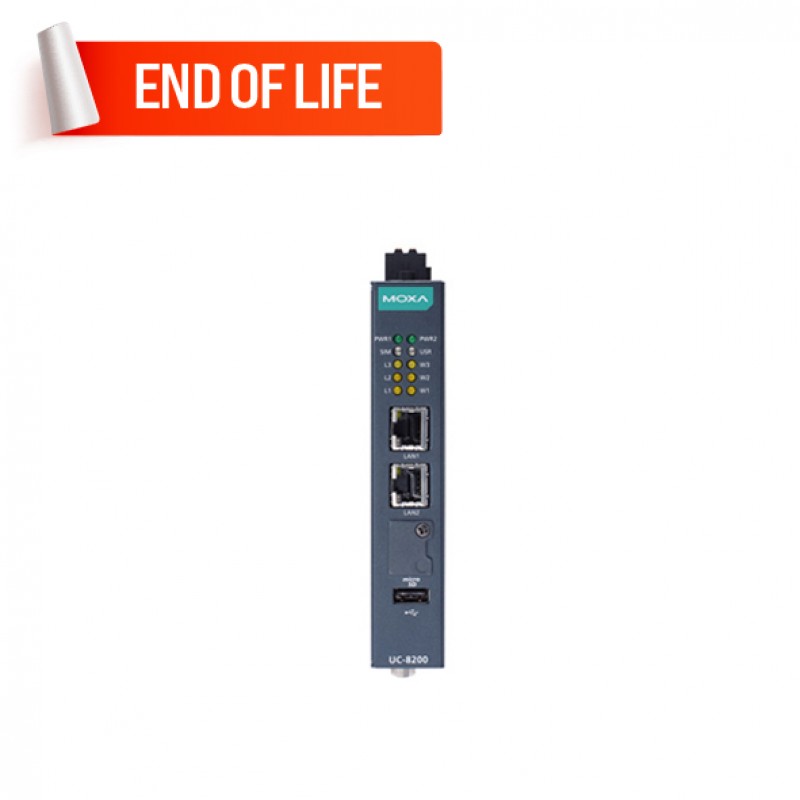

MOXA UC-8210-T-LX Industrial Embedded Computer
- CPU Armv7 Cortex-A7 dual-core 1 GHz
- 2 x RS-232/422/485 Serial ports
- 2 x 10/100/1000 Mbps Ethernet ports
- Pre-installed MOXA Industrial Linux 1 (Debian 9)
- 12 to 48 VDC input power range
- IP30-rated SECC and Metal body design
- DIN-rail and Wall mounting
- -40 to 70°C operating temperature
.png)
Description
The UC-8200 computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and one CAN port as well as dual Mini PCIe sockets to support Wi-Fi/cellular modules. These versatile capabilities let users efficiently adapt the UC-8200 to a variety of complex communications solutions.
The UC-8200 is built around a Cortex-A7 dual-core processor that has been optimized for use in energy monitoring systems but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.
Wide-temperature LTE-enabled models are available for extended-temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.
You can also find the UC-8210-T-LX-S, UC-8220-T-LX, and UC-8220-T-LX-AP-S models in the Wide Temperature Computers.
You can Buy the MOXA UC-8210-T-LX Industrial Embedded Computer via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Computer | |
|---|---|
| CPU | Armv7 Cortex-A7 dual-core 1 GHz |
| Supported OS | Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL, Moxa Industrial Linux 31 (Debian 11, kernel 5.10), 2031 EOL |
| OS (pre-installed) | Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL |
| System Memory | 2 GB DDR3L |
| Graphics Controller | - |
| Storage Slot | - |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs |
| Serial Ports | 2 x RS-232/422/485 ports, software selectable (DB9 male) |
| USB | 1 x USB 2.0 host, type-A connectors |
| Expansion Slot | MicroSD (SD 3.0) socket x 1 |
| Serial Communication Parameters | |
| Baudrate | 300 bps to 921.6 kbps |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | - |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 2, Programmable x 1, SIM card indicator x 1 |
| LAN | - |
| Serial | - |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 0.8 A @ 12 VDC |
| Power Consumption | 10 W |
| General | |
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
| MTBF | 708,581 hrs |
| Physical Characteristics | |
| Dimensions | 141.5 x 120 x 27 mm (5.7 x 4.72 x 1.06 in) |
| Housing | SECC/Metal |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV; Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; Hazardous Locations: Class I Division 2, ATEX, IECEx; Carrier Approvals: Verizon, AT&T; Safety: UL 62368-1, EN 62368-1; Shock: IEC 60068-2-27; Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached); Green Product: RoHS, CRoHS, WEEE; IP30; Telcordia (Bellcore) Standard TR/SR |
| Weight | 560 g (1.23 lb) |
| Mounting | DIN-rail mounting, Wall mounting (with optional kit) |
