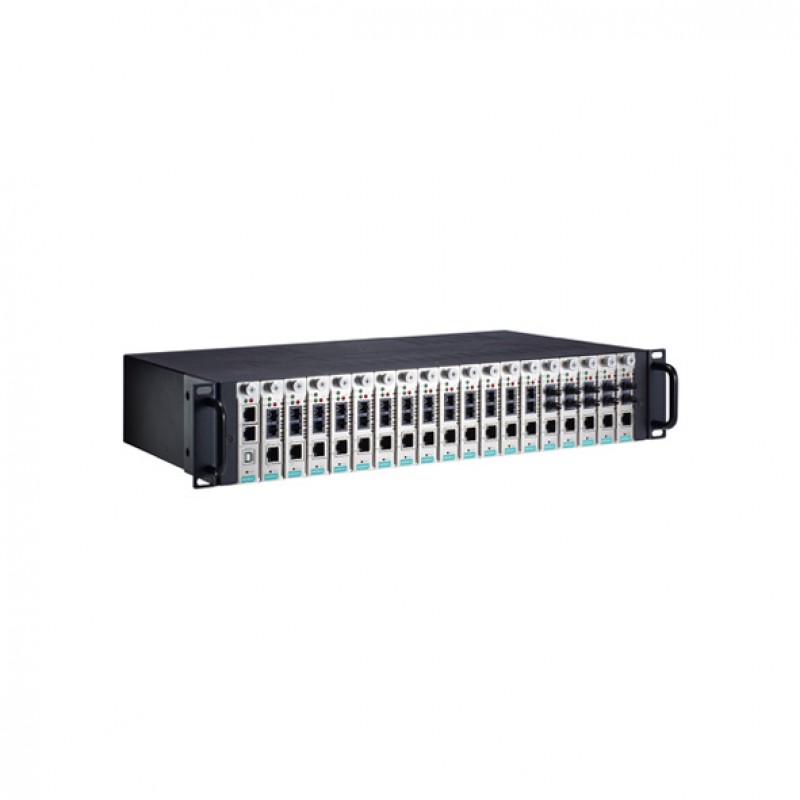

MOXA TRC-2190-AC 19-inch Rackmount Chassis For Media Converter
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 19-inch chassis for rackmount use
- 18 slots for high-density applications
- SNMP/web console for easy management
- 110 to 240 VAC Redundant dual inputs
- -20 to 55°C Operating Temperature
.png)
Description
The TRC-2190 Series provides 18 slots for media converter
modules from the CSM-400 Series of Ethernet-to-fiber management modules. It
also supports SNMP/web console for remote management and monitoring. A TRC-2190
chassis comes with one AC or DC power input, with an optional redundant power
expansion module available for greater reliability. The TRC-2190 Series’ power
input module supports a fanless chassis design, as well as a -20 to 55°C
operating temperature range.
You can also find the TRC-2190-DC-48V model in the
Industrial Media Converters.
Experience the convenient way to purchase the MOXA TRC-2190-AC 19-inch Rackmount Chassis For Media Converter in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| INTERFACE | |
|---|---|
| Ethernet Ports | 2 x 10/100BaseT(X) Ports (RJ45 connector) |
| No. of Slots | 18 slots for media converter modules from the CSM-400 Series of Ethernet-to-fiber management modules |
| POWER REQUIREMENTS | |
| Input Voltage | 110 to 240 VAC (Redundant dual inputs) |
| Power Consumption | 1.5 A @ 100 to 240 VAC |
| Overload Current Protection | Supported |
| SECURITY | |
| Authentication | Local database (password only), RADIUS, TACACS+ |
| Encryption | HTTPS, AES-128, AES-256, RSA-1024, SHA-1, SHA-256, SHA-384 |
| Security Protocols | SNMPv3, SSHv2, HTTPS (TLS 1.2) |
| GENERAL | |
| Protocols | SNMPv1/v2c, SNMPv1/v2c Trap |
| Management | DHCP Client, IPv4/IPv6, SNMPv1/v2c, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console |
| Security | HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH |
| PHYSICAL CHARACTERISTICS | |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3; Safety: UL 62368-1, IEC 62368-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| MTBF | 1,055,112 hrs |
| Operating Temperature | -20 to 55°C (-4 to 131°F) |
| Dimensions | 440 x 260 x 77 mm (18.6 x 11 x 3.3 in) |
| Installation | 19-inch rack mounting |
| Weight | 5.2 g (11.4 lb) |
