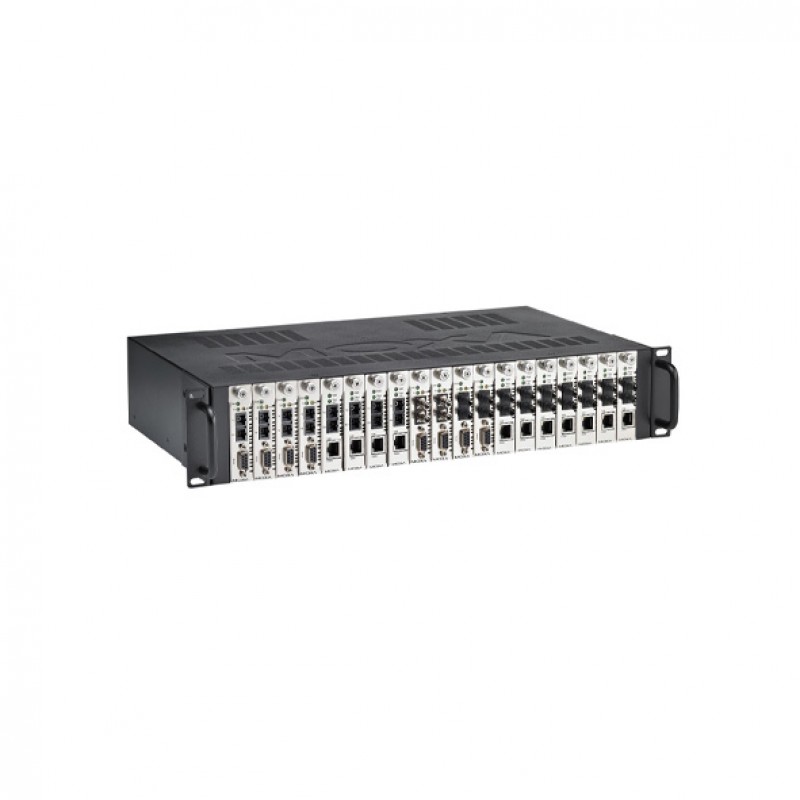

MOXA TRC-190-AC 19-inch Rackmount Chassis For Media Converter

19-inch chassis for rackmount use
19 slots for high-density applications
100-240 VAC Redundant dual inputs
0 to 60°C Operating Temperature

Brand: MOXA
Product Code: TRC-190-AC

Datasheet

Tags: Industrial Network Infrastructure , Ethernet Media Converters , Ethernet-to-Fiber Media Converters , Media Converters , Rackmount Chassis , Industrial Data Communications , Industrial Converters , Industrial Media Converters , Rackmount , Converters , MOXA TRC-190 Series

Description

The TRC-190 rackmount chassis provides 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF-142-RM Series of serial-to-fiber modules. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion AC or DC module available to enhance reliability. The PWR-190-AC and PWR-190-DC-48 power modules can be installed at the same time.

You can also find the TRC-190-DC-48 model in the Industrial Media Converters.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA TRC-190-AC 19-inch Rackmount Chassis For Media Converter through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

INTERFACE
Ethernet Ports
No. of Slots	19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF142-RM Series of serial-to-fiber modules
POWER REQUIREMENTS
Input Voltage	110 to 240 VAC (Redundant dual inputs)
Power Consumption	1.5 A @ 100 to 240 VAC
Overload Current Protection	Supported
SECURITY
Authentication	-
Encryption	-
Security Protocols	-
GENERAL
Protocols	-
Management	-
Security	-
PHYSICAL CHARACTERISTICS
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC), IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: IEC 62368-1, UL 62368-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
MTBF	1,055,112 hrs
Operating Temperature	0 to 60°C (32 to 140°F)
Dimensions	440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in)
Installation	19-inch rack mounting
Weight	5200 g (11.4 lb)
