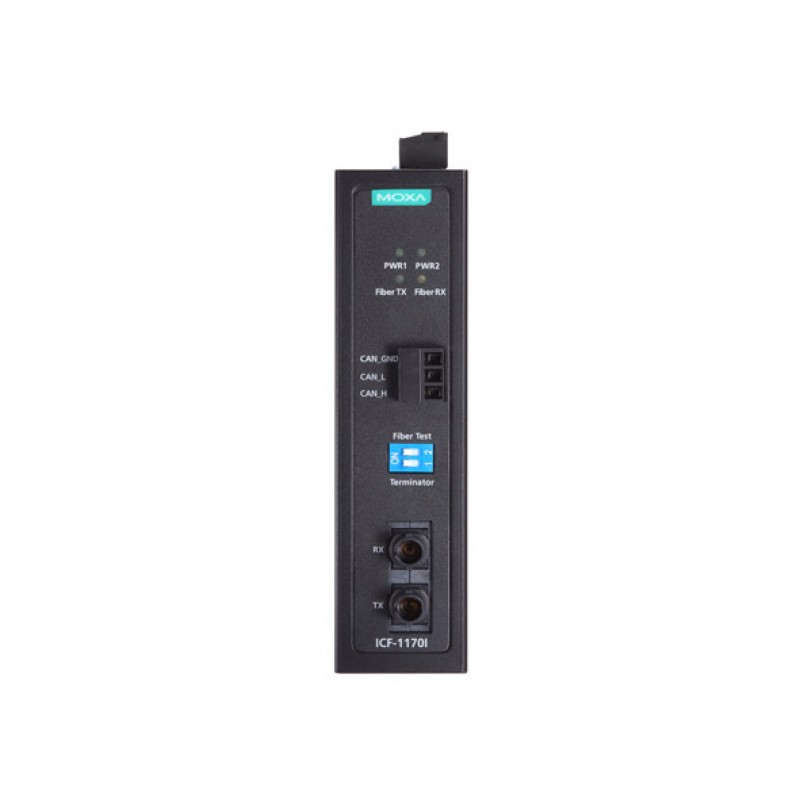

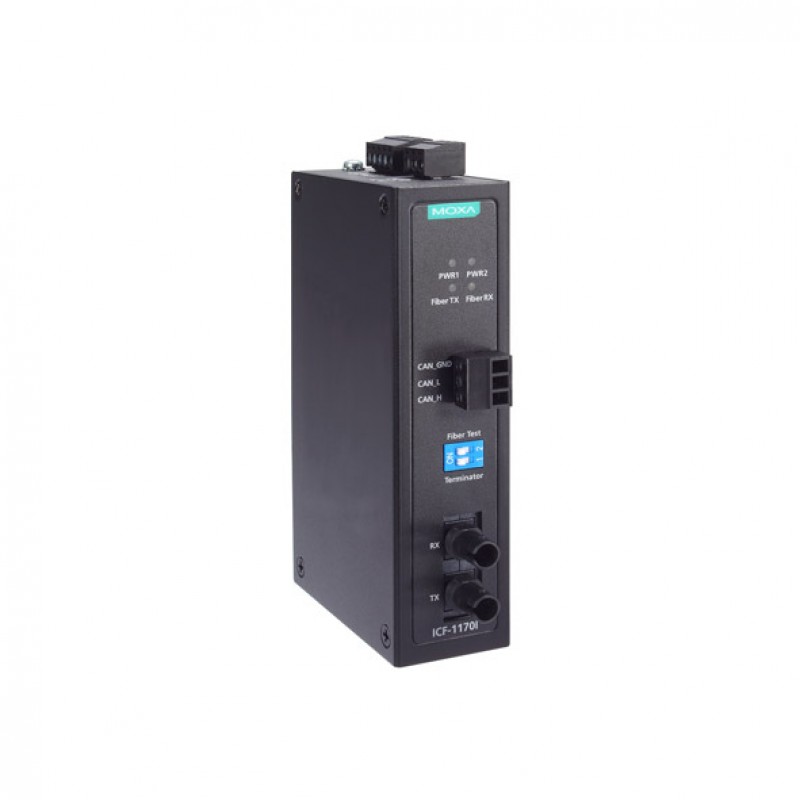

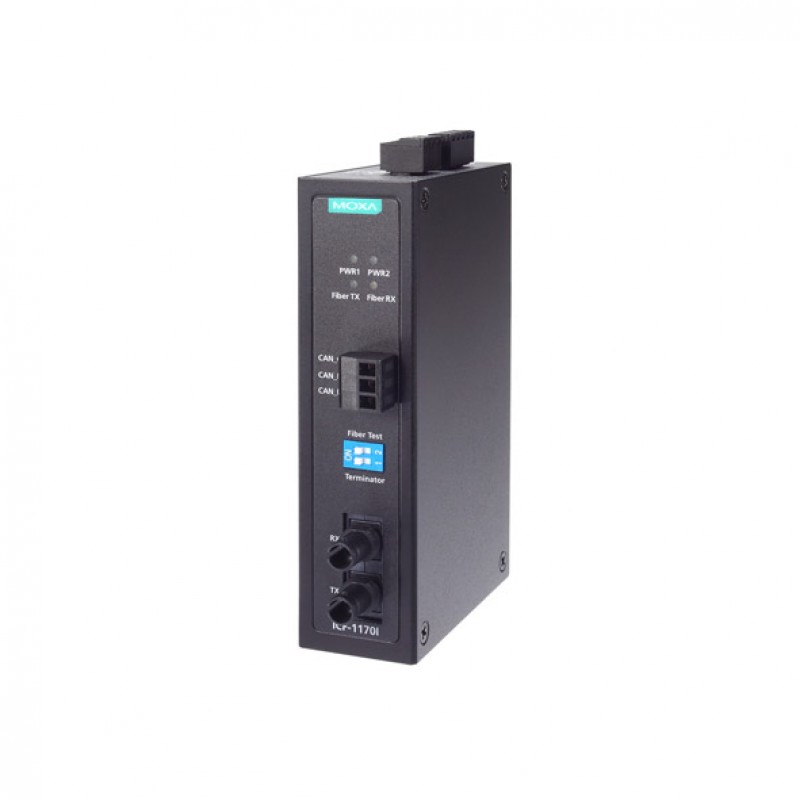

MOXA ICF-1170I-M-ST CANbus to Fiber Converter
- CANbus to multi-mode ST fiber-optic converter
- 1 x CAN Port with 2 KV Isolation protection
- 1 x 100BaseFX port (multi-mode ST connector)
- 5 KM Typical data transmission distance on fiber
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- DIN-rail mounting
- 0 to 60°C operating temperature
- Brand: MOXA
- Product Code: ICF-1170I-M-ST
.png)
Description
The ICF-1170I Series CAN-to-fiber converters are used to convert CAN signals from copper to optical fiber. The converters come with 2 kV optical isolation for the CAN bus system and dual power inputs with an alarm contact relay to ensure that your CAN bus system will remain online. Fiber Test Mode Fiber Test Mode can be used to test the fiber cable between two ICF-1170I units and it provides a simple way to determine if the fiber cable is transmitting data correctly. When in Fiber Test Mode, the fiber transceiver (Tx) will continuously send out a data signal and the Fiber Tx LED will light up. On the other side of the connection, when the ICF-1170I fiber transceiver (Rx) receives the data signal from the TX side, the Fiber Rx LED will light up.
You can also find the ICF-1170I-M-ST-T model in the Protocol Converters.
Easy World Automation offers the
easiest way to buy the MOXA ICF-1170I-M-ST CANbus to Fiber Converter in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh) and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 ST Port |
| Serial port | |
| USB | |
| Other ports | : 1 x CAN Port (CAN_L, CAN_H, CAN Signal GND) |
| Isolation | : 2 KV |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | Up to 1 Mbps |
| Maximum data transmission distance | 5Km on fiber |
| Minimum output power converter | -5 dBm |
| Sensitivity to receiving information | -20 dBm |
| Wavelength | 850 nm |
| Require cable diameter | 50/125 μm, 800 MHz, 62.5/125 μm, 500 MHz |
| Flow Control | - |
| Protocols | - |
| Serial Signals | |
| RS-232 Signals | - |
| RS-422 Signals | - |
| RS-485-2w Signals | - |
| RS-485-4w Signals | - |
| Power Requirements | |
| Power Consumption (Output Adapter) | 221 mA @ 12 to 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 221 mA @ 12 to 48 VDC |
| Connector | Terminal block |
| General | |
| Fan / Fanless | - |
| MTBF | 792,085 hrs |
| Physical Characteristics | |
| Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
| Housing | Metal |
| Installation | DIN-rail mounting |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 508; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 178 g (0.39 lb) |
| LED Indicators | |
| LED Per Port | |
| Power | |
