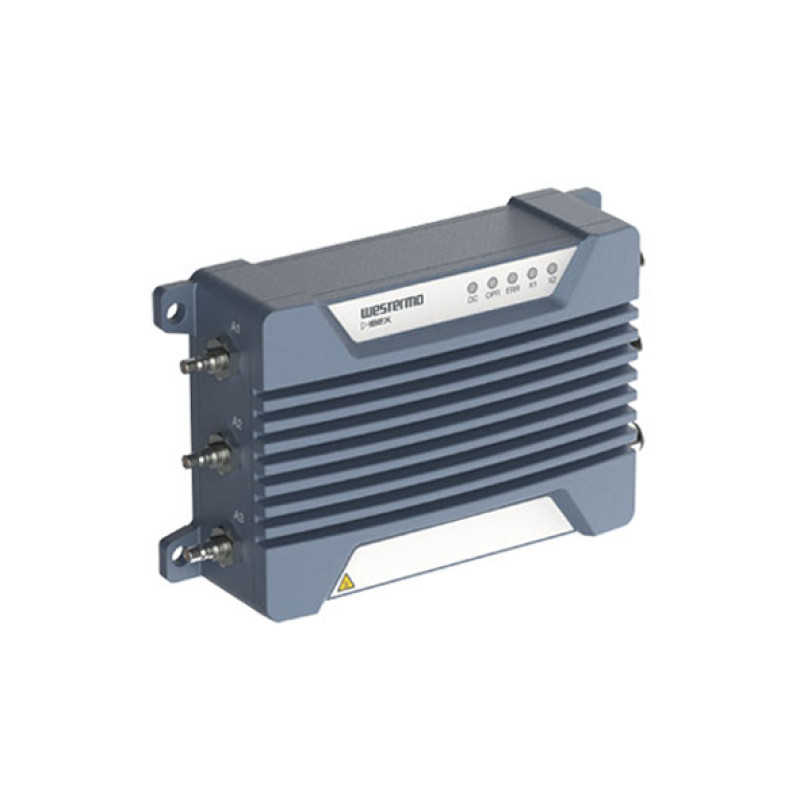

Westermo Ibex-RT-320-HV EU Client/Bridge/Access Point

  • Supports Europe Frequency Bands
  • 2 x 10/100/1000 Base-T Ethernet ports (M12 connector)
  • 72 to 110 VDC isolated input power range
  • IP66-rated Metal body material
  • Screw mount installation design
  • -40 to +70°C operating temperature range

Description

The Westermo Ibex-RT-320 is a Wireless LAN Node for on-board and stationary applications. It ensures reliable, high-speed data for applications such as video transmission, useful for instance in train-to-ground and inter-consist communication.  The Ibex-RT-320, along with the application-specific ICL antenna, is designed to withstand the tough environment on-board trains, exposing the device to constant vibration, extreme temperatures, humidity, and a demanding electromagnetic environment.

The radio module is calibrated to ensure fast hand-off, high RF sensitivity (even at high data rates/modulations), stable RF links, optimized DFS handling, etc. A GORE-TEX® membrane prevents internal condensation. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and spikes/surge. IP66 protection prevents ingress of water and dust even at the quick connect QMA connectors.

An overall optimized design results in a compact form factor in combination with very high MTBF for easy integration and low lifecycle cost. Thorough type testing at independent labs certifies compliance to a wide range of standards, not least EN 50155, FCC, and EN 300 440 (the latter opens the possibility to use the 5.8 GHz band in the EU region). Meeting the requirements of the railcar market, the Ibex-RT-320 is very well suited for deployment in any other application with severe operating conditions and tough environments, for instance in the mining or shipping industry.



You can also find the Ibex-RT-320-HV NA, Ibex-RT-320-LV EU, and Ibex-RT-320-LV NA models in the WLAN.



You can Buy the Westermo Ibex-RT-320-HV EU Client/Bridge/Access Point via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

Interfaces
10/100/1000BaseT(X) Ports : 2 x 10/100/1000 Base-T, 2 x M12 X-coded connectors
Modulation Type -
Frequency Band 2.400 to 2.4835 GHz, 5.150 to 5.350 GHz, 5.470 to 5.725 GHz, 5.725 to 5.875 GHz
PoE Ports
100BaseFX Ports
Wireless Security WPA2 (CCMP), WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, 802.11r
WLAN Antenna Connector 3 x QMA compatible antenna connectors, 3x3 MIMO
Security SSL VPN (Client and Server), Certificate Authentication, Pre-shared Key (PSK), Point-to-Point Mode, Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Generic Routing Encapsulation (GRE)
WLAN Operation Mode Access Point, Client, Bridge, Inter-consist Link
WLAN Standards IEEE802.11b, 802.11g, 802.11a, 802.11n
1000BaseSFP Slots
Transmission Rates 802.11b: 1 Mbit/s, 2, 5.5, and 11 Mbit/s, 802.11g and 802.11a: 6 Mbit/s, 9, 12, 18, 24, 36, 48 and 54 Mbit/s, 802.11n 20 MHz BW, LGI/SGI: from MCS0 6.5/7.2 Mbit/s to MCS23 195/216.7 Mbit/s, 802.11n 40 MHz BW, LGI/SGI: from MCS0 13.5/15 Mbit/s to MCS23 405/450 Mbit/s
10/100BaseT(X) Ports
Digital Inputs
Console Port
Serial Ports
M12 Connector
Power Requirement
Input Current 0.2 A
Connector M12 A-coded male
Input Voltage 72 to 110 VDC isolated, 0.2 A max.
Power Consumption -
Reverse Polarity Protection Supported
Physical Characteristics
Humidity 5-95% relative humidity
Dimensions Packaged 176 x 52 x 110 mm (6.93 x 2.05 x 4.33 inches)
Weight (PACKAGED) 1.1 kg without antennas
Housing Full metal
Installation Screw mounting
Standards and Certifications Ingress protection: IP66; IEC 62380; Climate: EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock, EN 50125-3, Railway applications – Environmental conditions for equipment, Part 3: Equipment for signalling and telecommunications; EMC: EN 50155, Railway applications - Electronic equipment used on rolling stock, EN 50121-3-2, Railway applications – Electromagnetic compatibility, Part 3-2: Rolling stock – Apparatus, EN 50121-4, Railway applications - Electromagnetic compatibility. Part 4: Emission and immunity of the signalling and telecommunications apparatus, ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements, ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment - Part 17: Specific conditions for Broadband Data Transmission Systems; Mechanical (Shock and vibration): EN 61373, category 1, class A and B, EN 50125-3, Outside the track; Insulation (Coordination and test): EN 50124-1, Railway applications – Insulation coordination, EN 50155, Railway applications - Electronic equipment used on rolling stock; Radio communication: ETSI EN 300 328, Wideband transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques, ETSI EN 301 893, 5 GHz RLAN, IEEE802.11, Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications, FCC-47-15, Radio frequency devices, SRRC certificate (China), Radio Transmission Equipment; Safety: EN/IEC 62368-1, Safety Requirements for audio/video, information and communication technology equipment, EN 45545-2, Fire protection on railway vehicles, NFPA 130, Fire protection for fixed guideway transit and passenger rail system; Shock: IEC 60068-2-27, IEC 61373, MIL-STD-810G; Vibration: IEC 60068-2-64, IEC 61373, MIL-STD-810G
Operating Temperature -40 to +70°C (-40 to +158°F)
Storage Temperature -55 to +85°C (-67 to +185°F)
General
Management SNMP, HTTP/HTTPS with user authentication, CLI (SSH and Telnet)
LED Indicators : DC, OPR, ERR, X1, X2
MTBF 370,000 hours (IEC 62380)
Time Management -
