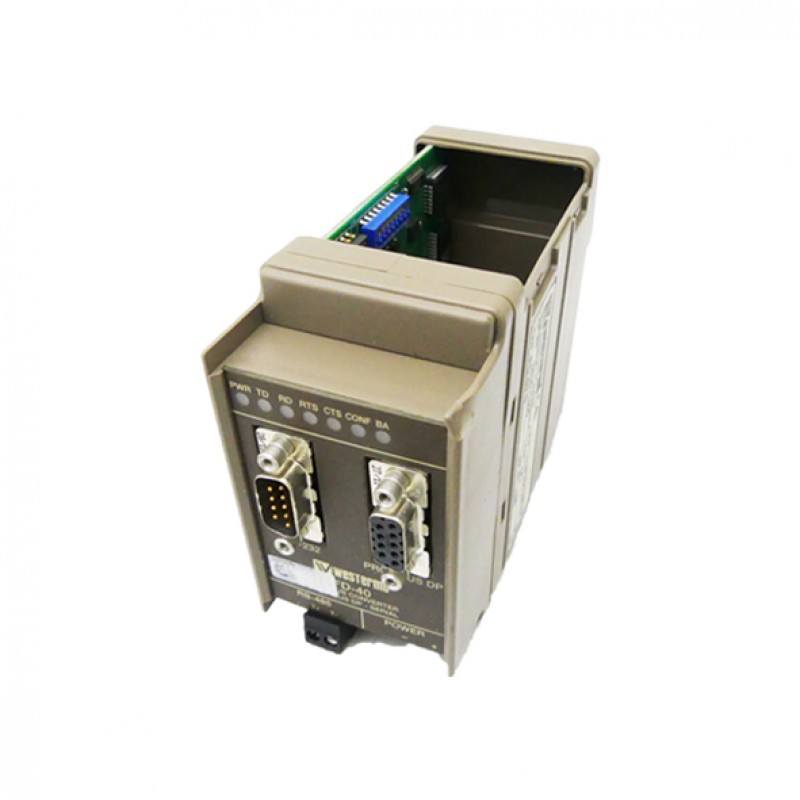

Westermo FD-40B Industrial Serial to Fieldbus Converter
- Converter RS-232 or RS-485 into PROFIBUS DP
- 1 x PROFIBUS DP (9-position D-sub, female connector)
- 1 x RS-485 (2-position screw terminal connector)
- 1 x RS-232 (9-position D-sub, DTE connector)
- 12–48 VDC input power (9.6–57.6 VDC wide range)
- 35 mm DIN-rail mount installation
- +5 to +50°C operating temperature (Industrial: –25 to +70°C)
- Brand: WESTERMO
- Product Code: 3630-1400
Description
The FD-40 Fieldbus
Converter integrates devices using the serial interfaces RS-232 or RS-485 into
PROFIBUS DP.
The FD-40 works as a
PROFIBUS DP slave and enables the utilisation of normal PROFIBUS DP I/O data
for transparent communication over a serial interface.
The FD-40 enables the integration of systems such as measuring devices, electronic scales, operator terminals, printers, identification systems, barcode readers, and other automation devices that use an RS-232 or RS-485 interface into PROFIBUS DP applications. While FD-40 has 15 kbyte input and output buffers, a huge amount of data or a high data rate can be transferred over the serial interface without disturbing the PROFIBUS DP traffic.
You can also find the other types of converters in the Converters.
You can buy the Westermo FD-40B Managed Ethernet Switch by inquiring online at a competitive price in
the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the
cost-effective shipping options at a specific time in your location.
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| Serial port | : 1 x RS-485 (2-position screw terminal connector), 1 x RS-232 (9-position D-sub, DTE connector) |
| USB | |
| Other ports | : 1 x PROFIBUS DP (9-position D-sub, female connector) |
| Isolation | |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | PROFIBUS DP: 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1 500, 3 000, 6 000 and 12 000 kbit/s; RS-485: 1 200, 2 400, 4 800, 9 600, 14 400, 19 200 and 38 400 bit/s; RS-232: 1 200, 2 400, 4 800, 9 600, 14 400, 19 200 and 38 400 bit/s |
| Maximum data transmission distance | - |
| Minimum output power converter | - |
| Sensitivity to receiving information | - |
| Wavelength | - |
| Require cable diameter | - |
| Flow Control | - |
| Protocols | PROFIBUS DP |
| Serial Signals | |
| RS-232 Signals | - |
| RS-422 Signals | - |
| RS-485-2w Signals | - |
| RS-485-4w Signals | - |
| Power Requirements | |
| Power Consumption (Output Adapter) | - |
| Power Input Plugin ( Redundant ) | - |
| Overload Current Protection | - |
| Reverse Polarity Protection | Supported |
| Input Voltage | 12–48 VDC |
| Input Current | 250 mA @ 12 V, 120 mA @ 24 V, 60 mA @ 48 V |
| Connector | Screw terminal |
| General | |
| Fan / Fanless | - |
| MTBF | - |
| Physical Characteristics | |
| Dimensions | 55 x 100 x 132 mm |
| Housing | - |
| Installation | 35 mm DIN-rail |
| Operating Temperature | +5 to +55°C (optional industrial –25 to +70°C) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Directive 89/339/EEC (Electromagnetic compatibility), EN 61000-6-2 (industrial immunity), EN 61000-6-4 (industrial emission) |
| Storage Temperature | –25 to +70°C |
| Weight | 0.3 kg |
