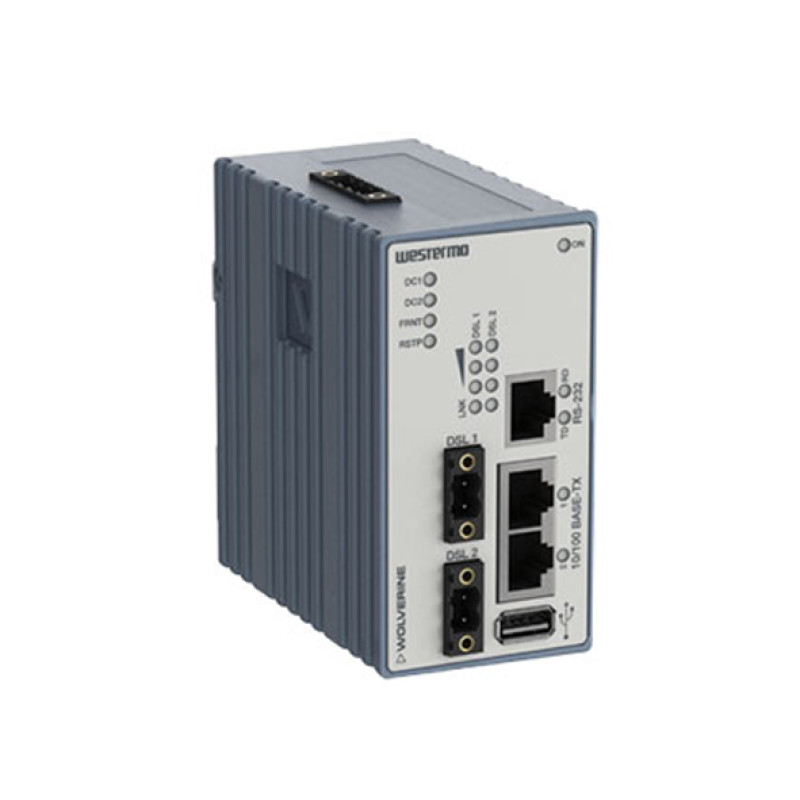

Westermo DDW-242-12VDC-BP Industrial Managed Ethernet Extender
- Advanced Industrial Managed Ethernet Extender with bypass relay
- 2 x 10 Mbit/s, 100 Mbit/s Base T Copper Ports (RJ-45 connector)
- 2 x 2-position detachable screw terminals for SHDSL ports
- 1 x RS-232 Serial port (300 bit/s – 115.2 kbit/s, RJ-45 connector)
- Robust IP40-rated Metal housing
- DIN-rail mount installation design
- 12 to 48 VDC Redundant dual input power supplies
- -40 to +74°C operating temperature range
.png)
Description
Westermo’s Ethernet extender technology, based on SHDSL, makes it possible to reuse many types of pre-existing copper cables, which can lead to considerable financial savings when installing new systems. The Wolverine DDW-242 allows effective Ethernet networks to be created over long distances (up to 15 km (9.3 mi)) at data rates up to 15.3 Mbit/s on a single twisted pair cable. By using two pairs “bonded,” this rate can be doubled up to 30.6 Mbit/s. The integral switch allows two Ethernet devices to be attached, and an RS-232 port allows for a legacy piece of equipment to be incorporated into the IP network.
Only industrial-grade components are used, which gives the Wolverine an MTBF of 437,000 hours and ensures a long service life. A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Wolverine has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.
You can also find the DDW-242, DDW-242-485, DDW-242-12VDC, and DDW-142-12VDC-BP models in the Managed Extenders.
