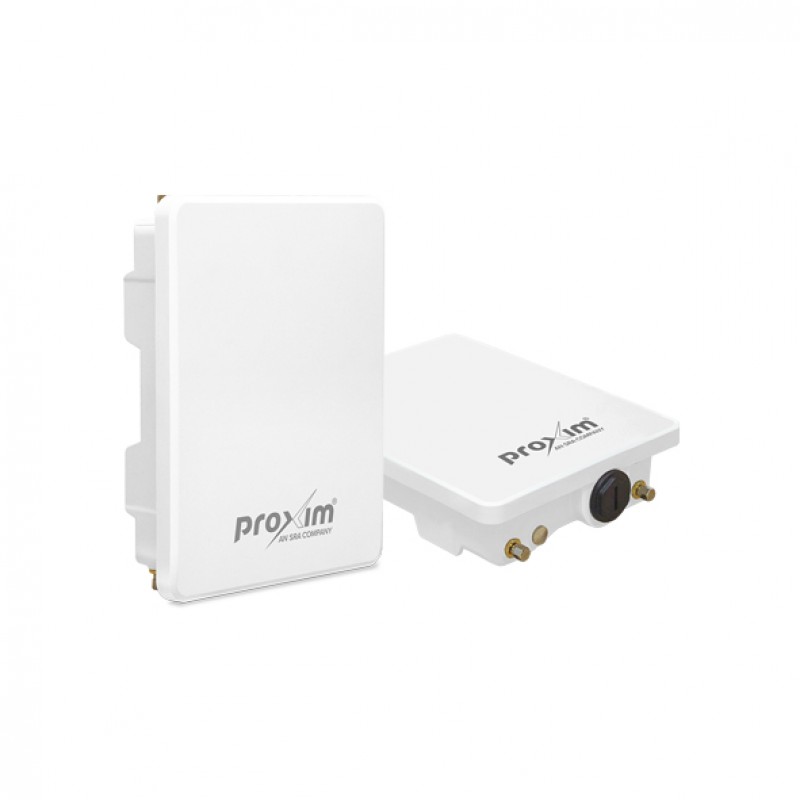

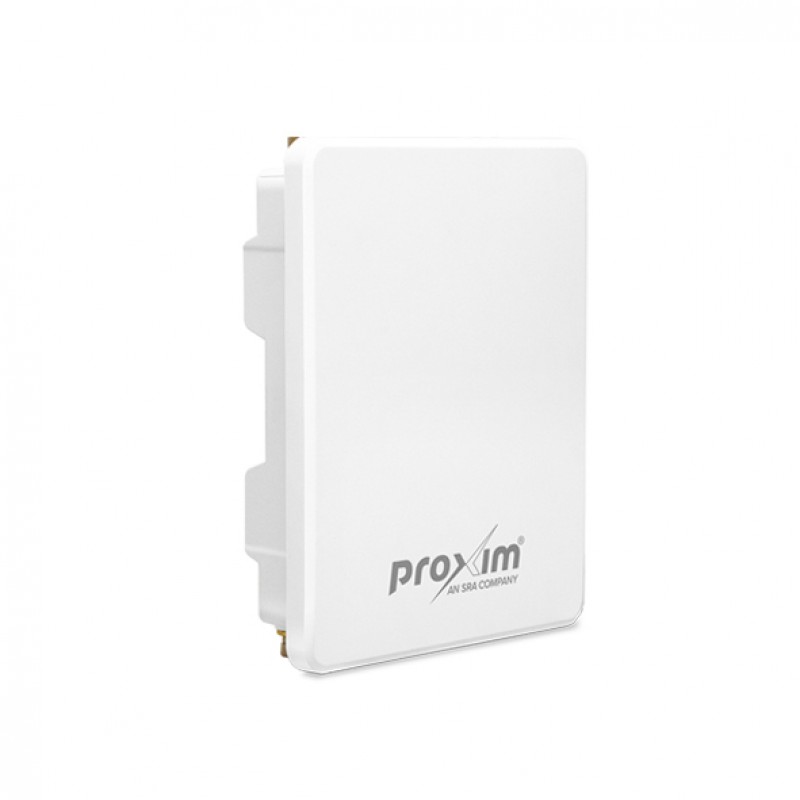

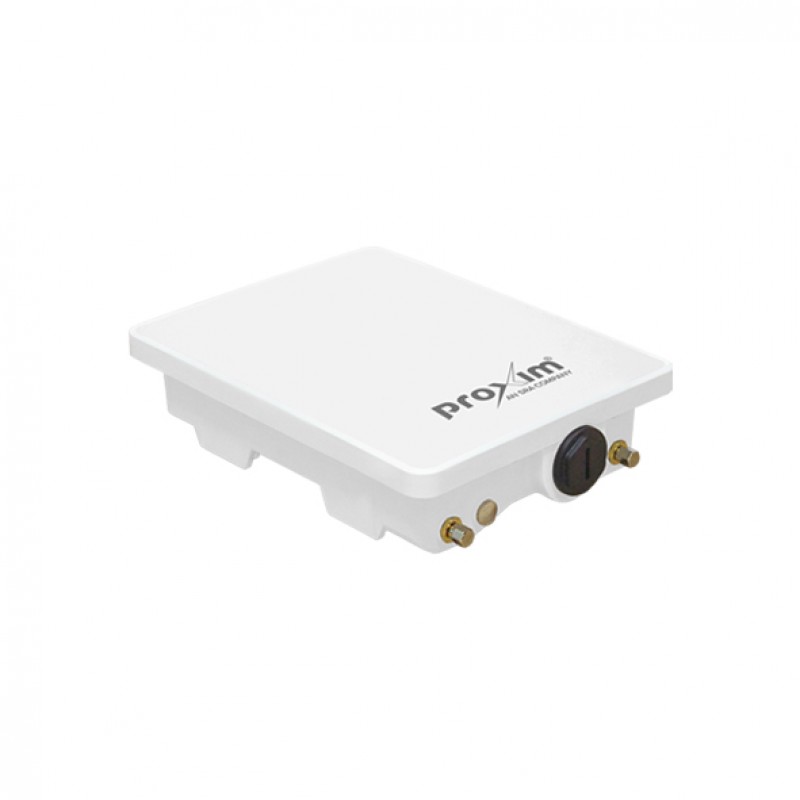

Proxim Edge Multipoint MP-1015-BS3-200-UPG Point-to-MultiPoint Radio
- Base Station, 100 Mbps to 200 Mbps license upgrade, PN: 997-00054
- 4x4 MIMO radio delivering up to 200 Mbps
- Wide Band 5 GHz Radio, AES 128 encryption, and Radius authentication
- One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in
- Advanced QoS for quad-play applications
- Full tilt and swivel mounting kit included
- Integrated 2x2 MIMO 15 dBi Dual Polarized 35 degree Panel Antenna plus Four RP-SMA Connectors
- IP67-rated metal enclosures and operate from -30° to 55°
.png)
Description
Proxim’s Edge 1015 is the most versatile small wireless
broadband solution available. One device, multiple uses: whether you need a Point-to-Point endpoint, Multipoint CPE, or MultiPoint Base Station, the Edge
1015 fits the bill.
Powered by WORP®
Proxim WORP enables the most efficient wireless broadband
access possible in a packet-based network. Advanced QoS controls, committed interface
rates, latency controls, IGMP snooping, and native multicast support allow
granular service-level management and the best video performance available in
this product class.
Advanced Interference Management
Proxim ClearConnect™ combines multiple dynamic technologies
and delivers the best interference management solution available.
Flexible Antenna Options
Includes an integrated 15 dBi 35-degree dual-polarity
antenna and offers external connectors for extended range and MIMO 4x4 configuration
options.
Smartphone Configurator
Proxim’s BlueConnect mobile app enables fast and efficient
setup, monitoring, and troubleshooting.
Rugged Reliability
IP67 rated metal enclosure to ensure years of reliable
service in harsh environments, including high winds, high salt, and temperature
extremes.
You can also find the Edge Multipoint MP-1015-BS3-32SU-UPG
and Edge Multipoint MP-1015-BS3-US models in the Edge Multipoint 1015 Series.
Easy World Automation offers the easiest way to buy the Proxim Edge Multipoint MP-1015-BS3-200-UPG Point-to-MultiPoint Radio in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Interfaces | |
|---|---|
| Ethernet | - |
| Wired Ethernet | One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in |
| Wireless Protocol | WORP® (Wireless Outdoor Router Protocol) |
| Extension | - |
| Management | - |
| Radio Specifications | |
| Radio Type | Point-to-MultiPoint |
| MIMO | 2x2:2, 4x4:2 and 4x4:4 |
| Modulation | OFDM BPSK-QAM256 |
| Frequency | 5.150 – 5.925 GHz (Subject to Country Regulations) |
| Channel Size | 20, 40, 80 MHz |
| Data Rate | - |
| TX Power | Up to 24 dBm (dual chain) or 27 dBm (quad chain) |
| TX Power Control | 0 - 21 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit |
| Throughput | Up to 100 Mbps (license upgrade to 200 Mbps) |
| Other | Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support |
| Antenna | |
| Antenna Type | Integrated 2x2 MIMO 15 dBi Dual Polarized 35 degree Panel Antenna plus Four RP-SMA Connectors |
| Beam Width | - |
| Receive Gain | - |
| Transmit Gain | - |
| Network | |
| Modes | Bridging, Routing (RIP v2 and IP tunneling) |
| IP Stack | IPv4 and IPv6 simultaneously |
| Latency | Supported |
| VLAN | 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging |
| Gateway Features | DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS |
| Management | |
| Remote | Telnet and SSH, Web GUI and SSL/TLS1.2, TFTP, SNMPv3 |
| SNMP | SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB |
| Bluetooth Low Energy | - |
| Multi-Language Support | Web Interface available in English, French, Spanish and Chinese |
| Other | Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer |
| Security | |
| Encryption | AES 128 |
| Authentication | Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning) |
| 802.1X Support | - |
| Wireless | |
| AP-AP Communications | - |
| RF Environment | - |
| Other | - |
| General | |
| MTBF | >250 000 hours, 2-year warranty, ServPak Extended Support available. |
| Power Requirement | |
| Input Power | - |
| Output Power | - |
| Power Consumption | 10 W typical, 12 W max in MIMO 2x2 mode, 22 W typical, 25 W max in MIMO 4x4 mode |
| Power Standards | 802.3af/at compliant (MIMO 4x4 mode requires 802.3at) |
| Physical Characteristics | |
| Temperature | OPERATING: -30° to 55° Celsius (-22° to 131° Fahrenheit), Temporary increases up to 60ºC (140º Fahrenheit) will not impact operation of the unit; STORAGE: -50º to 70º Celsius (-58º to 158º Fahrenheit) |
| Humidity | 100% relative humidity |
| IP Rating | IP67 |
| Dimensions Packaged | 310 x 226 x 98 mm (12.2 x 8.9 x 3.85 in) |
| Dimensions Unpackaged | 170 x 217 x 56 mm (6.7 x 8.55 x 2.2 in) |
| Weight (PACKAGED) | 5.84 lbs (2.65 kg) |
| Weight (UNPACKAGED) | 2.73 lbs (1.24 kg) |
| Standards and Certifications | FCC part 15B class B (EMC), part 15C (Bluetooth) and part 15E (5 GHz radio) |
| Safety | IEC 62368-1:2014 & 60950-22:2016., UL 62368-1, 2nd Ed. & 60950-22, 2nd Ed. |
| Wind Loading | 112.5 mph (180 km/h) |
| Standards and Protocols | |
| Synchronization | - |
| Package Checklist | |
| Package Contents | One Edge MP-1015-BS3 with integrated antenna plus four RP-SMA connectors, Five SMA weather proofing caps, One M25 weather proofing cable gland,One power injector and country specific power cord, One full axis mounting kit, One Grounding kit, One Quick Installation Guide |
