Westermo Oryx-7321-T1G10-OB-3P mmWave Onboard Rail Node

Data rates up to 3 Gbps per radio, Frequency range 57 to 71 GHz
Supports train speeds up to 500 kmph, Typical range of 1 Gbps at 1 km
1 x 10 GBASE-T Ethernet Port
2 x Phased array antennas for 57-71 GHz with data rates up to 3 Gbps
Supports IEEE 802.11ad standard
20 to 48 VDC input power range (Nominal Voltage 36 VDC)
IP54/IP66-rated Metal body material
-25 to +45°C operating temperature (up to +55°C with reduced performance)

Brand: WESTERMO
Product Code: 3623-73210

Datasheet

Tags: Industrial Routers , Wireless & Cellular Routers , mmWave Onboard Rail Node , mmWave Node , Onboard Rail Node , Rail Node , Wireless Communications , Industrial Wireless AP/Bridge/Client , WLAN APs/Bridges/Clients , Industrial Data Communications , Access Point , Railway Transportation Products , Westermo Oryx-7321

Description

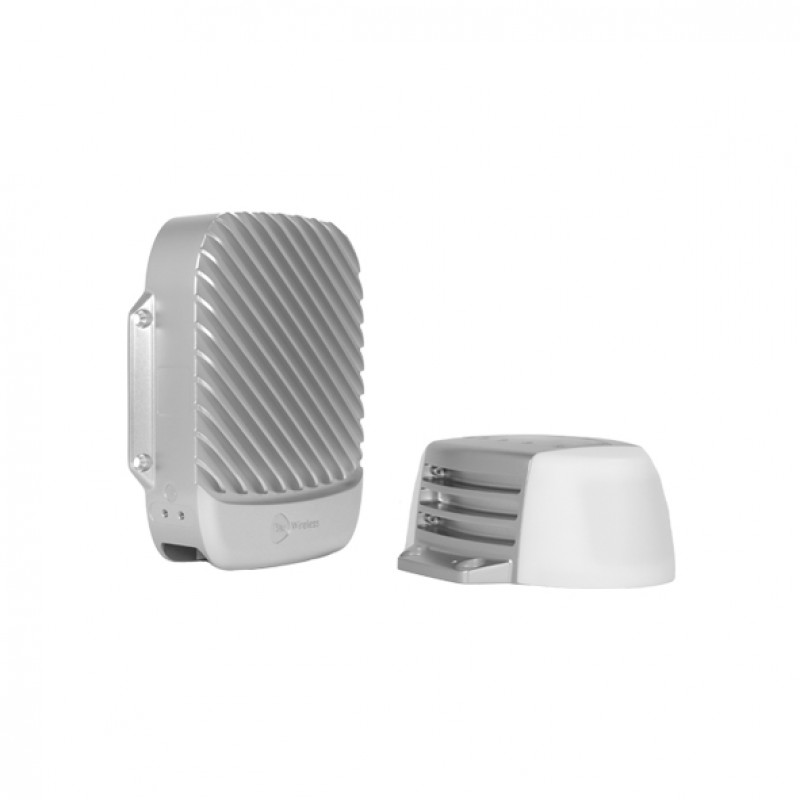

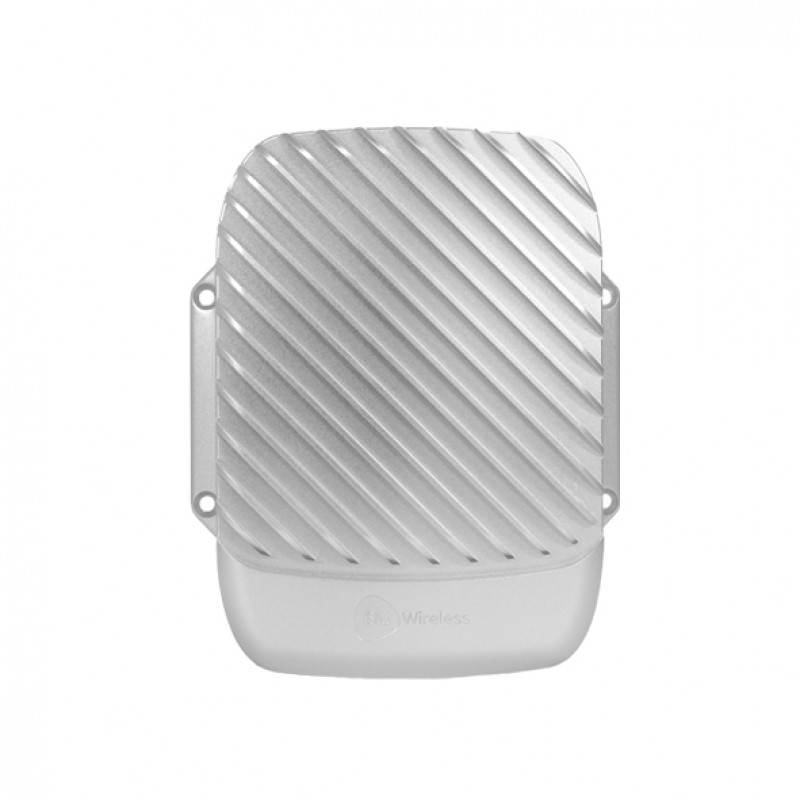

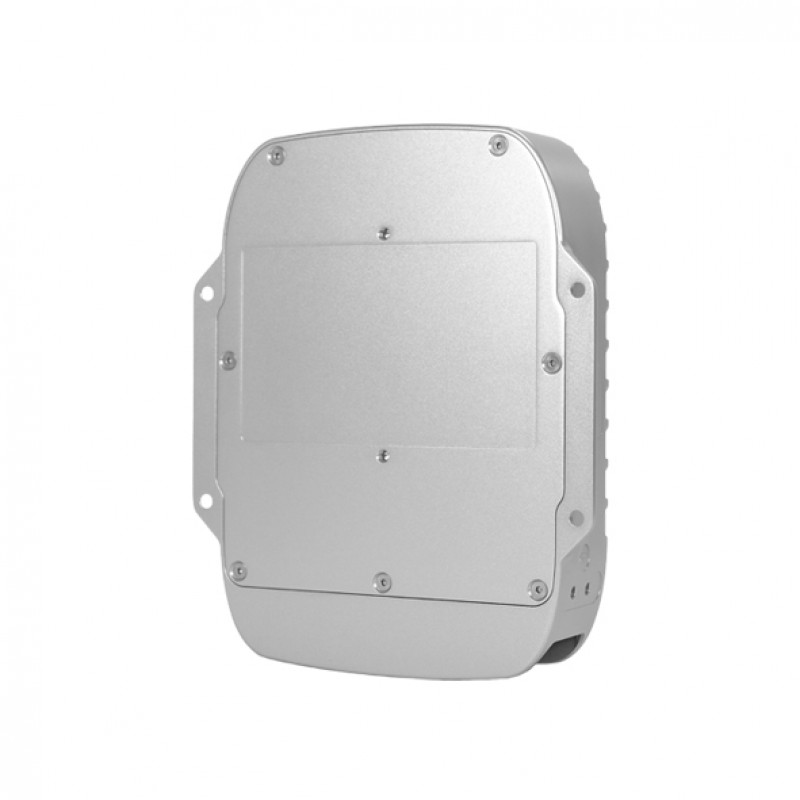

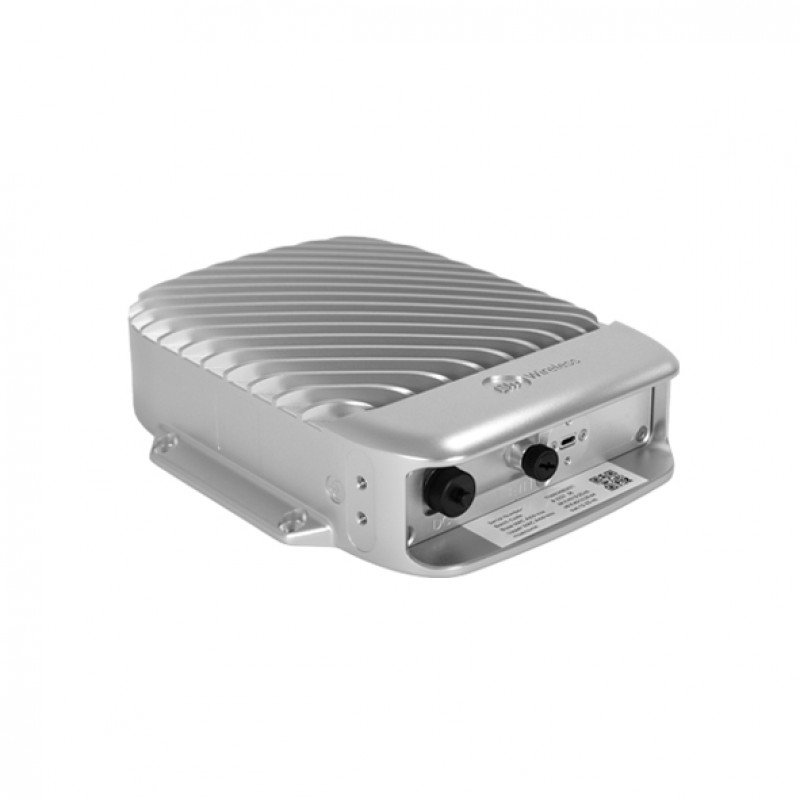

Westermo’s mmWave solution for high-speed transport provides continuous, on-the-move multi-gigabit connectivity between trackside and train for on-board services including Passenger Internet Access, CCTV upload, and data exchange. The Oryx-7321 node is qualified for onboard deployment with extended service life and low maintenance. This node comes with three units. A train top unit, a cable, and an in-train CPU. The compact Oryx-7321 is EN 50155 certified for onboard installation.

The Oryx-7321 onboard unit works together with the Oryx-7322 trackside unit to form a multi-gigabit link between the train and trackside. Both feature two radios which work together to maintain an aggregated data throughput of between 1-4 Gbps per train, continuously and at speed.

Trackside and train units include the RWM6050 dual modem IC with HYDRA technology developed by Blu Wireless, two-sector electronic phased array antennas operating in 60 GHz unlicensed spectrum, and a quad-core ARM Network Processor. The units support flexible network and edge application configuration in a standard and secure Linux environment. The Oryx-7321 is equipped with the latest cybersecurity features and updates. The links have AES128 encryption in the nominal configuration and AES256 in the extended range configuration.

You can also find the Oryx-7322-T1G10-F1G10-TS-1P and Oryx-7322-F1G10-TS-1 models in the WLAN.

Enjoy the ease of online inquiries for the Westermo Oryx-7321-T1G10-OB-3P mmWave Onboard Rail Node. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interfaces
10/100/1000BaseT(X) Ports
Modulation Type	BPSK, QPSK, 16QAM
Frequency Band
PoE Ports
100BaseFX Ports
Wireless Security
WLAN Antenna Connector	2 x phased array antennas for 57-71 GHz with data rates up to 3 Gbps
WLAN Operation Mode	Access Point, mmWave Trackside Rail Node
WLAN Standards	IEEE 802.11ad
1000BaseSFP Slots
Transmission Rates	Typical range (nominal configuration): 1 Gbps at 1 km (dry) and 1 Gbps at 650 m (wet Zone F rain fade), Extended range adds +40 % range for 50 % of data rate
10/100BaseT(X) Ports
Digital Inputs
Console Port
Serial Ports
M12 Connector
Other Ports	: 1 x 10 GBASE-T Ethernet Port
Power Requirement
Input Current	-
Connector	-
Input Voltage	20 to 48 VDC (Nominal voltage: 36 VDC)
Power Consumption	40 W nominal (70 W max.)
Reverse Polarity Protection	-
Physical Characteristics
Humidity	-
Dimensions Packaged	NPU (in-train): 28 x 250 x 205 mm (1.10 x 9.84 x 8.07 inches), Radio head (train-top): 200 x 155 x 75 mm (7.87 x 6.10 x 2.95 inches), Cable: 2 m (78.72 inches)
Weight (PACKAGED)	NPU (in-train): 3.0 kg, Radio head (train-top): 2.3 kg
Housing	Full metal (type)
Installation	-
Standards and Certifications	Ingress protection (TN001XC): IP54, TN201SP: IP66; Conformity: CE, FCC, EN 50155; Radio regulatory approvals: US FCC Part 15.255 and EU Radio Equipment Directive (RED)
Operating Temperature	-25 to +45°C up to +55°C with reduced performance (-13.0 to +131.0°F)
Storage Temperature	-
General
Management	Link Management: Mobile Connection Manager for wireless link management
LED Indicators	-
MTBF	TN201SC: 100k hours (15.2 years, according to 75 % duty cycle in mission profile); Note that MTBF varies with the assumed ambient temperature. We reference EN50125-1:2014, which indicates 25 °C should be used for all temperature classes for MTBF (section 4.3).
