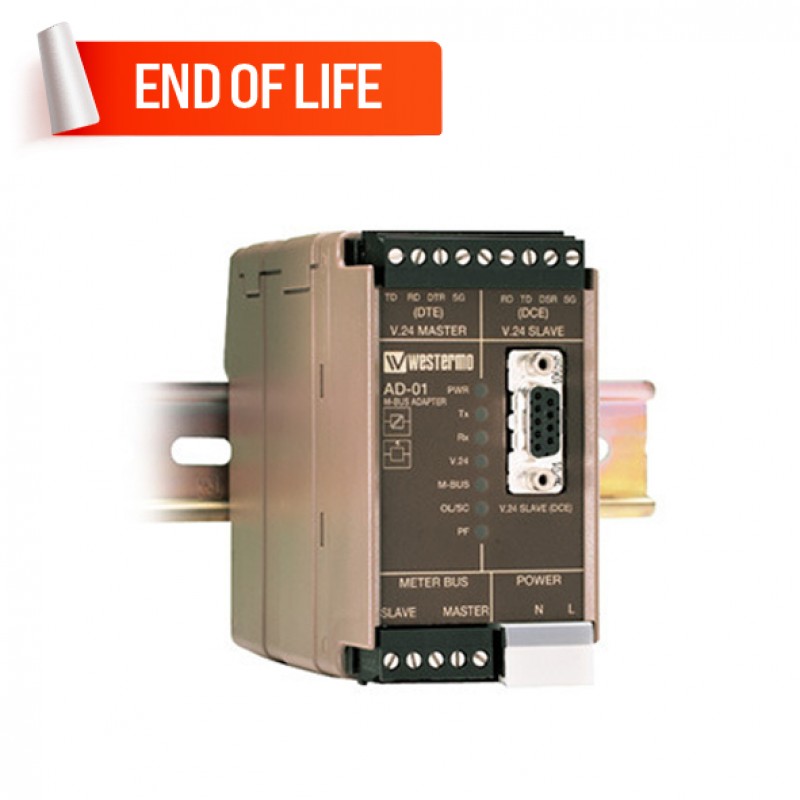

Westermo AD-01 Modbus Converter/Repeater/Controller
- Converter between RS-232 and M-Bus
- M-Bus Repeater / Zone Controller
- Two M-Bus interface configure options master or slave
- 1 x RS-232/V24 (master or slave), Up to 9600 bit/s
- 207 – 253 VAC operating voltage range
- IP20-rated PC / ABS body material design
- 35 mm DIN-rail mount installation
- 0 to +50°C operating temperature range
Description
The AD-01 is an M-Bus adapter that can operate in different
communication modes. With the AD-01 it is possible to connect standard RS-232
equipment to an M-bus network. When using the AD-01 as a repeater 120 new
slaves can be added to a network. In large networks the AD-01 can be used as
zone controller, the RS-232 port and M-bus slave ports can then be
activated/deactivated by M-Bus commands.
The AD-01 is designed for use in heavy duty industrial
applications. Galvanic isolation between all interfaces guarantees
communication in the worst environments. The AD-01 has been tested to meet many
EMC, isolation, vibration and shock standards, all to the highest levels
suitable for heavy industrial environments.
DIP switches are used for all configuration options, parts
of the M-Bus protocol is also implemented in case software configuration is
needed. The AD-01 is an industrial adapter for M-Bus communication. AD-01 is a
flexible product for the building of M-Bus networks or to extend an M-bus
network over a modem or ISDN.
End of Life Product - No Replacement
Please note that the AD-01 has been phased out. You can explore
other types of converters in the Converters.
Experience the convenient way to purchase the Westermo AD-01 Modbus Converter/Repeater/Controller in
the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales
experts will provide the most helpful information about the price and sale
conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| M-Bus | M-Bus according to EN1434-3, Up to 9600 bit/s, Master: Up to 120 slave loads, Slave: Maximum 2 slave loads, 5-position screw terminal |
| RS-232/V24 | RS-232/V.24, Up to 9600 bit/s, Master: 9-position screw terminal (DTE), Slave: 9-position screw terminal (DCE), 9-position D-sub (DCE) |
| Data rate | M-Bus (slave / master), Serial RS-232/V24 (slave / master) : Up to 9600 bit/s |
| Connection | 3-position screw terminal |
| Power Requirements | |
| Rated voltage | 230 V AC ±10% |
| Operating voltage | 207 – 253 VAC |
| Rated current | 150 mA @ 230 VAC |
| Connection | M-Bus (slave/master): 5-position screw terminal; Serial RS-232/V24 (slave/master): 9-position screw terminal (DCE) and 9-position D-sub (DCE) |
| Physical Characteristics | |
| Dimension | 55 x 100 x 132 mm (2.16 x 3.93 x 5.19 in) |
| Weight | 0.9 kg |
| Operating temperature | 0 to +50°C (32 to +122°F) |
| Housing | PC / ABS |
| Storage temperature | –25 to +70°C (–13 to +158°F) |
| Ambient Relative Humidity | 5 to 95% relative humidity |
| Mounting | Horizontal on 35 mm DIN-rail |
| Standards and Certifications | EMC: SS-EN 61000-6-2/SS-EN 61000-4-11, SS-EN 61000-6-2/SS-EN 61000-4-2: 4 kV CD, 8 kV AD, SS-EN 61000-6-2/SS-EN 61000-4-5: 2 kV power, 1 kV signals, SS-EN 61000-6-2/SS-EN 61000-4-4: 2 kV power, 1 kV signals, SS-EN 61000-6-2/SS-EN 61000-4-6: 10 V/m, SS-EN 61000-6-2/SS-EN 61000-4-3: 10V/m, SS-EN 50081-1/SS-EN 55022 class B; Safety: EN 60950 |
