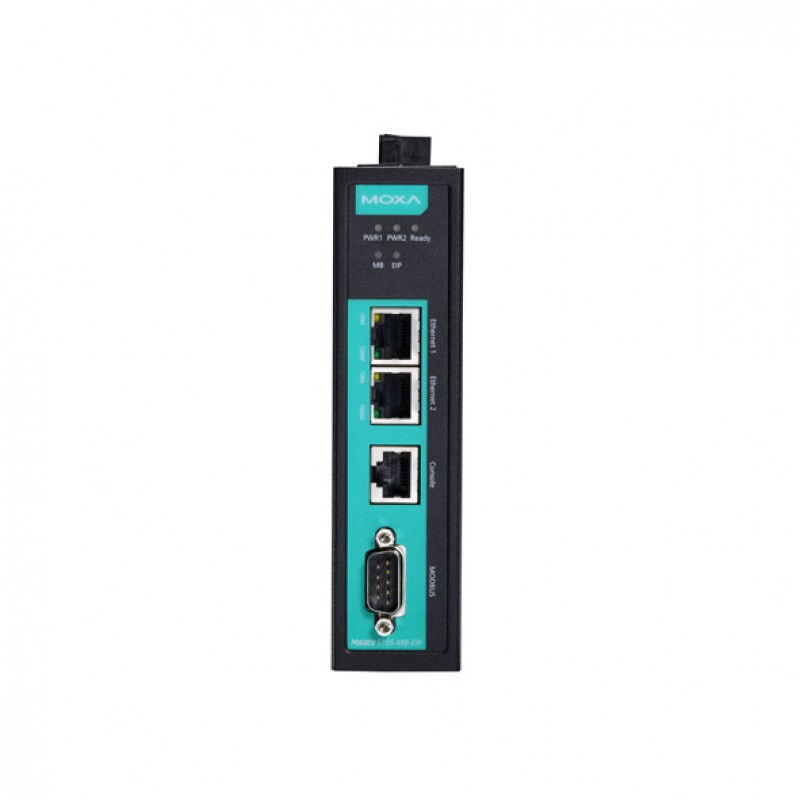

MOXA MGate 5105-MB-EIP Industrial Ethernet Gateway

  • Converts Modbus RTU/ASCII/TCP to EtherNet/IP
  • Supports MQTT connection
  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 1 x RS-232/422/485 Serial port (DB9 male connector)
  • 2 KV Isolation protection for serial port
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated Metal body design
  • 0 to 60°C operating temperature

Description

The MGate 5105-MB-EIP is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communications with IIoT applications, based on MQTT or third-party cloud services, such as Azure and Alibaba Cloud. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5105-MB-EIP as a Modbus master or slave to collect data and exchange data with EtherNet/IP devices. The latest exchange data will be stored in the gateway as well. The gateway converts stored Modbus data into EtherNet/IP packets so the EtherNet/IP scanner can control or monitor Modbus devices. The MQTT standard with supported cloud solutions on the MGate 5105-MB-EIP leverages advanced security, configuration, and diagnostics to troubleshoot technologies to deliver scalable and extensible solutions that are suitable for remote monitoring applications such as energy management and assets management.


You can also find the MGate 5105-MB-EIP-T model in the Industrial Ethernet Gateways.


Easy World Automation offers the easiest way to buy the MOXA MGate 5105-MB-EIP Industrial Ethernet Gateway in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
10/100Mb RJ45 (Megabit) Ports : 2 Ports (Auto MDI/MDI-X connection)
Magnetic Isolation Protection 1.5 kV (built-in)
Other ports
Protocols Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Scanner, EtherNet/IP Adapter, MQTT; Serial: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
Serial port specifications
Number of Ports 1 Port
Console Port : RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Connectors DB9 male
Serial Standards RS-232/422/485
Isolation : 2 kV (built-in)
Serial Communication Parameters
Data Bits 7, 8
Stop Bits 1, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS Toggle (RS-232 only), RTS/CTS
Baudrate 50 bps to 921.6 kbps
Serial Signals
RS-232 Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals Data+, Data-, GND
RS-485-4w Signals Tx+, Tx-, Rx+, Rx-, GND
General
Management ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MTBF 859,422 hrs
Memory
microSD Slot : Up to 32 GB (SD 2.0 compatible; Data buffering up to 2 GB)
Power Requirements
Input Current 455 mA @ 12 VDC
Input Voltage 12 to 48 VDC (Redundant dual power inputs)
Power Connector Screw-fastened Euroblock terminal
Security
Security Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)
Authentication Local database
Encryption HTTPS, AES-128, AES-256, SHA-256
Physical Characteristics
Dimensions 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 508; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332
Housing Metal
Operating Temperature 0 to 60°C (32 to 140°F)
Weight 507 g (1.12 lb)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Installation DIN-rail mounting
