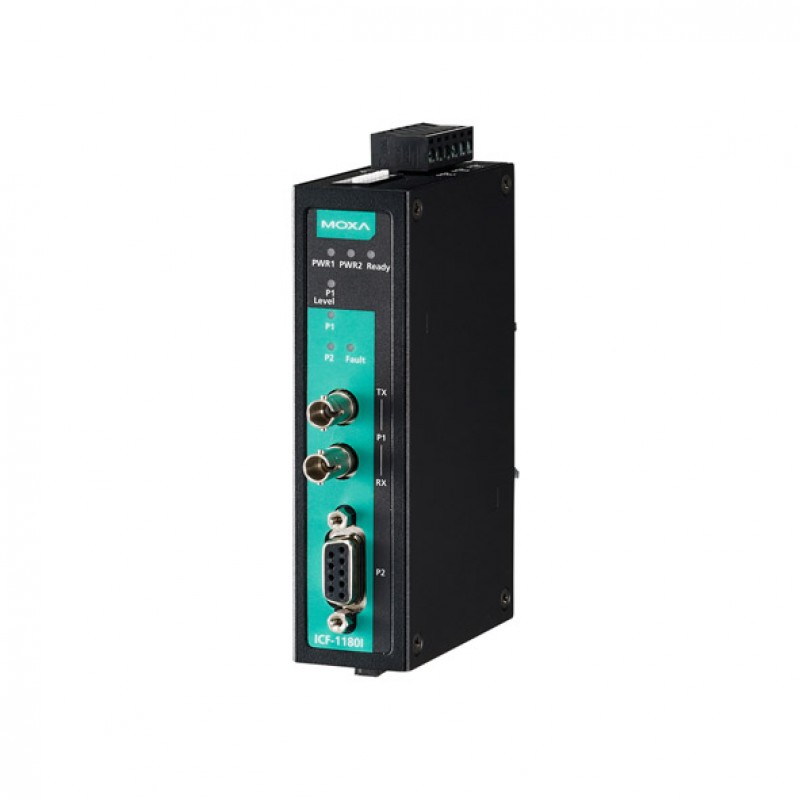

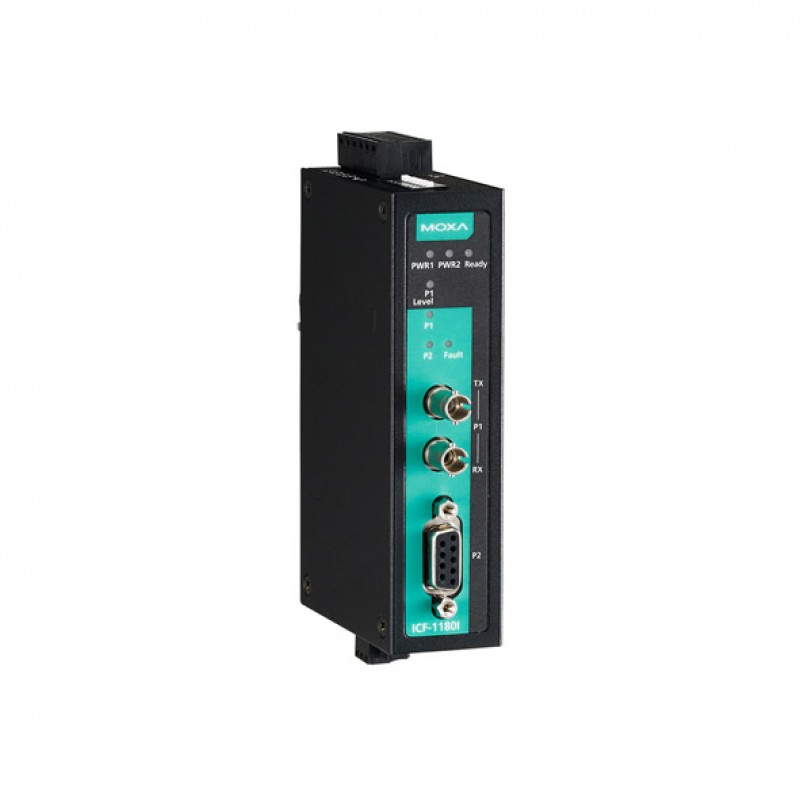

MOXA ICF-1180I-S-ST-T PROFIBUS to Fiber Converter
- PROFIBUS to multi-mode ST fiber-optic converter
- 1 x PROFIBUS Port (DB9 female connector)
- 1 x 100BaseFX port (single-mode ST connector)
- 45 KM Typical data transmission distance on fiber
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- DIN-rail and Wall mounting
- -40 to 75°C operating temperature
- Brand: MOXA
- Product Code: ICF-1180I-S-ST-T
.png)
Description
The ICF-1180I industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. The converters are used to extend serial transmission up to 4 km (multi-mode fiber) or up to 45 km (single-mode fiber). The ICF-1180I provides 2 kV isolation protection for the PROFIBUS system and dual power inputs to ensure that your PROFIBUS device will perform uninterrupted.
You can also find the ICF-1180I-S-ST, ICF-1180I-M-ST-T, and ICF-1180I-M-ST models in the Protocol Converters.
Explore our extensive range of
industrial automation products such as MOXA ICF-1180I-S-ST-T PROFIBUS to Fiber Converter in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 ST Port |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| Serial port | |
| Other ports | : 1 x PROFIBUS Port (DB9 female connector) |
| Isolation | : 2 KV |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | 9600 bps to 12 Mbps |
| Maximum data transmission distance | 45 Km on fiber |
| Minimum output power converter | -7 dBm |
| Sensitivity to receiving information | -29 dBm |
| Require cable diameter | - |
| Flow Control | - |
| Protocols | PROFIBUS DP |
| Serial Signals | |
| RS-232 Signals | - |
| RS-422 Signals | - |
| RS-485-2w Signals | - |
| RS-485-4w Signals | - |
| Power Requirements | |
| Power Consumption (Output Adapter) | 269 mA @ 12 to 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Input Voltage | 12 to 48 VDC |
| Input Current | 269 mA @ 12 to 48 VDC |
| Connector | Terminal block |
| General | |
| Fan / Fanless | - |
| MTBF | 1,722,769 hrs |
| Physical Characteristics | |
| Dimensions | 30.3 x 115 x 70 mm (1.19 x 4.53 x 2.76 in) |
| Housing | Metal |
| Installation | DIN-rail mounting (with optional kit), Wall mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35;EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Hazardous Locations: ATEX, Class I Division 2, IECEx; Maritime: DNV; Safety: IEC 60950-1, UL 508; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | - |
| Weight | 180 g (0.39 lb) |
| LED Indicators | |
| LED Per Port | |
| Power | |
