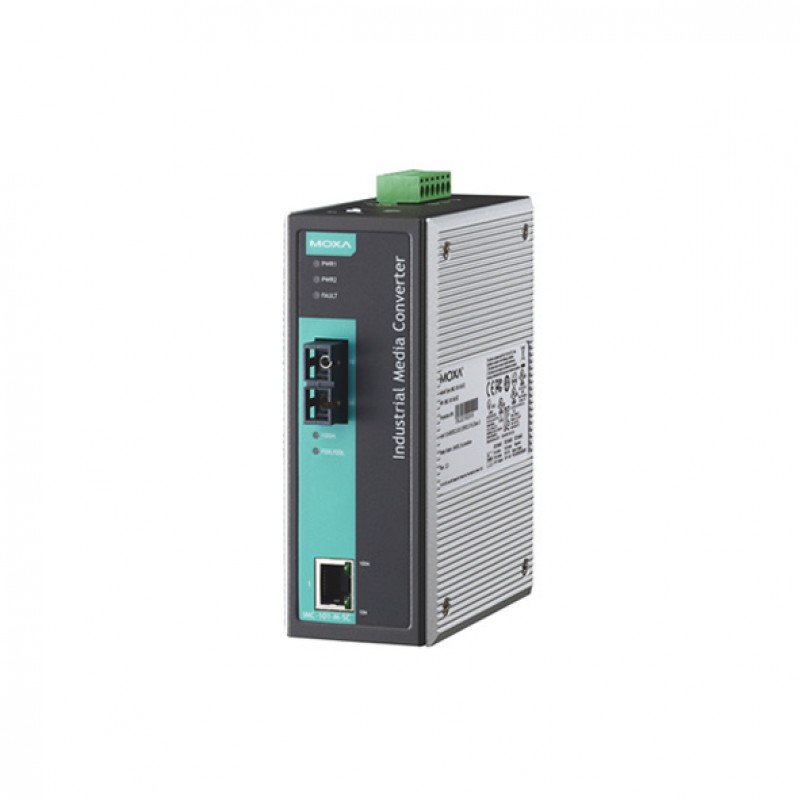

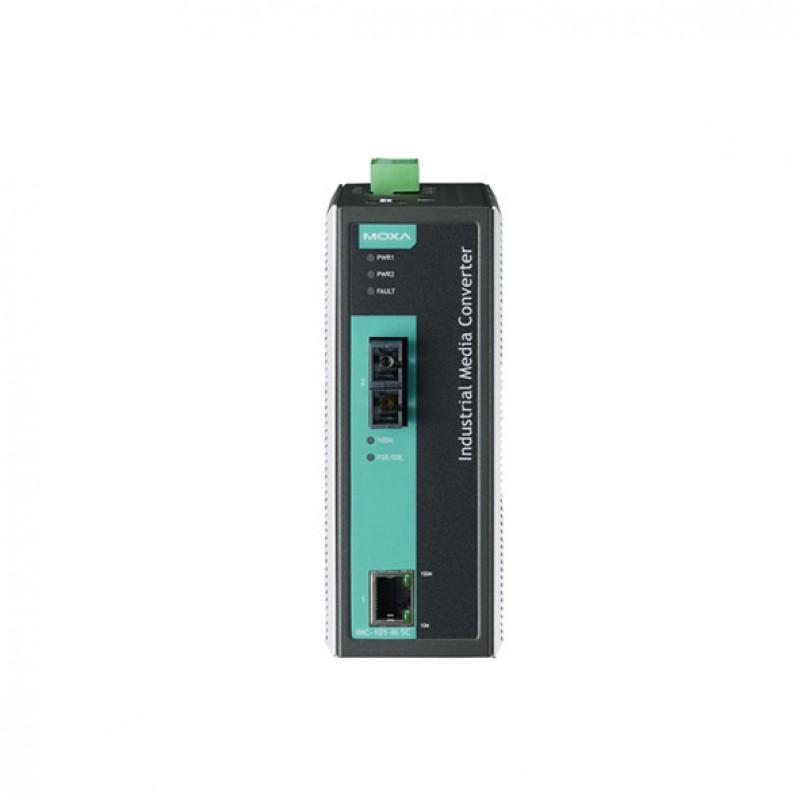

MOXA IMC-101-S-SC-80-T Ethernet to Fiber Converter
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x 100BaseFX Port (single-mode SC connector)
- 80 KM Typical data transmission distance on fiber
- 12 to 45 VDC input power range
- IP30-rated Metal body design
- DIN-rail mounting
- -40 to 75°C operating temperature
- Brand: MOXA
- Product Code: IMC-101-S-SC-80-T
.png)
Description
The IMC-101 industrial media converters provide
industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST
connectors). The IMC-101 converter’s reliable industrial design is excellent
for keeping your industrial automation applications running continuously, and
each IMC-101 converter comes with a relay output warning alarm to help prevent
damage and loss. The IMC-101 media converters are designed for harsh industrial
environments in hazardous locations (Class 1, Division 2/Zone 2, IECEx, DNV,
and GL Certification) and comply with FCC, UL, and CE standards. Models in the
IMC-101 Series support operating temperature from 0 to 60°C, and an extended
operating temperature from -40 to 75°C. All IMC-101 converters are subjected to
a 100% burn-in test.
You can also find the IMC-101-S-SC-T, IMC-101-S-SC-T-IEX, and IMC-101-S-SC models in the Industrial Media Converters.
You can Buy the MOXA IMC-101-S-SC-80-T Ethernet to Fiber Converter via inquiring online at a competitive
price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Enjoy the cost-effective shipping options at a specific time in your location.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 1000Mb Fiber optic multi mode (Gigabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 SC Port |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | |
| Alert Output | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards and protocols | |
| Protocols and work standards | - |
| General | |
| Maximum cable length for data transfer | 80Km on the fiber |
| MTBF | 401,000 hour |
| Power Requirements | |
| Input Voltage | 12 to 45 VDC |
| Input Current | 200 mA @ 12 to 45 VDC |
| Overload Current Protection | Supported |
| Type of power input | Terminal block |
| Power Consumption | 200 mA @ 12 to 45 VDC |
| Physical Characteristics | |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2; Maritime: DNV; IP30; MIL-HDBK-217F |
| Housing | Metal |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 630 g (1.39 lb) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
