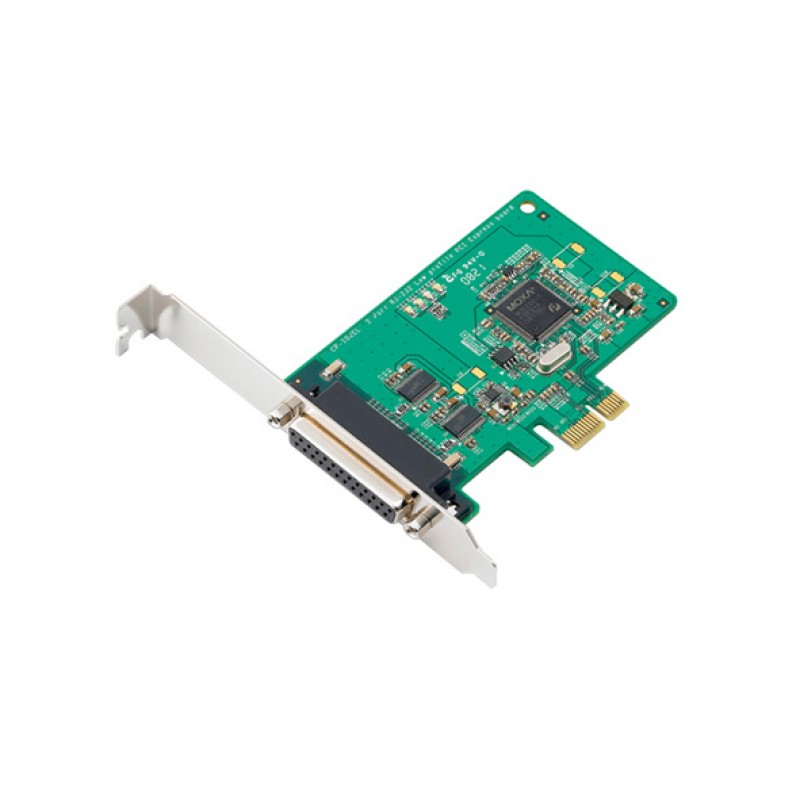

MOXA CP-102EL-DB9M PCI Express Serial Board
- 2 x RS-232 Serial Ports (DB25 female connector)
- Supports maximum 921.6 kbps baud rate
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible Drivers with Windows, Linux, and UNIX
- Included Cable: CBL-M25M9x2-50
- 0 to 55°C operating temperature
Description
The CP-102E and low-profile CP-102EL are 2-port PCI Express boards designed for POS and ATM applications. Moxa’s PCI Express boards are a top choice of industrial automation engineers and system integrators, particularly since the boards support many different operating systems, including Windows, Linux, and UNIX. The CP-102E/EL’s 2 RS-232 serial ports support a fast 921.6 kbps baud rate and provide full modem control signals to ensure compatibility with a wide range of serial peripherals. In addition, the boards’ x1 classification allows them to be installed in any PCI Express slot.
Smaller Form Factor
The CP-102EL is a low-profile board that is compatible with any PCI Express slot. The CP-102EL board only requires a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.
You can also find the CP-102E model in the Multiport Serial Cards.
Enjoy the ease of online inquiries for the MOXA CP-102EL-DB9M PCI Express Serial Board. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | MU860 (16C550C compatible) |
| Number of Ports | 2 Ports |
| Bus interface | PCI Express 1.0 |
| Serial Standards | RS-232 |
| Connector | DB25 female |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Max. No. of Boards per PC | 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, None |
| Data Bits | - |
| FIFO | 128 bytes |
| Isolation | |
| SERIAL SIGNALS | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
| POWER REQUIREMENTS | |
| Input Current | 552 mA @ 3.3 VDC |
| Input Voltage | - |
| GENERAL | |
| MTBF | 4,947,552 hrs |
| LED Indicators | Built-in Tx, Rx LEDs for each port |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 67.21 x 100 mm (2.65 x 3.94 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
