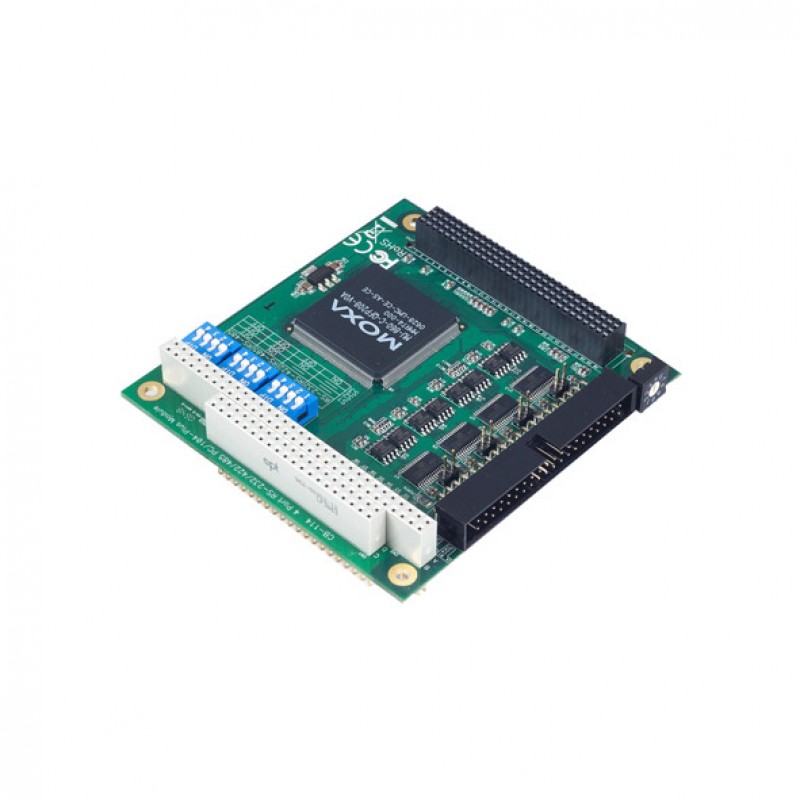

MOXA CB-114 Serial Module Board
- 4 x RS-232 Serial ports (40-pin box header connector)
- Supports maximum 921.6 kbps baud rate
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible drivers with Windows, Linux, and UNIX
- 5 VDC input power range
- 0 to 55°C operating temperature
Description
The CB-114 PC/104-Plus modules come with 4 RS-232/422/485 ports and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-114 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.
You can also find the CB-114-T model in the Multiport Serial Cards.
Experience the convenient way to purchase the MOXA CB-114 Serial Module Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C or compatible x 4 |
| Number of Ports | 4 Ports |
| Bus interface | PC/104 plus bus |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | 40-pin box header |
| Baudrate | 50 bps to 921.6 kbps |
| Max. No. of Boards per PC | 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| Isolation | |
| SERIAL SIGNALS | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x |
| UNIX Drivers | QNX 6, Solaris 10, UnixWare 7 |
| POWER REQUIREMENTS | |
| Input Current | 164 mA @ 5 VDC |
| Input Voltage | 5 VDC |
| GENERAL | |
| MTBF | 381,081 hrs |
| LED Indicators | Built-in Tx, Rx LEDs for each port |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 90 x 96 mm (3.54 x 3.78 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3, IEC 60068-2-14; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
