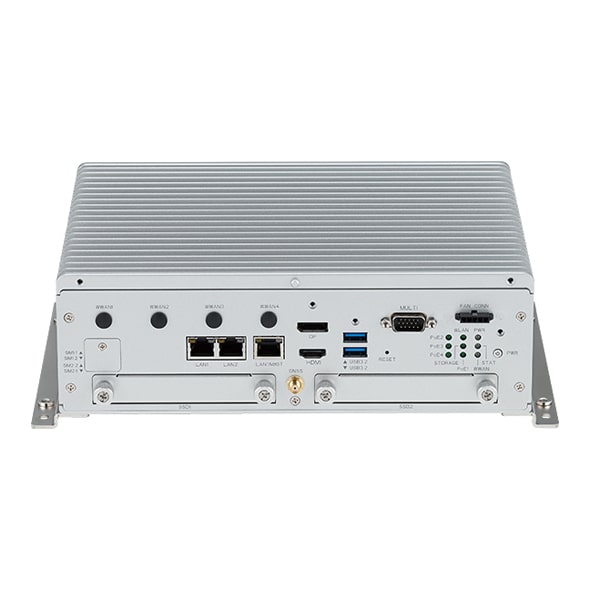

Nexcom VTC 7270 Fanless Vehicle Computer
- Powered by 12/13th Gen Intel® Core™ i with DDR5, excellent memory bandwidth, lower latency
- Rich I/Os, 2 x 2.5GbE, 1 x GbE, 6 x USB 3.2, 2 x CAN FD & 4 x Serials, (optional: w/ 4 extra 2.5 GbE PoE)
- 2 x 2.5” SSD, 1 x NVMe ultra-speed SSD for data integrity
- Up to 4 WWAN/WLAN combinations for mobile router applications
- Up to two Hailo AI accelerator (26TOPS workload each) computing power as optional
- 9~36V DC-IN with ignition control & OCP/OVP
- Wide range operating temperature of -35°C~70°C (fanless@35W CPU)
- The military standard for anti-vibration/shock
- CE/FCC, UKCA, Emark Certified
Description
The VTC 7270 is an AI-powered in-vehicle telematics computer
featured with Intel® 12/13th Gen processor to perform 30% more computing power
than its predecessor. Its 10-year lifespan support can fulfill any in-vehicle
applications such as fleet management, logistics/AMR, ITS, constructions, ANPR, security surveillance of public transportation, and more.
With its compact, rugged, and fanless design, the VTC 7270
can be widely installed in limited space, withstand harsh environments, and
significantly reduce maintenance costs for 24/7 operating time. Additionally,
the VTC 7270 features various peripherals, including 2.5GbE, 6 USB 3.2, 2
isolation CAN FD, 4 serial ports, NVMe storage, 5 extension slots, triple
displays, and a wide-range 9~36VDC with IGN control, making it a sophisticated
AI-aided telemetric computer.
To work as the edge AI, the user can install LTE/5G modems, Wi-Fi 5/6 modules, and one or two Hailo AI accelerators (26TOPS) to deploy AI services collaborating with cloud SaaS. Moreover, the VTC 7270 can operate in harsh environments with temperatures ranging from -35°C to 70°C and comply with MIL-STD-810H military standards for vibration and shock resistance. For regulation compliance, the VTC 7270 complies with CE/FCC classA, UKCA, and Emark (E13).
You can place an order for the Nexcom VTC 7270 Fanless Vehicle Computer, which is applicable in the Road Transportation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| General | |
|---|---|
| CPU | 12/13th Gen Intel® Core™ i, Intel® R680E chipset Graphics: - Intel® UHD Graphics 770, 1.55GHz - Max resolution: 4096 x 2160@60Hz (HDMI) - DirectX: 12, OpenGL: 4.5 |
| Memory | 2 x SO-DIMM, DDR5-4800MHz ECC & dual-channel support |
| Expansion Slots | 1 x mPCIe slot (PCIe 3.0, SATA 3.0, USB 2.0), Wi-Fi (default), optional for mSATA 1 x mPCIe slot (USB 3.2, PCIe 3.0, SATA 3.0), SIMs support, LTE modem (default), optional for Wi-Fi/mSATA by DIP S/W setting 1 x M.2 3042/50/52 Key B socket (USB 3.2/2.0), SIMs support for LTE/5G modem 1 x M.2 2230 Key E socket (PCIe 3.0 x 2 & USB 2.0), Wi-Fi (default), Hailo AI card in option |
| Security | TPM 2.0: Infineon SLB9670VQ2.0 FW7.62 |
| Display | 1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz 1 x VGA, up to 1920 x 1200@60Hz; 1 x DP, 4096x2304@60Hz |
| Audio & DC-OUT | Line-out, unbalanced stereo, left & right channel Line-in & MIC-in, stereo DC-OUT: 12VDC@2A |
| GNSS Function | u-blox NEO-M9N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou Optional DR (Dead Reckoning) function, NEO-M9V/M8L |
| Storage | 2 x 2.5” SSD (15mm height, removable) 1 x M.2 2280 Key M (PCIe4.0 x4), NVMe SSD in default, Hailo AI card (optional) |
| Interface | |
| I/O Ports, Front-Plate | ATX power & reset button 9 x LED Indicators 4 x Nano SIM slots (SIM1-1, SIM1-2, SIM2-1, SIM2-2) 2 x USB3.2 Type A 1 x HDMI, 1 x DP Fan power connector 4 x 2.5GbE (RJ45), 1 x GbE (RJ45) 2 x Removable 2.5” SSD bay 1 x Multi-port DB15 (4 x DI, 4 x DO, 2 x CAN FD) 1 x PR-SMA for GNSS, 2/4 x SMA for LTE/5G ant. |
| I/O Ports, Rear-Plate | 2 x RS232 (DB9), 2 x RS232/422/485 (DB9) 4 x USB 3.2 type A Audio jack for Line-in, Line-out, MIC-in 1 x VGA 1 x Mini-fit connector (DR signal & DC-OUT) 5-pin Phoenix for 9~36VDC-in 2/4 x PR-SMA for Wi-Fi ant. |
| USB | 6 x USB 3.2 Gen 2: - Host Type-A connector - 5V@900mA each - Up to 10Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed) |
| 2.5GbE | 2-port independent 2.5GbE, RJ45 connector - 9Kbyte Jumbo frame - PTP (IEEE 1588) support - Controller: Intel® I226-IT Additional 4-port 2.5GbE PoE+, PSE 60W in max (options) |
| GbE/MGT | 1-port independent GbE, RJ45 connector - vPro (iAMT) - 9KB Jumbo frame - PTP (IEEE 1588) support - Wake-up function (WoL) - Boot from PXE (Legacy & UEFI) |
| DI/DO | 4-bit input - Source: 9~36VDC (12V@1.1mA/24V@2.2mA) - External: 0~33VDC pull-high, high-level, 3.3 - 33 VDC; low-level, 0 - 2 VDC 4-bit output - Source: 9~36VDC (nominal 35mA@24V) - External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C) Source or external can be selected by DIP S/W (default: source type) |
| Serial Port | 2 x Full RS232/422/485 2 x Full RS232 RS232 working voltage, +- 9V, baud rate up to 115.2kb/s 2-wire/4-wire RS-485 (Baud rate: 300~115.2Kbps) |
| CAN Bus | 2 x CAN FD, compatible with CAN2.0A/2.0B Up to 5Mb/s in data transmitted IEC 61000-4-2 Electrostatic Discharge (ESD): ± 4KV/8KV (contact/air) |
| Power Requirement | |
| Power Management | |
| Physical Characteristics | |
| Dimensions | 260.0mm x 210.0mm x 81.0mm (w/o mount bracket) 293.0mm x 210mm x 90.0mm (w/ mount bracket) |
| Operating temperatures | -35°C~70°C (35W CPU, fanless) -35°C~70°C (65W CPU, w/ fan) |
| Storage temperatures | -40°C~85°C |
| Humidity | 10%~95% (non-condensing) |
| Vibration | Vibration in operating: - MIL-STD-810H, 514.8C Procedure 6, Category 4 - IEC 60068-2-64: 2.0g@5~500 Hz Vibration in storage: - MIL-STD-810H, 514.8E Procedure 1, Category 24, 7.7g |
| Shock Protection | MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g Crash hazard: Procedure V, ground equipment=75g |
| Weight | 5.7kg, 6.8kg (w/ fan kit) |
| Standards/Certifications | CE approval, FCC Class A, UKCA, E13 Certified |
| Compatible Operating Systems | |
| Operating System | Windows 10 64-bit/ Windows 10 IOT 64-bit, Windows 11 Linux (Ubuntu 18.04) |
