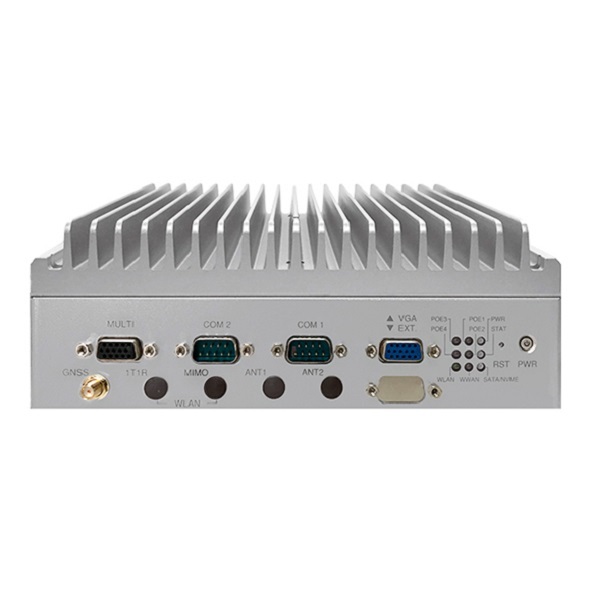

Nexcom VTC 7260-5C4 Fanless Vehicle Computer
- 11th Gen Intel® Core™, cost-efficient performance
- Compact, rugged, and fanless design
- Rich I/Os, 4 x PoE+, GbE, 4 x USB 2.0/3.2 & 2 x RS232/422/485
- 1 x 2.5” SSD, 1 x mSATA and 1 x NVMe SSD for data integrity
- Up to 3 combinations of LTE/5G, and Wi-Fi 5/6 for mobile router function
- Triple display, VGA, HDMI, and DP for multi video-out
- 9~36V DC-IN with ignition control & OCP/OVP
- Wide range operating temperature of -30°C~60°C (15W TDP&PoE)
- Military standard of anti-vibration/shock for OHV applications
- CE/FCC, UKCA, Emark certified
Description
VTC 7260-xC4 is an in-vehicle AI-Aided telematics computer
designed with 11th Gen Intel® Core™, which performs 25% more computing power
than the former generation. Moreover, its 10-year product lifespan can satisfy
the long-term support suitable for any in-vehicle applications. With the
compact, rugged, and fanless design, VTC 7260-xC4 can widely be installed in
any limited cabinet space with ease, and reduce maintenance efforts while
operating 24/7 services. In addition, the VTC 7260-xC4 features diverse
peripherals, such as 2.5GbE, PoE+, USB 3.2, isolation CANBus, serial ports,
ultra-speed NVMe storage, triple displays, audio in/out, DI/DO, and 9~36VDC
with IGN control, making it a sophisticated in-vehicle computer.
To work as the edge AI, the user can install LTE/5G/Wi-Fi 5/6 modules along with Hailo AI accelerator (26TOPS) to deploy AI services, provided by cloud SaaS. In consideration of the harsh environment applications, VTC 7260-xC4 can be operated at the temperature range of -30°C~60°C (15W TDP & PoE) and is compliant with MIL-STD-810G military standard for anti-vibration/shock. In terms of regulations, VTC 7260-xC4 is compliant with CE/FCC Class A, UKCA, and Emark (E13).
You can place an order for the Nexcom VTC 7260-5C4 Fanless Vehicle Computer, which is applicable
in the Road Transportation industry, online via one of our Middle East
branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a
specific time.
Specification
Interface | |
---|---|
I/O Ports, Front-Plate | ATX power button, Reset button 9 x LED Indicators, 1 x VGA (DB15), 2 x COM (DB9, RS232/422/485), 1 x Multi-port (DB15, 4xDI, 4xDO, CAN, DR signal) , 1 x Ext. (DB15, reserved), 1 x PR-SMA for GNSS, 4 x PR-SMA for WLAN |
I/O Ports, Rear-Plate | 2 x Audio jack (Line-out & MIC-in) 3 x USB 3.2 type A, 1 x USB 2.0 type A 1 x HDMI, 1 x DP, 4 x PoE+ (2.5GbE, RJ45), 1 x GbE, 9~36VDC (3-pin Phoenix) 4 x SMA for WWAN, 4 x antenna holes reserved |
Serial Ports | 2 x full RS232/422/485, selectable 2 x full RS232 wafer-type reserved - RS232 working voltage, +- 9V, baud rate up to 115.2kb/s |
I/O ports, side-plate | 2 x SIM slots (SIM1-1, SIM2-1) |
PoE+ | 4-port independent 2.5GbE, RJ45 connector - IEEE 802.3 af/at, total 60W - 9K byte jumbo frame - PTP (IEEE 1588) support - Controller: Intel® I225-IT |
GbE | 1-port independent GbE, RJ45 connector - vPro (iAMT) support - 9K byte jumbo frame - PTP (IEEE 1588) support - Wake-up function (WoL) - Boot from PXE (UEFI) |
Computer | |
CPU | 11th Gen Intel® Core™ Core i5-1145GRE, base frequency 1.5GHz/ 2.6GHz, 4c, 8 MB Intel® Smart Cache (VTC 7260-5C4) Graphics: - Intel® Iris® Xe graphics, 1.3GHz - Max resolution: 4096 x 2304@60Hz (HDMI) - DirectX: 12.1, OpenGL: 4.6 |
USB | 3 x USB 3.2 Gen1: - Host type-A connector - 5V@900mA each - Up to 10Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed) 1 x USB 2.0, host type-A, 2 x USB 2.0 water-type reserved |
Storage | 1 x 2.5” SSD (15mm height) 1 x mPCIe for mSATA (SATA 3.0) 1 x M.2 2242/2280 Key M NVMe SSD (PCIe 4.0 x4), Hailo AI card in option |
Display | |
Display Interface | 1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz 1 x VGA, up to 2560 x 1600@60Hz 1 x DP, 4096 x 2304@60Hz |
Compatible Operating Systems | |
Operating System | Windows 10 64-bit/Windows 10 IOT 64-bit, Windows 11 Linux (Ubuntu 18.04) |
Digital Input | |
DI/DO | 4-bit input - Source: 9~36VDC (12V@1.1mA/24V@2.2mA) - External: 0~33VDC pull-high, high-level, 3.3-33 VDC; low-level, 0-2VDC 4-bit output - Source: 9~36VDC (nominal 35mA@24V): - External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C) Source or external can be selected by DIP switch (default: source type) |
Power Requirements | |
Power Supply | Cranking voltage: 6V~9V (less than 20 sec) Nominal voltage: 9~36V OCP & UVP (shut down once exceeding 37V) The ignition on/off control & programmable on/off delay timer Optional for remote power on/off control |
General | |
Memory | 2 x SO-DIMM, DDR4-3200MHz 4GB+4GB in default, 64GB in max. ECC (in-band ECC), dual-channel support |
CAN | 1 x CAN 2.0A/ 2.0B IEC 61000-4-2 Electrostatic Discharge (ESD): ± 8KV/15KV (contact/air) 2.5KV isolated |
Audio | Line-out, unbalance stereo, left & right channel MIC-in, stereo Line-in reserved (wafer connector) |
MEMS Sensor | 3D accelerometer and 3D gyroscope Controller: ST LSM6DSLTR |
GNSS | U-blox NEO-M9N GNSS module for GPS/GLONESS/QZSS/Galileo/Beidou Optional DR (Dead Reckoning) function, NEO-M8U/M8L |
Expansion Slot | 1 x mPCIe socket (PCIe 3.0 + USB 2.0/ USB 3.2), 2 x micro SIMs supported 1 x M.2 3042/3050 Key B socket (USB 3.2), 2 x micro SIMs supported 1 x M.2 2230 Key E socket (PCIe 3.0 x2 & USB 2.0), Wi-Fi or Hailo AI card in option) |
Physical Characteristics | |
Dimensions | 210.0mm x 173.0mm x 75.0mm (w/o mount brackets) 234.0mm x 173.0mm x 81.0mm (w/ mount brackets) |
Operating temperature | -30°C~60°C (15W TDP & PoE) |
Storage Temperature | -40°C~85°C |
Relative humidity | 10%~95% (non-condensing) |
Shock Protection | MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g Crash hazard: Procedure V, ground equipment=75g |
Vibration Protection | Vibration in operating: - MIL-STD-810H, 514.8C Procedure 6, Category 4 - IEC 60068-2-64: 2.0g@5~500Hz Vibration in storage: - MIL-STD-810G, 514.6E Procedure 1, Category 24, 7.7g |
Standards and Certifications | CE approval, FCC Class A, UKCA, E13 Certified |
Weight | 3.5kg |
External Cable | DB15 multi-port adapter cable, 20cm |
