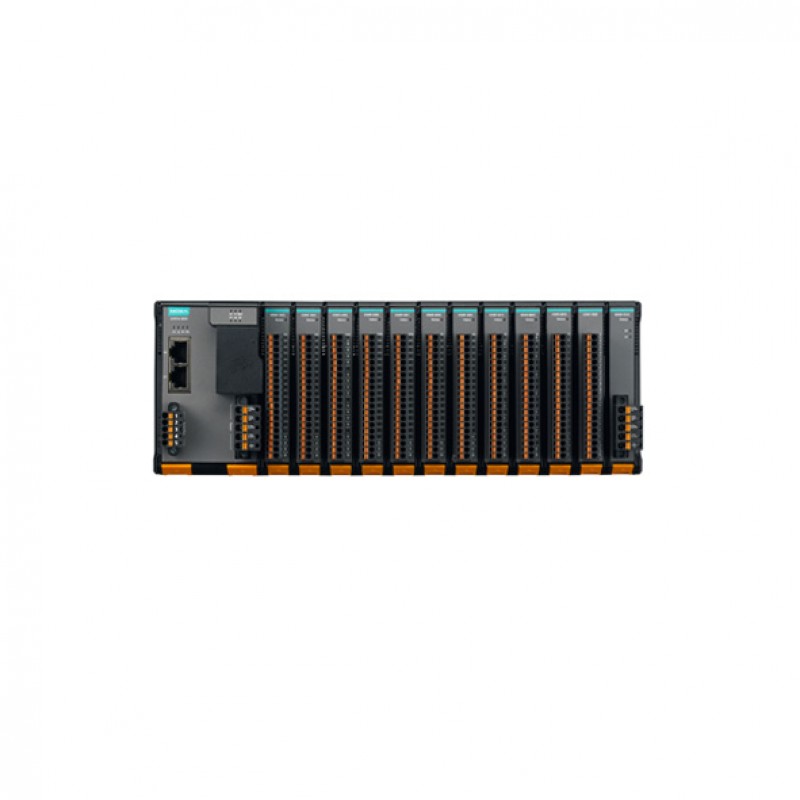

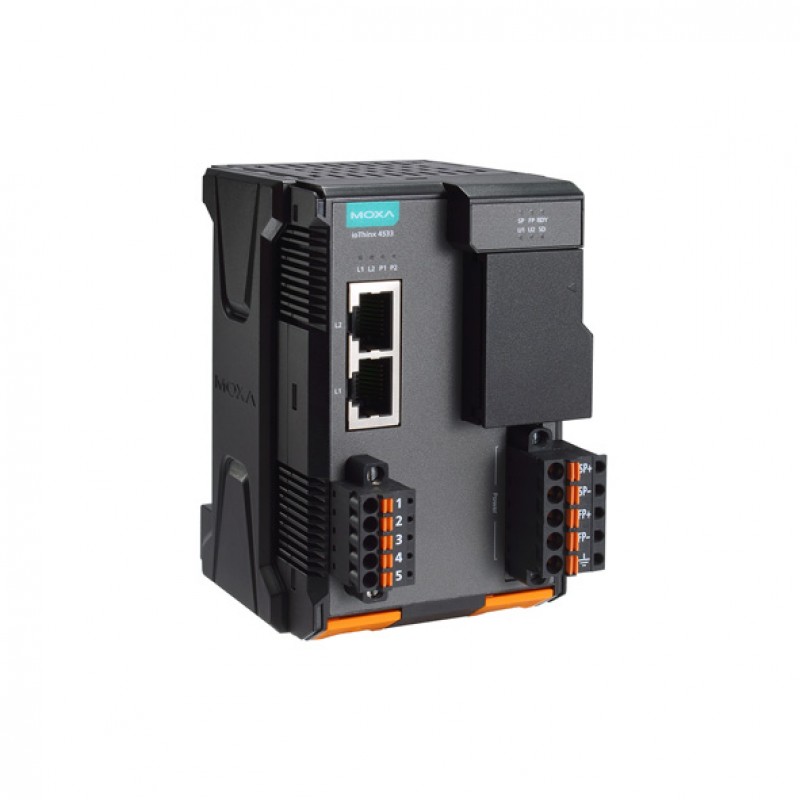

MOXA ioThinx 4533-LX Modular Remote I/O Adapter

  • Supports TPM v2.0 (optional)
  • Easy tool-free installation and removal
  • Moxa Industrial Linux with secure boot function
  • Supports up to 64 I/O modules
  • Built-in Azure/AWS/Alibaba Cloud Library
  • Built-in OPC UA server library

  • Brand: MOXA
  • Product Code: ioThinx 4533-LX

Description

The ioThinx 4530 Series is an advanced modular controller product with a unique hardware design, making it an ideal solution for a variety of industrial data acquisition applications. The ioThinx 4530 Series has a unique mechanical design that reduces the amount of time required for installation and removal, simplifying deployment and maintenance. In addition, the ioThinx 4530 Series supports Moxa Industrial Linux and a built-in Azure/AWS/Alibaba cloud SDK so that users can easily save field data to different cloud accounts.

The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN rail. Removing all of the modules from a DIN rail is also easy using the latch and release tab.


You can also find the ioThinx 4533-LX-T model in the Smart Remote I/O.


Experience the convenient way to purchase the MOXA ioThinx 4533-LX Modular Remote I/O Adapter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

Specification

INPUT/OUTPUT INTERFACE
Buttons Reset button
Isolation -
GENERAL
MTBF 856,064 hrs
POWER REQUIREMENTS
Power Connector Spring-type Euroblock terminal
Number of Power Inputs 1
Input Voltage 12/24 VDC
Over-Current Protection 5 A @ 25°C
Over-Voltage Protection 33 VDC
Output Current 2 A (max.)
PHYSICAL CHARACTERISTICS
Housing Plastic
Dimensions 60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)
Installation DIN-rail mounting
Storage Temperature 40 to 85°C (-40 to 185°F)
Weight 207.7 g (0.457 lb)
Ambient Relative Humidity 5 to 95% (non-condensing)
Operating Temperature -20 to 60°C (-4 to 140°F)
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
