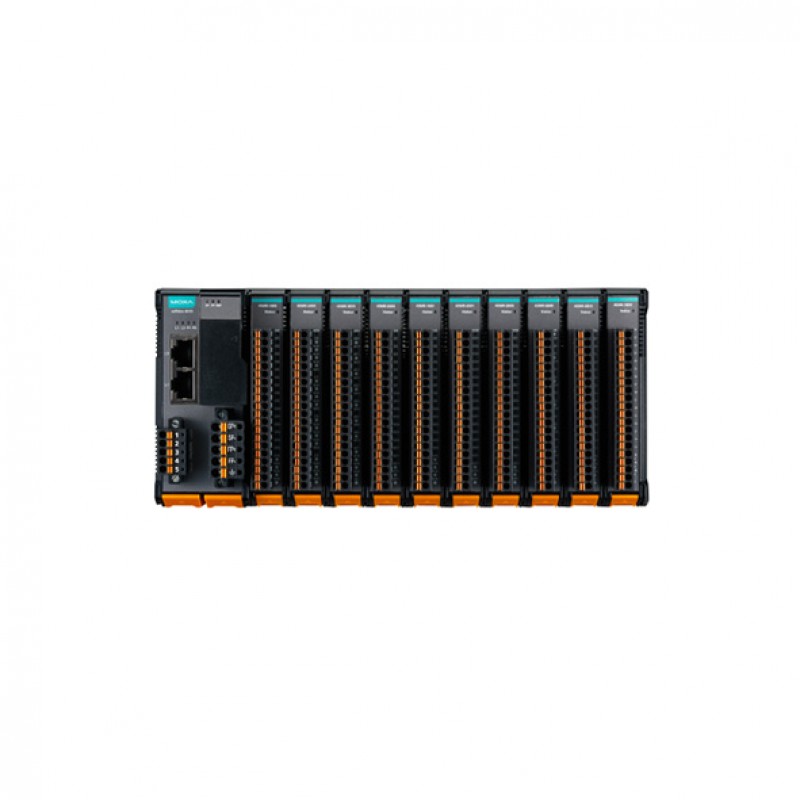

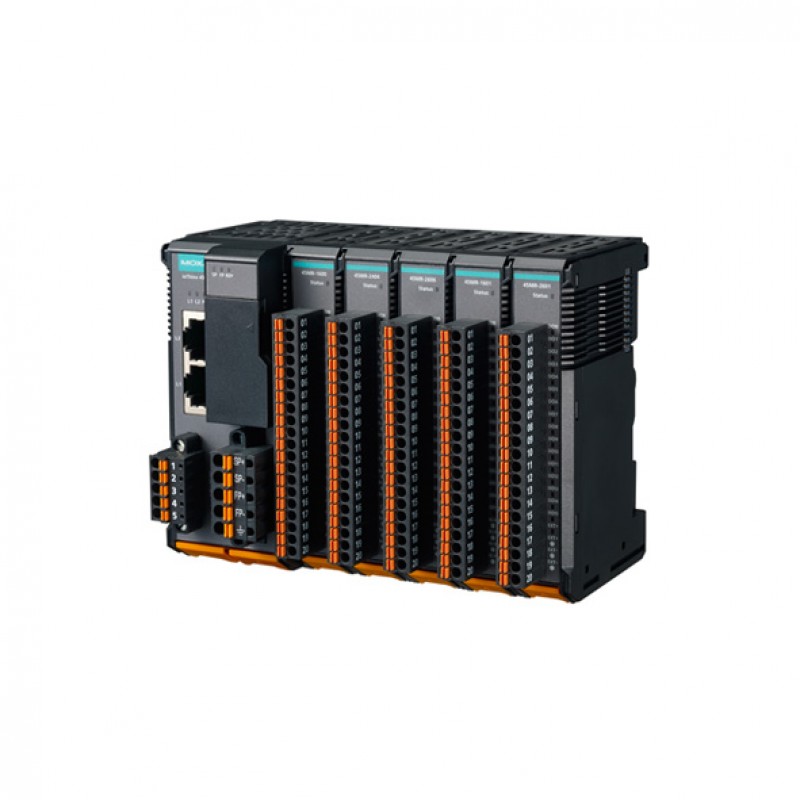

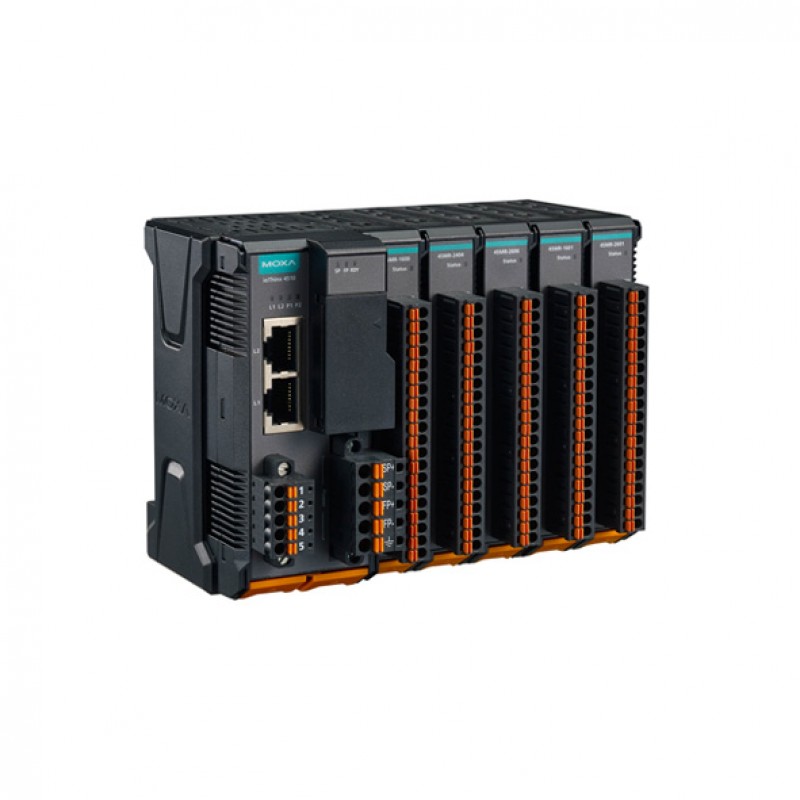

MOXA ioThinx 4510-T Modular Remote I/O Adapter
- Supports up to 32 I/O modules
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x RS-232/422 or 2 x RS-485 (2 wire) Serial ports
- Supports Modbus/SNMP/RESTful API/MQTT
- Plastic body design
- 12/48 VDC (System), 12/24 VDC (Field) power inputs
- DIN-rail mounting
- -40 to 75°C operating temperature
Description
The ioThinx 4510 Series is an advanced modular remote I/O
product with a unique hardware and software design, making it an ideal solution
for various industrial data acquisition applications. The ioThinx 4510 Series
has a unique mechanical design that reduces the time required for installation
and removal, simplifying deployment and maintenance. In addition, the ioThinx
4510 Series supports Modbus RTU Master protocol for retrieving field site data
from serial meters and also supports OT/IT protocol conversion.
Easy Tool-Free Installation and Removal
The ioThinx 4500 Series has a unique mechanical design that
reduces the time required for installation and removal. Screwdrivers
and other tools are not required for any part of the hardware installation,
including mounting the device on a DIN rail and connecting the wiring for communication and I/O signal acquisition. Furthermore, no tools are required to
remove the ioThinx from a DIN rail. Removing all of the modules from a DIN rail
is also easy using the latch and release tab.
You can also find the ioThinx 4510 model in the Smart Remote I/O.
Explore our extensive range of
industrial automation products such as MOXA ioThinx 4510-T Modular Remote I/O Adapter in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| INPUT/OUTPUT INTERFACE | |
|---|---|
| Buttons | Reset button |
| Expansion Slots | Up to 32 |
| Isolation | 3k VDC or 2k Vrms |
| ETHERNET INTERFACE | |
| 10/100BaseT(X) Ports (RJ45 connector) | 2, 1 MAC address (Ethernet bypass) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| SERIAL INTERFACE | |
| Connector | Spring-type Euroblock terminal |
| Serial Standards | RS-232/422/485 |
| Number of Ports | 1 x RS-232/422 or 2 x RS-485 (2 wire) |
| Serial Communication Parameters | Baudrate: 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps; Flow Control: RTS/CTS; Parity: None, Even, Odd; Stop Bits: 1, 2; Data Bits: 8 |
| Serial Signals | RS-232 (TxD, RxD, RTS, CTS, GND), RS-422 (Tx+, Tx-, Rx+, Rx-, GND), RS-485-2w (Data+, Data-, GND) |
| INDUSTRIAL PROTOCOLS | |
| Protocols | Ethernet: Modbus TCP Server (Slave), RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, MQTT; Serial: Modbus RTU Master |
| POWER REQUIREMENTS | |
| Input Voltage | System: 12 to 48 VDC, Field: 12/24 VDC |
| Power Connector | Spring-type Euroblock terminal |
| Power Consumption | System: 800 mA @ 12 VDC |
| GENERAL | |
| Management | SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, DHCP Client, IPv4, HTTP, UDP, TCP/IP |
| MTBF | 1,451,040 hrs |
| PHYSICAL CHARACTERISTICS | |
| Housing | Plastic |
| Dimensions | 42.3 x 99 x 75 mm (1.67 x 3.9 x 2.95 in) |
| Weight | 173.5 g (0.382 lb) |
| Installation | DIN-rail mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | Up to 4000 m |
| Standards and Certifications | Safety: UL 61010-2-201; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Hazardous Locations: Class I Division 2, ATEX; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
