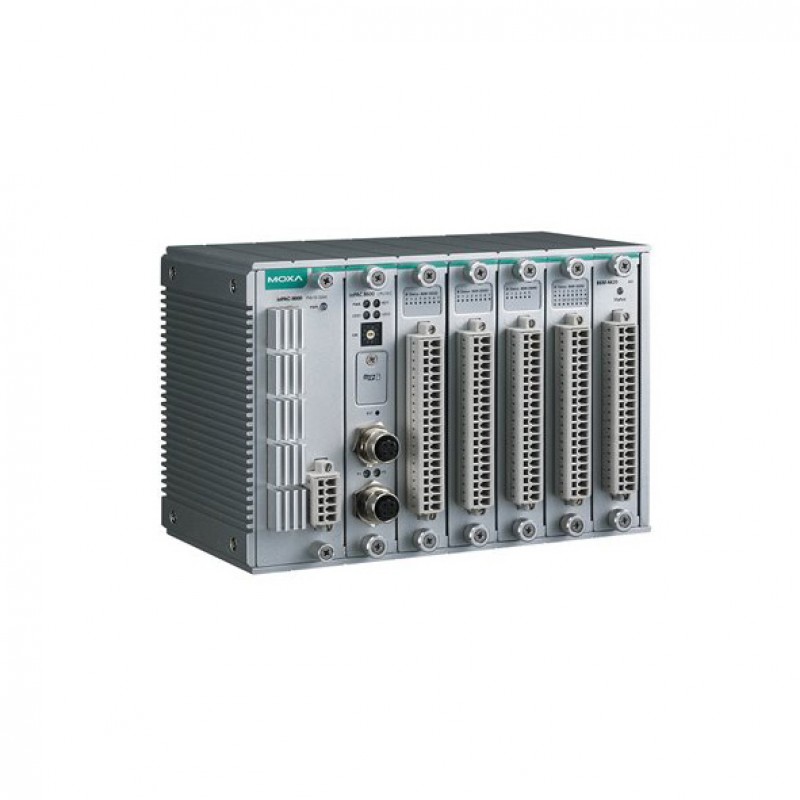

MOXA ioPAC 8600-CPU30-M12-IEC-T Modular Programmable Controller
- CPU: 32-bit Cortex-A8 1 GHz
- 2 x 10/100BaseT(X) Ports (M12 connector)
- Control Logic Languages: IEC 61131-3
- Compatible with ioPAC 8600 Series
- Wallmount installation design
- 24 to 110 VDC input power range
- Metal body design
- -40 to 75°C operating temperature
Description
The ioPAC 8600 Series modular programmable controllers are
100% modular, giving you the freedom to choose the CPU, power, backplane,
communication, and I/O modules you need for your application. In addition, the
ioPAC 8600 enhances the hardware system architecture and key features of the
ioPAC 8020 and ioPAC 8500 combined and has an Ethernet bus on the backplane to
support Ethernet switch modules. The ioPAC 8600 supports the C/C++ and IEC
61131-3 programming languages and ready-to-run services, including Modbus
TCP/RTU, SNMP, data logging, and email alarms to fulfill different customer
requirements. With active tag and MX-AOPC UA Suite data integration software,
the ioPAC 8600 Series provides a comprehensive solution for data acquisition
and control applications in harsh environments.
All New High-Performance CPU30 Module
Moxa’s ioPAC 8600-CPU30 module is equipped with a new 1 GHz
high-performance Cortex™ A8 CPU, which shortens the cycle time significantly
and allows users to run more programs simultaneously. The real-time Linux OS
also provides better controllability, reducing jitter to only 10% of the jitter
experienced by the CPU10 module. With the CPU30 module’s 4 GB eMMC, the ioPAC
8600 can support more communication protocols for a wider range of scenarios,
including a RESTful API for railway IIoT applications and DNP3 outstations2 for
oil and gas applications. The CPU30 also reserves up to 1.7 GB of internal
storage which gives users the freedom to develop more complex programs for
specific ioPAC applications. As an added bonus, users can develop programs
directly on the ioPAC.
You can also find the ioPAC 8600-CPU30-RJ45-IEC-T, ioPAC 8600-BM009-T, and ioPAC 8600-PW10-15W-T models in the Smart Remote I/O.
Easy World Automation offers the
easiest way to buy the MOXA ioPAC 8600-CPU30-M12-IEC-T Modular Programmable Controller in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| COMPUTER | |
|---|---|
| CPU | 32-bit Cortex-A8 1GHz |
| OS | Real-time Linux (PREEMPT_RT) |
| Clock | Real-time clock with capacitor backup |
| RAM | eMMC: 4 GB (1.7 GB reserved for user) for HW Rev. 1.0.1, 8 GB (5.2 GB reserved for user) for HW Rev. 1.1.0; SDRAM: 512 MB DDR3(L); SPI-NVRAM: 128 KB |
| MicroSD Slot | Up to 32 GB (SD 2.0 compatible) |
| CONTROL LOGIC | |
| Language | IEC 61131-3 |
| ETHERNET INTERFACE | |
| LAN Ports | 2 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| SERIAL INTERFACE | |
| No. of Ports | 1 x RS-232 Console Port (TxD, RxD, GND), 3-pin (115200, n, 8, 1) |
| Serial Standards | - |
| Connector | - |
| Serial Communication Parameters | - |
| Serial Signals | - |
| POWER REQUIREMENTS | |
| Power Consumption | 223 mA @ 24 VDC |
| Input Voltage | 24 to 110 VDC |
| Power Connector | Spring-type Euroblock terminal |
| SECURITY | |
| Authentication | Local database |
| Encryption | AES-256, HMAC, RSA-1024, SHA-1, SHA-256 |
| Security | Security Protocols: SNMPv3, SSHv2 |
| GENERAL | |
| MTBF | HW Rev 1.0.1: 1,358,656 hrs, HW Rev 1.1.0: 1,273,872 hrs |
| Management | BOOTP, IPv4, SMTP, UDP, TCP/IP |
| Supported Protocols | Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), SNMPv1/v2c Trap, SNMPv1/v2c/v3 |
| PHYSICAL CHARACTERISTICS | |
| Housing | Metal |
| Dimensions | - |
| Weight | 2,56kg (5.64 lb) |
| Installation | Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4, EN 50155; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Telcordia SR332 |
| Altitude | 2000 m |
