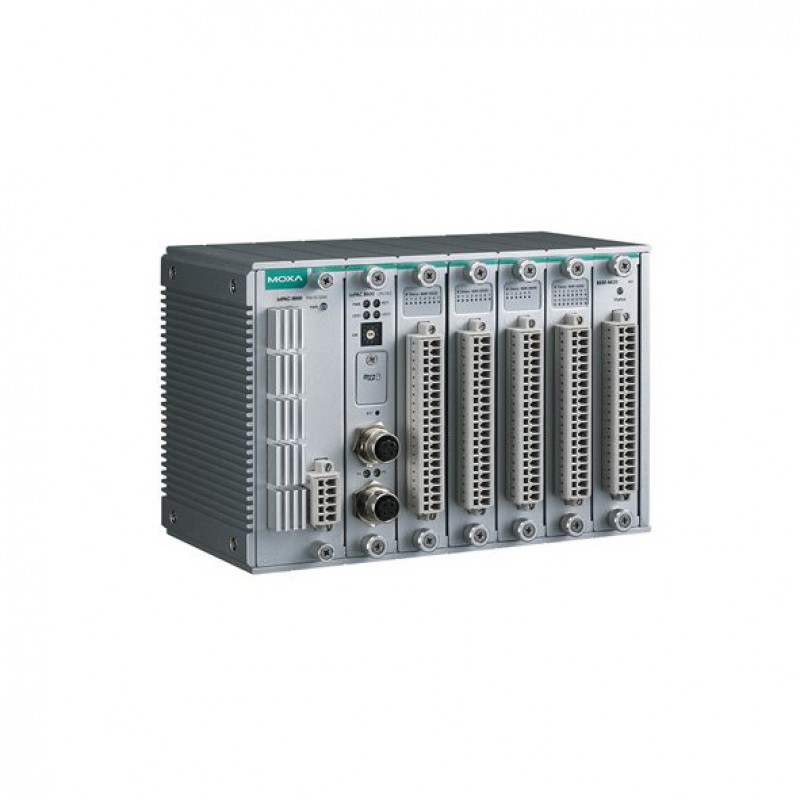

MOXA ioPAC 8600-CPU30-M12-C-T Modular Programmable Controller

CPU: 32-bit Cortex-A8 1 GHz
2 x 10/100BaseT(X) Ports (M12 connector)
Control Logic Languages: C/C++
Compatible with ioPAC 8600 Series
Wallmount installation design
24 to 110 VDC input power range
Metal body design
-40 to 75°C operating temperature

Brand: MOXA
Product Code: ioPAC 8600-CPU30-M12-C-T

Datasheet

Tags: Industrial Edge Connectivity , Controllers & I/Os , Rugged Controllers & I/Os , Rugged Controllers , Rugged I/Os , Controllers , Ethernet Remote I/O , Ethernet Smart Remote I/O , Remote I/O , Industrial Automation Solutions , Railway Transportation Products , Remote Automation , Smart Remote I/O , I/Os , MOXA ioPAC 8600 Series

Description

The ioPAC 8600 Series modular programmable controllers are 100% modular, giving you the freedom to choose the CPU, power, backplane, communication, and I/O modules you need for your application. In addition, the ioPAC 8600 enhances the hardware system architecture and key features of the ioPAC 8020 and ioPAC 8500 combined and has an Ethernet bus on the backplane to support Ethernet switch modules. The ioPAC 8600 supports the C/C++ and IEC 61131-3 programming languages and ready-to-run services, including Modbus TCP/RTU, SNMP, data logging, and email alarms to fulfill different customer requirements. With active tag and MX-AOPC UA Suite data integration software, the ioPAC 8600 Series provides a comprehensive solution for data acquisition and control applications in harsh environments.

All New High-Performance CPU30 Module

Moxa’s ioPAC 8600-CPU30 module is equipped with a new 1 GHz high-performance Cortex™ A8 CPU, which shortens the cycle time significantly and allows users to run more programs simultaneously. The real-time Linux OS also provides better controllability, reducing jitter to only 10% of the jitter experienced by the CPU10 module. With the CPU30 module’s 4 GB eMMC, the ioPAC 8600 can support more communication protocols for a wider range of scenarios, including a RESTful API for railway IIoT applications and DNP3 outstations2 for oil and gas applications. The CPU30 also reserves up to 1.7 GB of internal storage which gives users the freedom to develop more complex programs for specific ioPAC applications. As an added bonus, users can develop programs directly on the ioPAC.

You can also find the ioPAC 8600-BM009-T, ioPAC 8600-CPU30-RJ45-C-T, and ioPAC 8600-CPU30-M12-IEC-T models in the Smart Remote I/O.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA ioPAC 8600-CPU30-M12-C-T Modular Programmable Controller through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

COMPUTER
CPU	32-bit Cortex-A8 1 GHz CPU
OS	Real-time Linux (PREEMPT_RT)
Clock	Real-time clock with capacitor backup
RAM	eMMC: 4 GB (1.7 GB reserved for user) for HW Rev. 1.0.1, 8 GB (5.2 GB reserved for user) for HW Rev. 1.1.0; SDRAM: 512 MB DDR3(L); SPI-NVRAM: 128 KB
MicroSD Slot	Up to 32 GB (SD 2.0 compatible)
CONTROL LOGIC
Language	C/C++
ETHERNET INTERFACE
LAN Ports	2 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
Magnetic Isolation Protection	1.5 kV (built-in)
SERIAL INTERFACE
No. of Ports	1 x RS-232 Console Port (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Serial Standards	-
Connector	-
Serial Communication Parameters	-
Serial Signals	-
POWER REQUIREMENTS
Power Consumption	223 mA @ 24 VDC
Input Voltage	24 to 110 VDC
Power Connector	Spring-type Euroblock terminal
SECURITY
Authentication	Local database
Encryption	AES-256, HMAC, RSA-1024, SHA-1, SHA-256
Security	Security Protocols: SNMPv3, SSHv2
GENERAL
MTBF	HW Rev 1.0.1: 1,358,656 hrs, HW Rev 1.1.0: 1,273,872 hrs
Management	BOOTP, IPv4, SMTP, UDP, TCP/IP
Supported Protocols	Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), SNMPv1/v2c Trap, SNMPv1/v2c/v3
PHYSICAL CHARACTERISTICS
Housing	Metal
Dimensions	-
Weight	181g (0.40 lb)
Installation	Wall mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4, EN 50155; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Telcordia SR332
Altitude	2000 m
