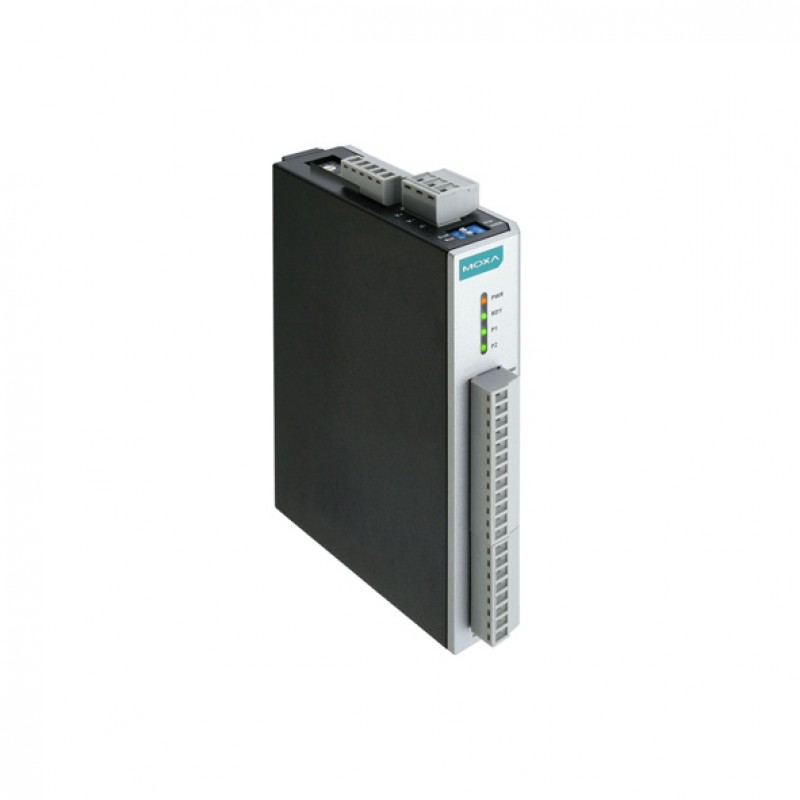

MOXA ioLogik R1241 Serial Remote I/O
- 4 x Analog Output Channels
2 x RS-485 Serial ports (Terminal block connector)
- Plastic body design
- 12 to 48 VDC input power range
- DIN-rail and Wall mounting
- -10 to 75°C operating temperature
- Brand: MOXA
- Product Code: ioLogik R1241
Description
The ioLogik R1200 Series RS-485 serial remote I/O devices
are perfect for establishing a cost-effective, dependable, and easy-to-maintain
remote process control I/O system. Remote serial I/O products offer process
engineers the benefit of simple wiring, as they only require two wires to
communicate with the controller and other RS-485 devices while adopting the
EIA/TIA RS-485 communication protocol to transmit and receive data at high
speed over long distances. In addition to communication configuration by software
or USB and dual RS-485 port design, Moxa’s remote I/O devices eliminate the
nightmare of extensive labor associated with the setup and maintenance of data
acquisition and automation systems. Moxa also offers different I/O
combinations, which provide greater flexibility and are compatible with many
other applications.
You can also find the ioLogik R1210, ioLogik R1214, and
ioLogik R1240-T models in the
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA ioLogik R1241 Serial Remote I/O through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Digital Input and Output | |
| Adjustable digital input and output | |
| Analog Input and Output | : 8 x Analog Output Channels |
| Relays | |
| Thermal sensor input (RTD) | |
| Thermocouple input | |
| LAN | |
| Magnetic Isolation Protection | |
| Serial port | : 2 Port |
| Isolation | : 3k VDC or 2k Vrms |
| Buttons | Reset button |
| Serial Interface | |
| Connector | Terminal block |
| Serial Standards | RS-485 |
| Serial Communication Parameters | Baudrate: 1200 bps to 921.6 kbps; Parity: None, Even, Odd; Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms; Stop Bits: 1, 2; Surge: 1 kV; ESD: 15 kV; Data Bits: 8 |
| Serial Signals | RS-485-2w: Data+, Data-, GND |
| Security | |
| Security Functions | - |
| Standards and protocols | |
| Protocols | Serial: Modbus RTU Server (slave) |
| General | |
| Compatible Softwares | ioSearch, MX-AOPC UA Server |
| Management | - |
| MTBF | 1,239,293 hrs |
| Power Requirements | |
| Power Connector | Screw-fastened Euroblock terminal |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | 343 mA @ 24 VDC |
| LED Indicators | |
| LED Indicators | PWR, RDY, P1, P2 |
| Physical Characteristics | |
| Housing | Plastic |
| Dimensions | 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Installation | DIN-rail mounting, Wall mounting |
| Operating Temperature | -10 to 75°C (14 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5% to %95 Non-condensing |
| Weight | 200 g (0.44 lb) |
| Altitude | 2000 m |
