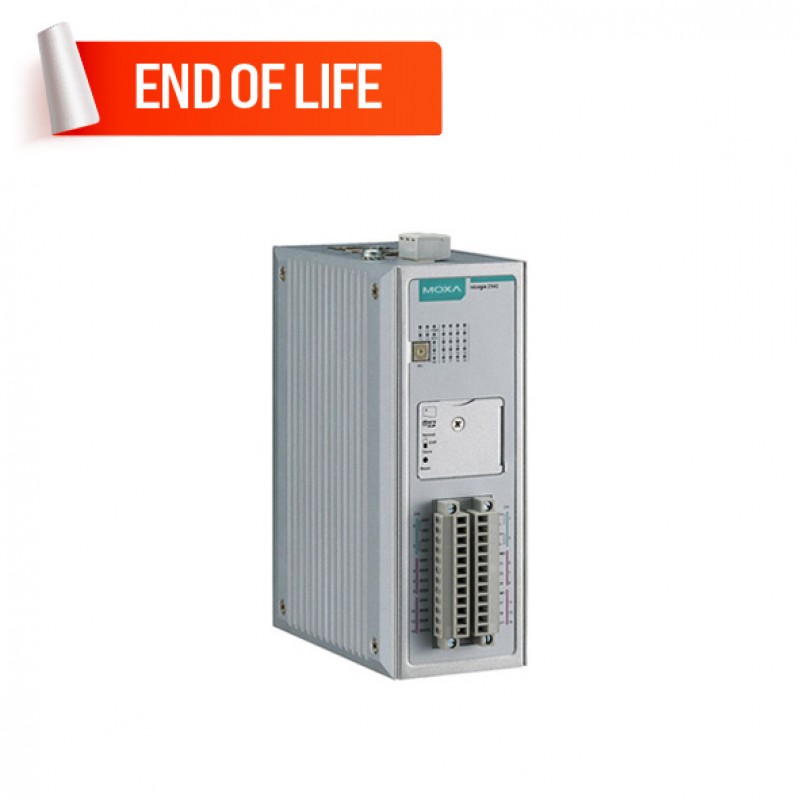

MOXA ioLogik 2542-WL1-JP-T Smart Ethernet Remote I/O

  • Supports JP Frequency Bands
  • 4 x Analog Input Channels and 12 x Configurable DIO Channels
  • 4 x 10/100BaseT(X) Switch Ports (RJ45 connector)
  • 2 x RS 232/422/485 Serial ports (8-pin RJ45 connector)
  • 12 to 48 VDC input power range
  • Supports Modbus TCP, MX-AOPC, SNMP v1/v2c, and IPsec VPN
  • IP30-rated Metal body design
  • DIN-rail and Wall mounting
  • -30 to 70° C operating temperature

Description

ioLogik 2500 smart Ethernet remote I/O devices feature unique hardware and software designs, making them ideal solutions for a variety of industrial data acquisition applications. The ioLogik 2500’s hardware design includes a 4-port unmanaged Ethernet switch and 2 serial ports, enabling it to seamlessly connect to a variety of field devices.

One of the Ethernet ports can be used to link to 8 daisy-chained ioLogik E1200 expansion modules to provide more than 100 channels. The ioLogik 2500 acts as the “head” unit, with Click&Go Plus logic used to control the entire I/O array. Most importantly, a single IP is all that is required to connect the entire I/O array to your network, providing the perfect solution for industrial field sites that have an insufficient number of IP addresses.


You can also find the ioLogik 2512, ioLogik 2512-T, ioLogik 2542, and ioLogik 2542-T models in the Smart Remote I/O.


Easy World Automation offers the easiest way to buy the MOXA ioLogik 2542-WL1-JP-T Smart Ethernet Remote I/O in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
Digital Input and Output
Adjustable digital input and output : 12 x Channels
Analog Input and Output : 4 x Analog Input Channels
Relays
Thermal sensor input (RTD)
Thermocouple input
LAN : 4 x 10/100BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection 1.5 kV (built-in)
Serial port : 2 Ports
Isolation : 3k VDC or 2k Vrms
Buttons Reset button
Serial Interface
Connector 8-pin RJ45
Serial Standards RS-232, RS-422, RS-485
Serial Communication Parameters Baudrate: 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps; Data Bits: 5, 6, 7, 8; Flow Control: None, RTS/CTS, XON/XOFF; Parity: None, Even, Odd; Stop Bits: 1, 2
Serial Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND; RS-422: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND; RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Security
Security Functions IPsec VPN: DES, 3DES, AES-128, AES-192, AES-256
Standards and protocols
Protocols Ethernet: CGI commands, Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c Trap; Serial: Modbus RTU Master
General
Compatible Softwares MX-AOPC UA Server, MXIO library, Click&Go Plus
Management BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
MTBF 331,222 hrs
Power Requirements
Power Connector Screw-fastened Euroblock terminal
Input Voltage 12 to 48 VDC
Power Consumption 406 mA @ 24 VDC
LED Indicators
LED Indicators PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15)
Physical Characteristics
Housing Metal
Dimensions 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
Standards and Certifications EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Hazardous Locations: ATEX, Class I, Division 2; Safety: UL 508; Radio: EN 301 489-1/17; Radio Frequency: EN 301 908, EN 301 489-24, EN 301 511
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -30 to 70°C (-22 to 158°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5% to %95 Non-condensing
Weight 1,265 g (2.79 lb)
Altitude 2000 m
