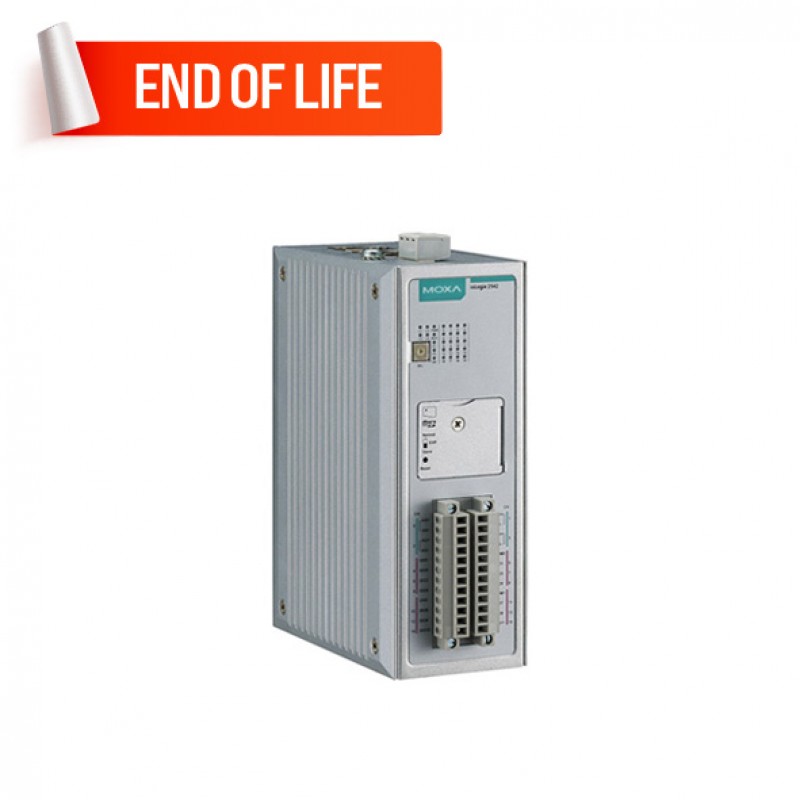

MOXA ioLogik 2512-WL1-EU-T Smart Ethernet Remote I/O

8 x DI and 8 x Configurable DIO
2 x RS-232/422/485 serial ports
4-port unmanaged switch built in for linking to Ethernet devices
12 to 48 VDC power input
Metal body
-30 to 70°C operating temperature
Wireless Standards: IEEE 802.11b/g for wireless LAN

Brand: MOXA
Product Code: ioLogik 2512-WL1-EU-T

Datasheet

Tags: Industrial Edge Connectivity , Controllers & I/Os , Universal Controllers & I/Os , Universal Controllers , Universal I/Os , Controllers , Ethernet Remote I/O , Remote I/O , Industrial Automation Solutions , Remote Automation , Smart Remote I/O , Oil & Gas Products , Factory Automation Products I/Os

Description

ioLogik 2500 smart Ethernet remote I/O devices feature unique hardware and software designs, making them ideal solutions for a variety of industrial data acquisition applications. The ioLogik 2500’s hardware design includes a 4-port unmanaged Ethernet switch and 2 serial ports, enabling it to seamlessly connect to a variety of field devices.

One of the Ethernet ports can be used to link to 8 daisy-chained ioLogik E1200 expansion modules to provide more than 100 channels. The ioLogik 2500 acts as the “head” unit, with Click&Go Plus logic used to control the entire I/O array. Most importantly, a single IP is all that is required to connect the entire I/O array to your network, providing the perfect solution for industrial field sites that have an insufficient number of IP addresses.

You can also find the ioLogik 2512-WL1-EU model in the Smart Remote I/O.

Experience the convenient way to purchase the MOXA ioLogik 2512-WL1-EU-T Smart Ethernet Remote I/O in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

Specification

Interface
Digital Input and Output	: 8 digital inputs
Adjustable digital input and output	: 8 adjustable digital inputs and outputs
Analog Input and Output
Relay Output
Thermal sensor input (RTD)
Thermocouple input
LAN	: 4 RJ-45 10/100Mbps Ports
Serial port	: 2 RS-232/422/485 Ports
Standards and protocols
Protocols	Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP
General
Compatible Softwares	MX-AOPC UA Server, MXIO
Physical Characteristics
Standards and Certifications	Safety:UL 508; EMC:EN 55022/24, EN 61000-6-2/6-4; EMI:CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 1 kV; IEC 61000-4-6 CS: 3 V; IEC 61000-4-8; Hazardous Location:Class 1 Division 2; ATEX Zone 2; Green Product:RoHS, CRoHS, WEEE
Storage Temperature	-40 to 85 ° C
Operation Humidity	5% to %95 Non-condensing
