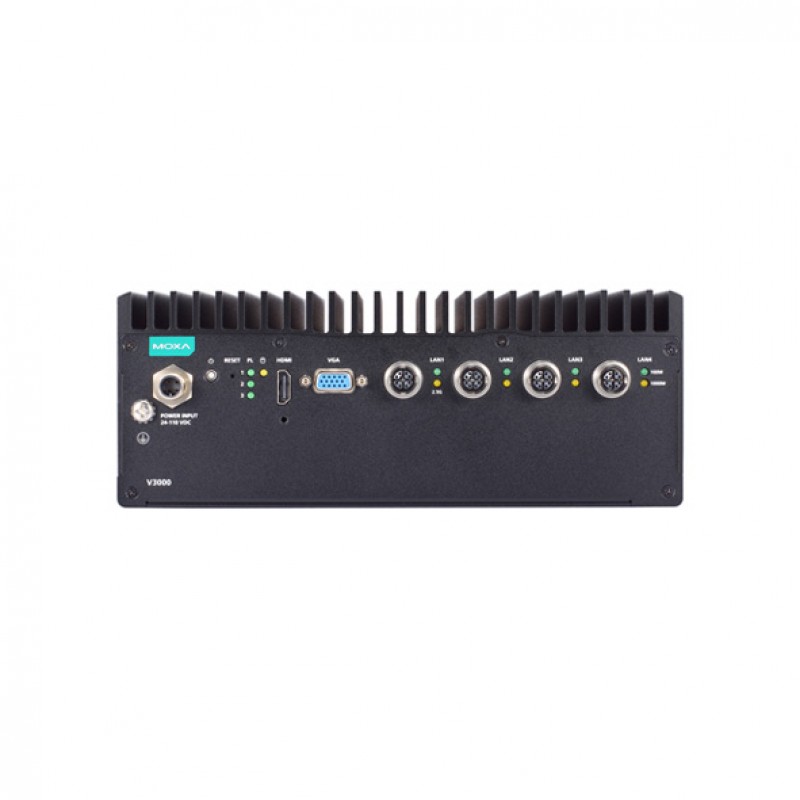

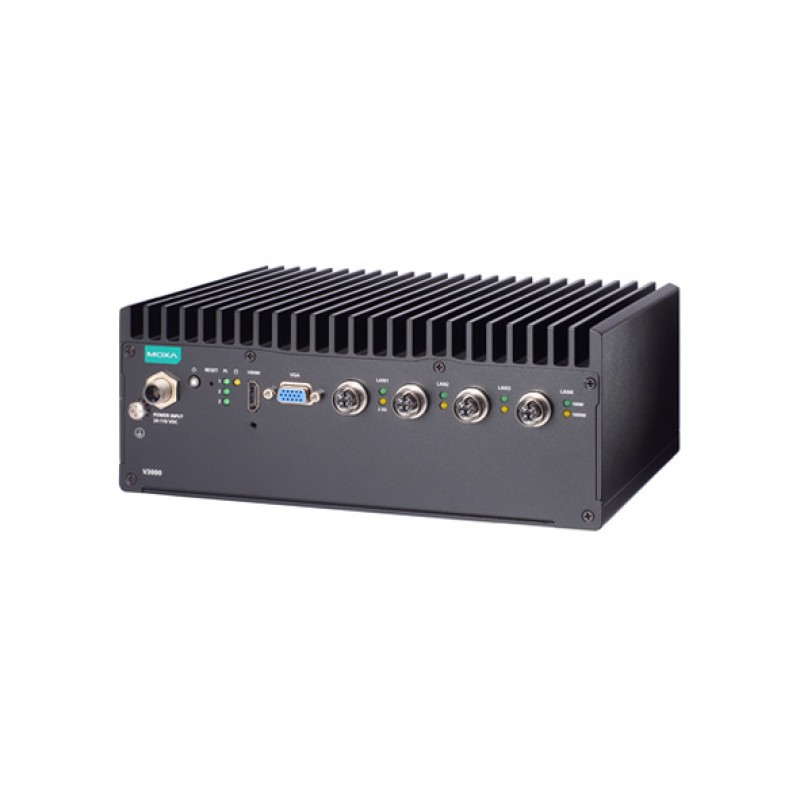

MOXA V3210-TL3-4L-CT-T Wide Temperature Computer
- CPU: Intel® Core™ i3-1115G4E processor
- 1 x 1000/2500 Mbps and 3 x 10/100/1000 Mbps Ports
- 2 x RS-232/422/485 Serial ports (DB9 male connector)
- IP30-rated Aluminum body design
- Wallmount installation design
- 24 to 110 VDC input power range (M12 connector)
- -40 to 70°C operating temperature range
.png)
Description
The V3200 Series embedded computers are built around an
Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and come
with up to 64 GB RAM, one M.2 2280 M key slot, and two 2.5" SSD slots for
storage expansion. The computers are compliant with EN 50155:2017 and EN
50121-4 standards covering operating temperature, power input voltage, surge,
ESD, and vibration, making them suitable for railway onboard and wayside
applications.
For connecting with onboard and wayside systems and devices,
the V3200 computers are equipped with a rich set of interfaces including 4
Gigabit Ethernet ports (default; can go up to 8 ports) with one-pair LAN bypass
function to ensure uninterrupted data transmission, 2 RS-232/422/485 serial
ports, 2 DIs, 2 DOs, and 2 USB 3.0 ports. The built-in TPM 2.0 module ensures
platform integrity and provides hardware-based security as well as protection
from tampering.
Vehicular applications require reliable connectivity. They
also require clear indicators on the device that identify the status of the
software. The V3200 computers come with two 5G/one LTE and 6 SIM-card slots to
help establish redundant LTE/Wi-Fi connections and three programmable LEDs that
enable monitoring of the runtime status of software.
You can also find the V3210-TL1-8L-CT-T, V3210-TL3-4L-T, and V3210-TL5-8L-CT-T models in the Wide Temperature Computers.
You can explore our wide range of products and enquire about
the MOXA V3210-TL3-4L-CT-T Wide Temperature Computer for your industrial automation needs. Our sales experts will pave the
way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the
Middle East.
Specification
| Computer | |
|---|---|
| CPU | Intel® Core™ i3-1115G4E processor (2C/4T, 6M cache, 2.2 GHz) |
| Supported OS | Windows 10 Embedded IoT Ent 2021 LTSC 64-bit, Linux Debian 11/Ubuntu 20.04/CentOS 7.9 (driver) |
| OS (pre-installed) | - |
| System Memory | 16 GB DDR4 (64 GB max) |
| Graphics Controller | Intel® UHD Graphics |
| Storage Slot | 2.5-inch SSD slots x 2, M.2 M key 2280 slot x 1 (NVMe; 128 GB preinstalled) |
| Interface | |
| LAN | Default: 4 ports (2.5 GbE x 1 and GbE x 3), can go up to 8 ports; 1 x Auto-sensing 1000/2500 Mbps, up to 7 x Auto-sensing 10/100/1000 Mbps |
| Magnetic Isolation Protection | - |
| Digital Input/Output Channels | 2 x Digital inputs, 2 x Digital outputs (Screw-fastened Euroblock terminal connector) |
| Serial Ports | 2 x RS-232/422/485 ports, software selectable (DB9 male) |
| USB | 2 x USB 3.0 hosts, type-A connectors |
| Expansion Slot | M.2 B key 3052/3050 slots x 2 (for 5G; 4 Micro SIMs), M.2 E key slots x 1 (for Wi-Fi 6), mPCIe slots x 1 (for cellular with 2 Micro SIMs, Wi-Fi 5, or I/O expansion) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1,Storage x 1 |
| LAN | 2 per port (LAN1: 1000/2500 Mbps, LAN2 to LAN8: 100/1000 Mbps), 1 per LAN bypass pair (LAN7 - LAN8) |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | 24 to 110 VDC |
| Input Current | - |
| Power Consumption | 100 W (max.) |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | - |
| MTBF | 382,624 hrs |
| Physical Characteristics | |
| Dimensions | 249 x 88.9 x 180 mm (9.80 x 3.50 x 7.09 in) |
| Housing | Aluminum |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: EN 62368-1, IEC 62368-1, UL 62368-1; Railway Fire Protection: EN 45545-2:2020; Railway: EN 50121-4, EN 50121-3-2, EN 50155:2017; Shock: IEC 60068-2-27, IEC 61373; Vibration: IEC 60068-2-64, IEC 61373; IP30; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
| Weight | Product Only: 3.86 kg (8.51 lb), Product With Package: 5.10 kg (11.24 lb) |
| Mounting | Wall mounting |
