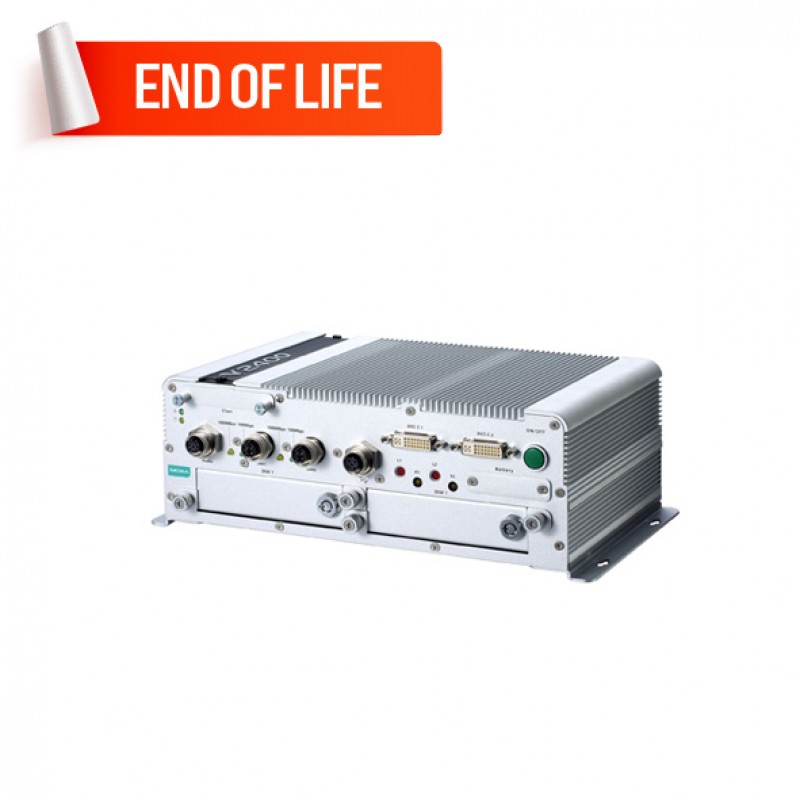

MOXA V2416A-C2 Wide Temperature Computer
- Intel Celeron/Core i7 high-performance network video recorder for rolling stock applications
- Two hot-swappable trays for 2.5-inch HDD/SSD storage expansion
- API Library for easy development and storage volume notification
- Dual independent DVI-I displays
- 2 gigabit Ethernet ports with M12 X-coded connectors
- 2 CFast sockets for OS backup
- M12 A-coded power connector
- Compliant with EN 50121-4
- Complies with a portion of EN 50155 specifications
- IEC 61373 certified for shock and vibration resistance
- -40 to 70°C wide temperature models available
- Supports SNMP-based system configuration, control, and monitoring (Windows Embedded Standard 7 only)
- Brand: MOXA
- Product Code: V2416A-C2
Description
The V2416A Series embedded computers are based on the Intel 3rd Gen processor and feature 4 RS-232/422/485 serial ports, dual LAN ports, and 3 USB 2.0 hosts. In addition, the V2416A computers provide dual DVI-I outputs and comply with the mandatory test items of the EN 50155 standard, making them suitable for a variety of industrial applications.
The CFast socket, SATA connectors, and USB sockets provide the V2416A computers with the reliability needed for industrial applications that require data buffering and storage expansion.
Most importantly, the V2416A computers come with 2 hot-swappable storage trays for inserting additional storage media, such as hard disk or solid-state drives, and support hot swapping for convenient, fast, and easy storage replacement. Each storage tray has its own LED to indicate whether or not a storage module is plugged in. The V2416A Series computers come preinstalled with a choice of Linux Debian 7 or Windows Embedded Standard 7 to provide programmers with a familiar environment in which to develop sophisticated, bug-free application software at a low cost.
Explore our extensive range of industrial automation products such as MOXA V2416A-C2 Wide Temperature Computer and all the MOXA Wide Temperature Computers in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| LAN | 2 per port (10/100/1000 Mbps) |
| ESD Protection | 4 kV for all signals |
| Computer | |
| CPU | Intel Celeron 1047UE processor (2M cache, 1.40 GHz) |
| System Chipset | Mobile Intel® HM65 Express |
| OS (Optional) | Windows Embedded Standard 7 or Linux Debian 7 |
| System Memory | 1 DDR3-1600 SO-DIMM SDRAM slot, 8 GB max., 4 GB pre-installed |
| USB | USB 2.0 hosts x 3 (Type A connectors x 2, supporting system boot up, M12 connectors x 1) |
| Display | |
| Graphics Controller | Intel® HD Graphics 4000 (integrated) |
| Display Interface | DVI up to 1920x1200 resolution @ 60 Hz, VGA up to 1920x1200 resolution @ 60 Hz, VGA up to 2048x1536 resolution @ 75 Hz |
| Connector Type | 2 DVI-I connectors |
| Serial Interface | |
| Serial Standards | 4 software-selectable RS-232/422/485 ports (DB9 male) |
| Digital Input | |
| Input Channels | 6 |
| Input Voltage | 0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts | Logic level 0: Close to GND, Logic level 1: Open |
| Digital Input Levels for Wet Contacts | Logic level 0: +3 V max. , Logic level 1: +10 V to +30 V (Source to DI) |
| Isolation | 3 kV optical isolation |
| Digital Output | |
| Output Channels | 2, sink type |
| Output Current | Max. 200 mA per channel |
| On-State Voltage | 24 VDC nominal, open collector to 30 VDC |
| Connector Type | 10-pin screw-fastened Euroblock terminal (6 inputs,2 outputs, DI Source, GND) |
| Isolation | 3 kV optical isolation |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate | 50 bps to 921.6 kbps (non-standard baudrates supported) |
| Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, Storage x 1, hot-swappable trays x 2 |
| Serial | 2 per port (Tx and Rx) |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC (M12 A-coded) |
| Input Current | 3.3 A @ 12 VDC, 0.82 A @ 48 VDC |
| Power Consumption | 40 W |
| General | |
| Automatic Reboot Trigger | Software-programmable watchdog timer configurable from 1 to 255 seconds |
| MTBF | 332,173 hrs |
| Physical Characteristics | |
| Dimensions | Without ears: 250 x 86 x 154 mm (9.84 x 3.38 x 6.06 in)m, With ears: 275 x 92 x 154 mm (10.83 x 3.62 x 6.06 in) |
| Housing | Aluminum |
| Operating temperature | -25 to 55°C (-13 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Telcordia (Bellcore) Standard TR/SR |
| EMC | EN 55032/24 |
| Weight | 4 kg (8.98 lb) |
| Anti-Vibration | EN 50155 standard |
| Safety | UL 60950-1, EN 60950-1 |
| Green Product | RoHS, CRoHS, WEEE |
| Anti-Shock | EN 50155 standard |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact 6: kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 |
| Mounting | Wall, DIN rail (optional), VESA (optional) |
| Isolation Protection | 1.5 kV |
