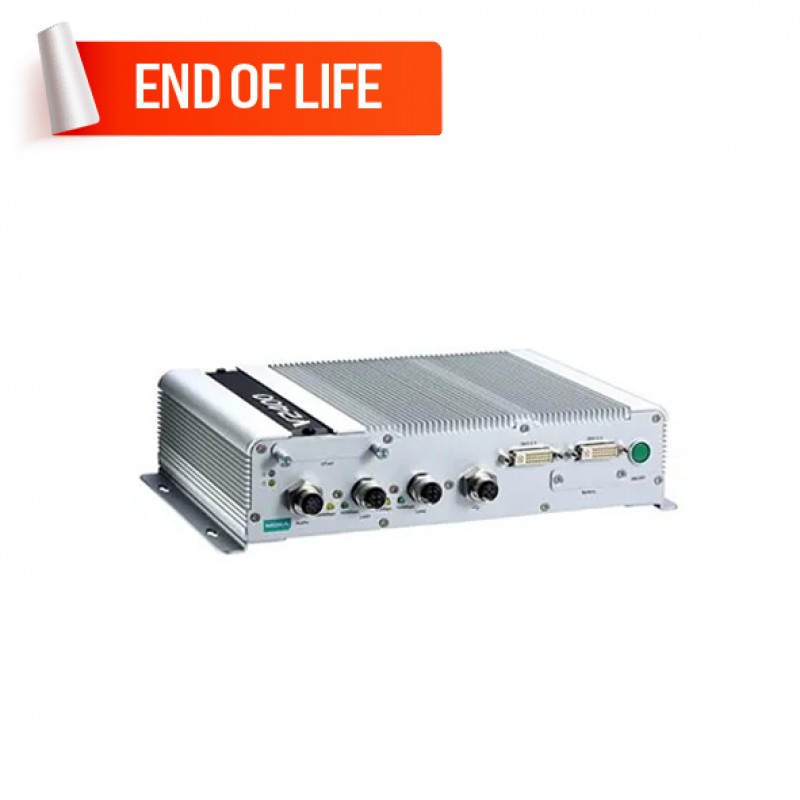

MOXA V2406A-C2 Wide Temperature Computer
- Intel Celeron/Core i7 processor suitable for diverse computing demands
- Dual independent DVI-I displays
- 2 gigabit Ethernet ports with M12 X-coded connectors
- 1 SATA connector and 2 CFast sockets for storage expansion
- M12 A-coded power connector
- Compliant with EN 50121-4
- Complies with a portion of EN 50155 specifications
- Ready-to-run Windows Embedded Standard 7 or Linux Debian 7
- -40 to 70°C wide temperature models available
- Supports SNMP-based system configuration, control, and monitoring (Windows Embedded Standard 7 only)
- Brand: MOXA
- Product Code: V2406A-C2
Description
The V2406A Series embedded computers are based on the Intel 3rd Gen processor, and feature 4 RS-232/422/485 serial ports, dual LAN ports, audio in/out, 3 USB 2.0 hosts, 2 CFast sockets, and 1 SATA storage socket. The V2406A computers provide dual DVI-I outputs, and in addition are compliant with the mandatory test items of the EN 50155 standard, making the computers suitable for a variety of industrial applications.
The dual megabit/Gigabit Ethernet ports with M12 X-coded connectors offer a reliable solution for network redundancy, promising continuous operation for data communication and management. As an added convenience, the V2406A computers have 6 DIs and 2 DOs for connecting digital input/output devices, and the CFast feature provides the reliability needed for industrial applications that require data buffering and storage expansion.
Preinstalled with Linux Debian 7 or Windows Embedded Standard 7, the V2406A Series provides programmers with a friendly environment for developing sophisticated, bug-free application software at a low cost. Wide-temperature models of the V2406A Series that operate reliably in a -40 to 70°C operating temperature range are also available, offering an optimal solution for applications subjected to harsh environments.
Easy World Automation offers the easiest way to buy the MOXA V2406A-C2 Wide Temperature Computer and all the MOXA Wide Temperature Computers in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| LAN | Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2 |
| ESD Protection | 4 kV for all signals |
| Computer | |
| CPU | Intel Celeron 1047UE processor (2M cache, 1.40 GHz) for the V2406A-C2 series |
| System Chipset | Mobile Intel® HM65 Express |
| OS (Optional) | Windows Embedded Standard 7 or Linux Debian 7 |
| System Memory | 1 DDR3-1600 SO-DIMM SDRAM slot, 8 GB max., 4 GB pre-installed |
| USB | USB 2.0 hosts x 3 (Type A connectors x 2, supporting system boot up, M12 connectors x 1) |
| Display | |
| Graphics Controller | Intel® HD Graphics 4000 (integrated) |
| Display Interface | DVI up to 1920x1200 resolution @ 60 Hz, VGA up to 1920x1200 resolution @ 60 Hz, VGA up to 2048x1536 resolution @ 75 Hz |
| Connector Type | 2 DVI-I connectors |
| Serial Interface | |
| Serial Standards | 4 RS-232/422/485 ports, software selectable (DB9 male) |
| Digital Input | |
| Input Channels | 6 |
| Input Voltage | 0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts | Logic level 0: Close to GND, Logic level 1: Open |
| Digital Input Levels for Wet Contacts | Logic level 0: +3 V max. , Logic level 1: +10 V to +30 V (Source to DI) |
| Isolation | 3 kV optical isolation |
| Digital Output | |
| Output Channels | 2, sink type |
| Output Current | Max. 200 mA per channel |
| On-State Voltage | 24 VDC nominal, open collector to 30 VDC |
| Connector Type | 10-pin screw-fastened Euroblock terminal (6 inputs, 2 outputs, DI Source, GND) |
| Isolation | 3 kV optical isolation |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate | 50 bps to 921.6 kbps (non-standard baudrates supported) |
| Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power, Storage |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx and Rx) |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC (M12 A-coded) |
| Input Current | 3.3 A @ 12 VDC, 0.82 A @ 48 VDC |
| Power Consumption | 40 W |
| General | |
| Automatic Reboot Trigger | Software-programmable watchdog timer configurable from 1 to 255 seconds |
| MTBF | 373,248 hrs |
| Physical Characteristics | |
| Dimensions | Without ears: 250 x 57 x 154 mm (9.84 x 2.23 x 6.06 in), With ears: 275 x 63 x 154 mm (10.83 x 2.47 x 6.06 in) |
| Housing | Aluminum |
| Operating temperature | -25 to 55°C (-13 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Telcordia (Bellcore) Standard TR/SR |
| EMC | EN 55032/24 |
| Weight | 2 kg (4.44 lb) |
| Anti-Vibration | EN 50155 standard |
| Safety | UL 60950-1, EN 60950-1 |
| Green Product | RoHS, CRoHS, WEEE |
| Anti-Shock | EN 50155 standard |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 |
| Mounting | Wall, DIN rail (optional), VESA (optional) |
| Isolation Protection | 1.5 kV |
