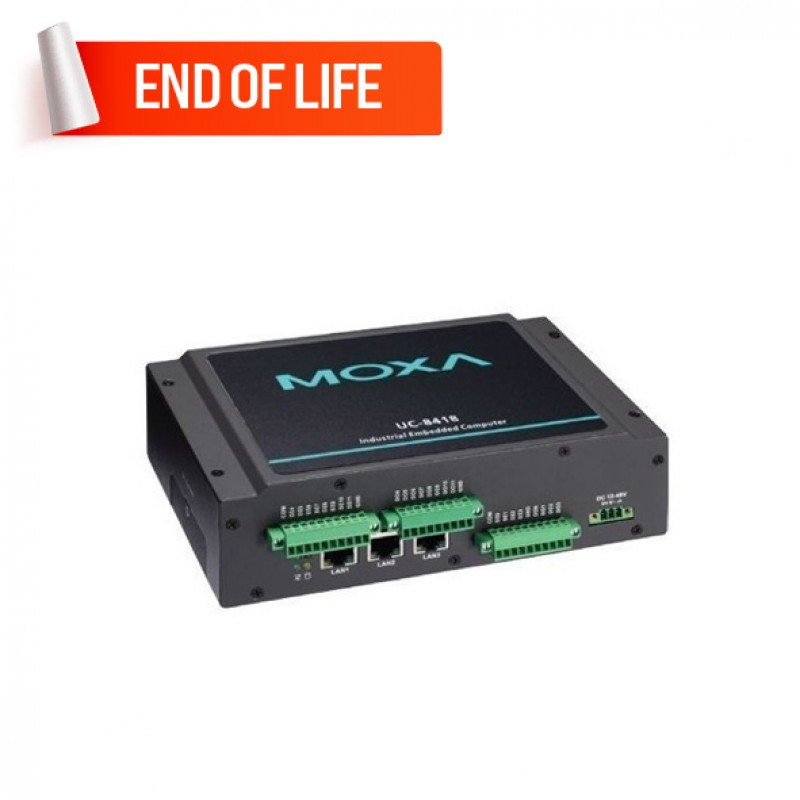

MOXA UC-8418-LX Wide Temperature Computer
- Intel XScale IXP435 533 MHz processor
- 8 RS-232/422/485 serial ports
- 2 CAN-bus ports
- 12 digital input and 12 digital output channels
- 3 10/100 Mbps Ethernet ports Moxa UC-8100 Wireless Computer Product Review
- 2 USB 2.0 hosts for mass storage devices
- Supports IPv6 function (Linux model only)
- DIN-rail or wall-mounting installation
- Robust, fanless design
- -40 to 75°C wide temperature model available
- Ready-to-run Embedded Linux or Windows CE 6.0
- Brand: MOXA
- Product Code: UC-8418-LX
Description
The UC-8416/8418 Series embedded computers come with 8 RS-232/422/485 serial ports, 3 Ethernet ports, 2 CAN ports, 8 Ethernet ports, 12 digital input channels, 12 digital output channels, a CompactFlash socket, 2 USB 2.0 hosts.
The computers use the Intel XScale IXP435 533 MHz RISC CPU. This powerful computing engine supports several useful communication functions, but will not generate too much heat. The built-in 16 MB NOR Flash ROM and 256 MB SDRAM give you enough memory to run your application software directly on the UC-8418, and the 32 MB NAND Flash can be used to provide additional data storage. Moreover, the 256 KB SRAM offers a better data retention mechanism for avoiding data loss. These computers come with various communication interfaces, such as serial ports, Ethernet ports, CAN ports, and digital input/output channels, making them ideal as a communication platform for industrial applications that require network and device communications.
The UC-8416/8418 Series comes with the Linux 2.6 or Windows CE 6.0 platform preinstalled to provide an open software operating system for software program development. Software written for a desktop PC can be easily ported to the UC-8416/8418 Series platform by using a common compiler, without needing to modify the code, making these computers an optimal solution for use with industrial applications, but with minimal cost and effort. In addition to the standard models of the UC-8416/8418 Series,-40 to 75°C wide-temperature models are also available for harsh industrial environments.
You can also find the UC-8416-LX model in the Wide Temperature Computers.
Enjoy the ease of online
inquiries for the MOXA UC-8418-LX Wide Temperature Computer. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Console Port | RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1) |
| LAN | Auto-sensing 10/100 Mbps ports (RJ45) x 3 |
| Magnetic Isolation Protection | 1.5 kV, built-in |
| Computer | |
| CPU | Intel XScale IXP435, 533 MHz |
| DRAM | DDR2 SDRAM, 256 MB (512 MB max.) |
| Flash | |
| OS (pre-installed) | Linux |
| Expansion Bus | PCI/104 onboard |
| USB | USB 2.0 hosts x 2, type A connectors |
| Serial Interface | |
| Serial Standards | RS-232/422/485 software-selectable ports (8-pin RJ45) x 8 |
| Digital Input | |
| Input Channels | DI x 12 |
| Input Voltage | 0 to 30 VDC |
| Digital Input Levels for Dry Contacts | Logic level 0: Close to GND, Logic level 1: Open |
| Digital Input Levels for Wet Contacts | Logic level 0: +3 V max., Logic level 1: +10 V to +30 V (COM to DI) |
| Connector Type | 10-pin screw-fastened terminal block (4 points, COM, GND) |
| Isolation | 3 kV optical isolation |
| Digital Output | |
| Output Channels | DO x 12, sink type |
| Output Current | Max. 200 mA per channel |
| On-State Voltage | 24 VDC nominal, open collector to 30 V |
| Connector Type | 10-pin screw-fastened terminal block (4 points, GND) |
| Isolation | 3 kV optical isolation |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate | 50 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power, Ready, Storage, Battery for SRAM |
| LAN | 10M/Link x 2, 100M/Link x 2 (on connector) |
| Serial | TxD x 8, RxD x 8 |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC (3-pin terminal block) |
| Input Current | 310 mA @ 48 VDC , 625 mA @ 24 VDC , 1350 mA @ 12 VDC |
| Power Consumption | 15 W |
| General | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| MTBF | 149,140 hrs |
| Storage Expansion | CompactFlash socket |
| Physical Characteristics | |
| Dimensions | 200 x 57 x 120 mm (7.87 x 2.24 x 4.72 in) |
| Housing | SECC sheet metal (1 mm) |
| Operating temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Telcordia (Bellcore) Standard |
| EMC | EN 55032 Class B, EN 55024, FCC Part 15 Subpart B Class B |
| Weight | 1 kg (2.22 lb) |
| Anti-Vibration | 2 Grms @ IEC-68-2-34, random wave, 5-500 Hz, 1 hr per axis |
| Safety | UL 60950-1, EN 60950-1, CCC (GB9254, GB17625.1) |
| Anti-Shock | 20 g @ IEC-68-2-27, half sine wave, 11 ms |
| Mounting | DIN rail, wall |
