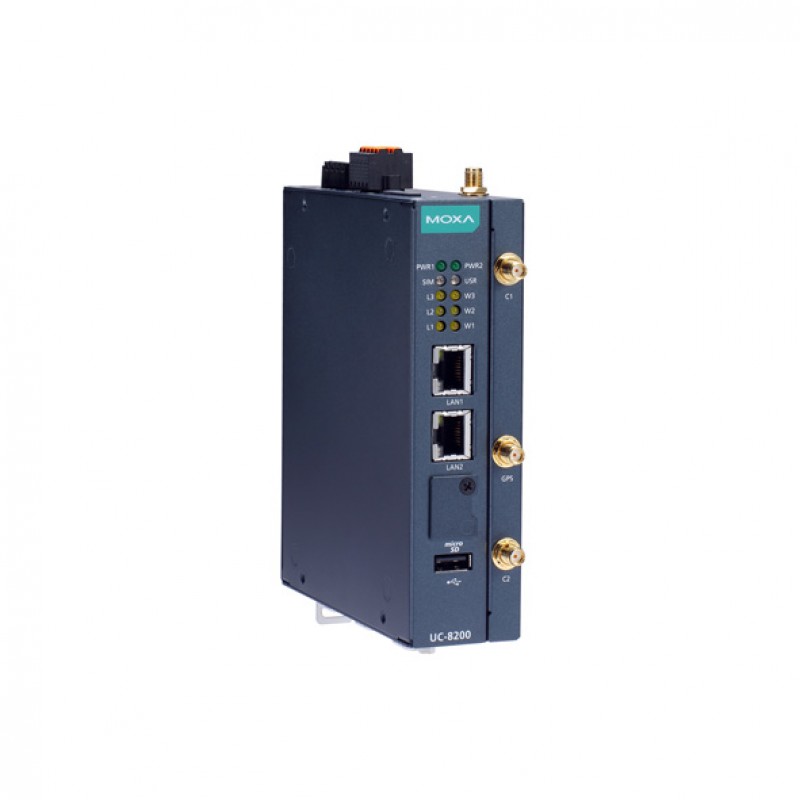

MOXA UC-8220-T-LX-US-S Industrial Embedded Computer
- CPU Armv7 Cortex-A7 dual-core 1 GHz
- 2 x RS-232/422/485 Serial ports
- 2 x 10/100/1000 Mbps Ethernet ports
- 2 x mPCIe slots for US region LTE module and Wi-Fi
- Pre-installed MOXA Industrial Linux 1 (Debian 9)
- 12 to 48 VDC input power range
- IP30-rated SECC and Metal body design
- DIN-rail and Wall mounting
- -40 to 70°C operating temperature
.png)
Description
The UC-8200 computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and one CAN port as well as dual Mini PCIe sockets to support Wi-Fi/cellular modules. These versatile capabilities let users efficiently adapt the UC-8200 to a variety of complex communications solutions.
The UC-8200 is built around a Cortex-A7 dual-core processor that has been optimized for use in energy monitoring systems but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.
Wide-temperature LTE-enabled models are available for extended-temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.
You can also find the UC-8210-T-LX, UC-8220-T-LX, and UC-8220-T-LX-AP-S models in the Wide Temperature Computers.
Easy World Automation offers the
easiest way to buy the MOXA UC-8220-T-LX-US-S Industrial Embedded Computer in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Computer | |
|---|---|
| CPU | Armv7 Cortex-A7 dual-core 1 GHz |
| Supported OS | Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL, Moxa Industrial Linux 31 (Debian 11, kernel 5.10), 2031 EOL |
| OS (pre-installed) | Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL |
| System Memory | 2 GB DDR3L |
| Graphics Controller | - |
| Storage Slot | - |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs |
| Serial Ports | 2 x RS-232/422/485 ports, software selectable (DB9 male) |
| USB | 1 x USB 2.0 host, type-A connectors |
| Expansion Slot | MicroSD (SD 3.0) socket x 1 |
| Serial Communication Parameters | |
| Baudrate | 300 bps to 921.6 kbps |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | - |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 2, Programmable x 1, SIM card indicator x 1 |
| LAN | - |
| Serial | - |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 0.8 A @ 12 VDC |
| Power Consumption | 10 W |
| General | |
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
| MTBF | 528,574 hrs |
| Physical Characteristics | |
| Dimensions | 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in) |
| Housing | SECC/Metal |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV; Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; Hazardous Locations: Class I Division 2, ATEX, IECEx; Carrier Approvals: Verizon, AT&T; Safety: UL 62368-1, EN 62368-1; Shock: IEC 60068-2-27; Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached); Green Product: RoHS, CRoHS, WEEE; IP30; Telcordia (Bellcore) Standard TR/SR |
| Weight | 750 g (1.65 lb) |
| Mounting | DIN-rail mounting, Wall mounting (with optional kit) |
