Description

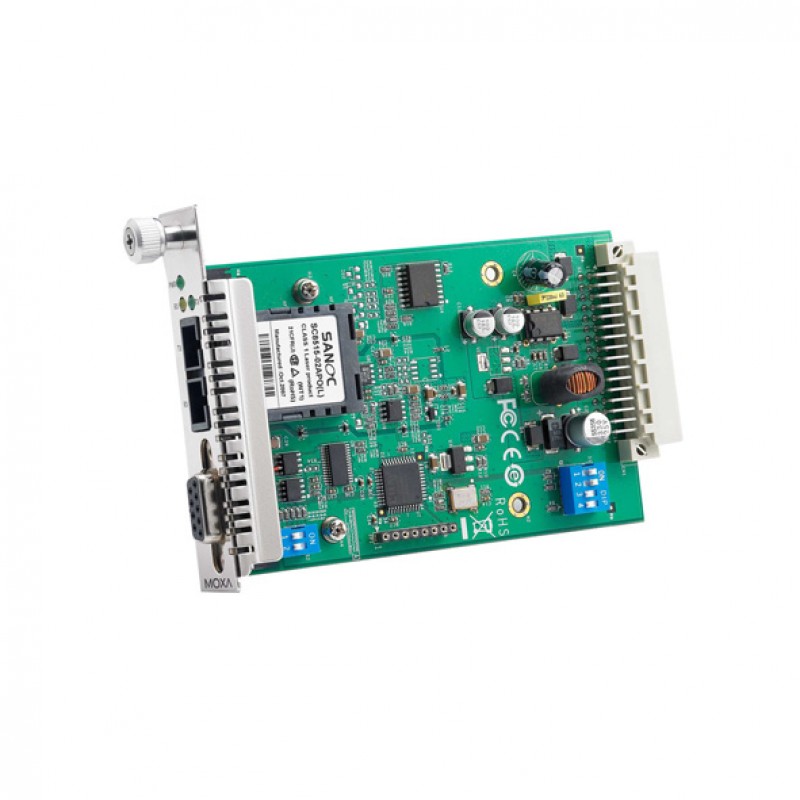

The TCF-142-RM Series slide-in modules are serial-to-fiber converters that work with the TRC-190 chassis. The modules convert from the RS-232, RS-422, or RS-485 signal to a fiber-optic signal.
Automatic Baudrate Detection
The TCF-142-RM Series can automatically detect the serial
baud rate. This is an extremely convenient feature. Even if a device’s baud
rate is changed, the signal will still be transmitted through the media
converter without any problem.
You can also find the TCF-142-M-SC-RM, TCF-142-M-ST-T, and TCF-142-S-ST-RM models in the Industrial Media Converters.
Inquire about the MOXA TCF-142-S-SC-RM Serial to Fiber Slide-in Module, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 SC Port |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| Serial port | : 2 x RS-232/422/485 |
| USB | |
| Other ports | |
| Isolation | |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Maximum data transmission distance | 40Km on fiber |
| Minimum output power converter | -5dBm |
| Sensitivity to receiving information | -25dBm |
| Wavelength | 1310 nm |
| Require cable diameter | G.652 |
| Flow Control | ADDC® (automatic data direction control) for RS-485 |
| Protocols | - |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| Power Requirements | |
| Power Consumption (Output Adapter) | 150 mA @ 12 VDC |
| Power Input Plugin ( Redundant ) | |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | |
| Input Voltage | - |
| Input Current | 150 mA @ 12 VDC |
| Connector | Terminal block |
| General | |
| Fan / Fanless | - |
| MTBF | 514,926 hrs |
| Physical Characteristics | |
| Dimensions | 86.8 x 136.5 x 21 mm (3.42 x 5.37 x 0.83 in) |
| Housing | Metal |
| Installation | - |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, IEC 60950-1; Vibration: IEC 60068-2-6 |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Weight | 105 g (0.23 lb) |
| LED Indicators | |
| LED Per Port | |
| Power | |
