Description

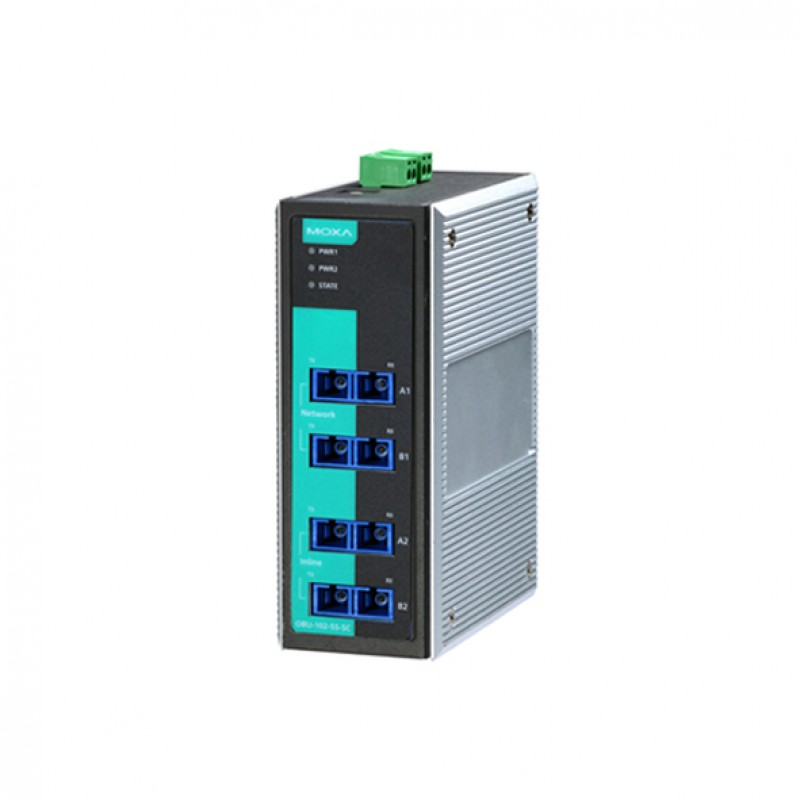

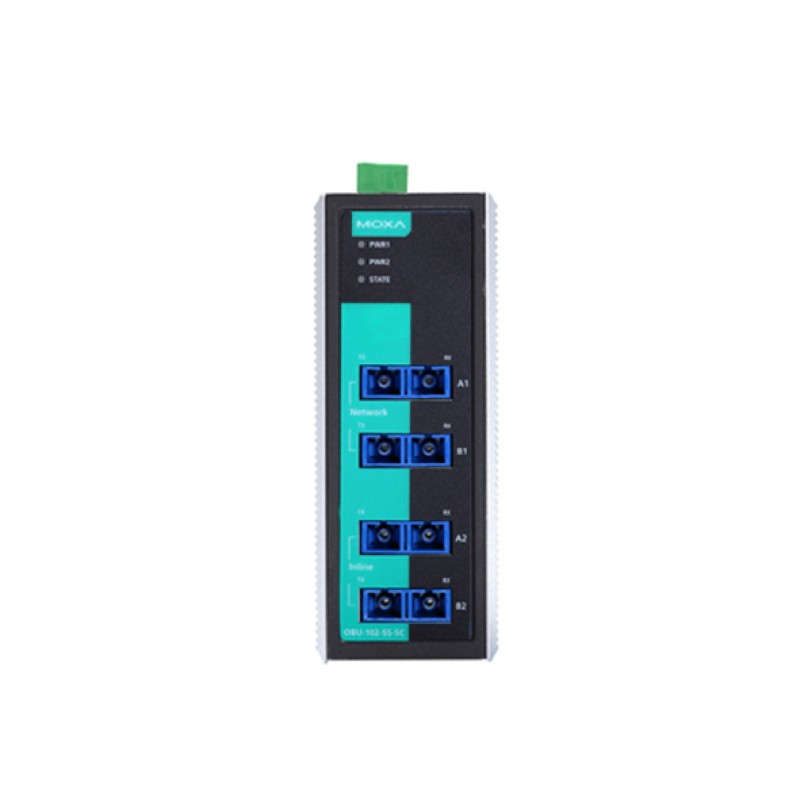

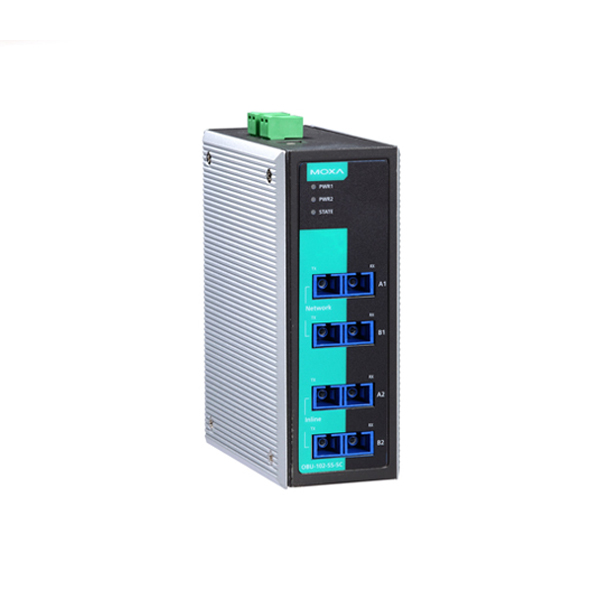

Moxa’s OBU-102 fiber-optic bypass units add bypass relay functionality to any network node. In linear topologies, a single power outage or node failure can take out an entire chunk of the network, because communications to all the network nodes further down the line are also cut. With relay bypass, that node is bypassed in the event of a failure, and the rest of the network is unaffected.
Bypass Relay Functionality
The OBU-102 Series sits between a node and the network to add bypass relay functionality to any network switches that do not already support this important function. In normal operations, the OBU-102 Series acts as a gateway that forwards network traffic to and from the network switch. However, if power is lost, the OBU-102 will bypass the unpowered switch and simply pass network traffic to the next switch in the relay.
You can also find the OBU-102-SS-LC and OBU-102-SS-ST models in the Fiber Optic Adapters and Bypass Units.
Easy World Automation offers the easiest way to buy the MOXA OBU-102-SS-SC Optical Fiber Bypass Unit in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Ports | 4 x Single-Mode Fiber, SC Female Connector |
| Bypass Properties | |
| Optical Switching Time | 10 ms (max.) |
| Insertion Loss | 1.6 dB (max.) |
| Rotary Switch Configuration | |
| Boot Delay Interval | 10 steps, each step represents a 5 second delay |
| Power Parameters | |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Input Current | 0.1 A @ 48 VDC |
| Reverse Polarity Protection | Supported |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 700 g |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 508; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30 |
