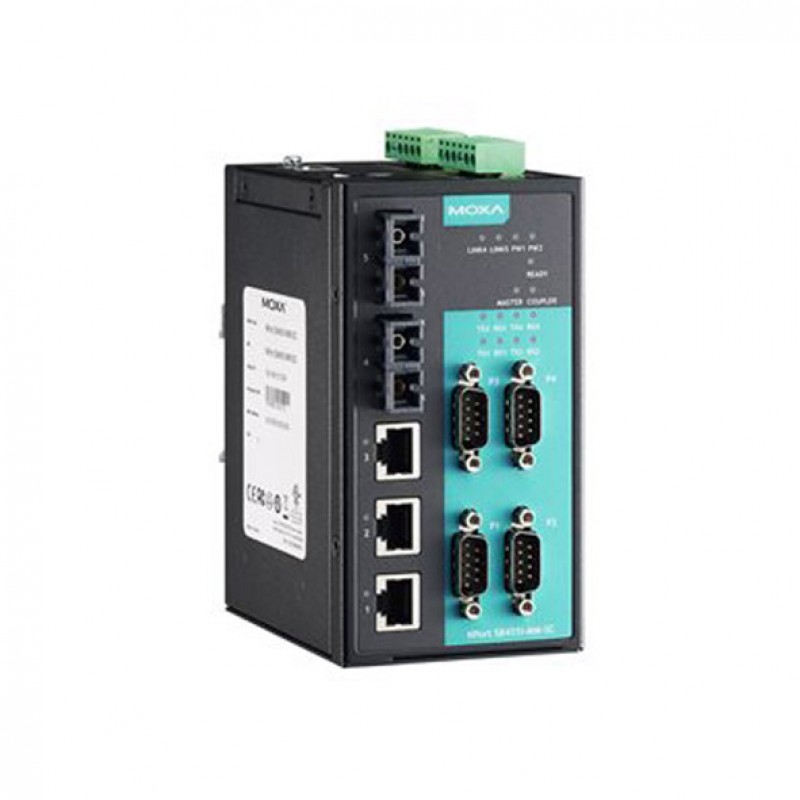

MOXA NPort S8455I-MM-SC Serial To Ethernet Device Server
- 3 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x 100BaseFX Ports (multi-mode SC connector)
- 5 KM Typical data transmission distance on fiber
- 4 x RS-232/422/485 Serial Ports (DB9 male connector)
- 2 kV Isolation protection for serial ports
- 12 to 48 VDC dual power inputs
- DIN-rail and Wall mounting
- Metal body design
- 0 to 60°C operating temperature
Description
The NPort S8000 Series combines an industrial device server with a full-function managed Ethernet switch with 4 RS-232/422/485 serial ports, allowing you to easily install, manage, and maintain the product. Combining a device server and switch in one product allows you to save space in your cabinet, reduce overall power consumption, and reduce costs since you will not need to purchase a switch and serial device server separately.
The NPort S8000 Series supports the complete array of NPort 5000 device server functions. You can network your existing serial devices by connecting up to 4 serial devices through Ethernet ports, with only basic configuration required. In addition, data transmission between the serial and Ethernet interfaces is bidirectional.
The NPort S8000 Series has a built-in full-function managed Ethernet switch that supports QoS, IGMP-snooping/GMRP, VLAN, Port Trunking, SNMPv1/v2c/v3, and IEEE 802.1X, allowing you to handle virtually any kind of application. Ethernet redundancy, which is used to increase the reliability and availability of your industrial Ethernet network, is provided by Moxa’s Turbo Ring and Turbo Chain technology (recovery time < 20 ms) or RSTP/STP (IEEE 802.1w/D).
You can also find the NPort S8455I, NPort S8455I-T, and NPort S8455I-SS-SC-T models in the Serial-to-Ethernet Converters.
You can Buy the MOXA NPort S8455I-MM-SC Serial To Ethernet Device Server via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Interface | |
|---|---|
| 100BaseFX Ports | : 2 Ports (multi-mode SC connector) |
| Interface | |
| 10/100Mb RJ45 (Megabit) Ports | : 3 Ports |
| Digital Input Channels | : 2 x Channels (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA) |
| Digital Output Channels | |
| Alarm Contact Channels | : 2 x Channels (Resistive load: 1 A @ 24 VDC) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2 |
| Serial Interface | |
| Number of Ports | 4 Ports |
| Serial Standards | RS-232/422/485 |
| Connector | DB9 male |
| Console Port | : RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.6 Kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS and XON/XOFF |
| Isolation | : 2 KV |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15 |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| MTBF | 200,951 hrs |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| Power Requirements | |
| Connection | 2 removable 6-contact terminal block(s) |
| Input Voltage | 12 to 48 VDC |
| Input Current | 935 mA @ 12 VDC |
| Security | |
| Security | HTTPS, SSL, SSH |
| Encryption | - |
| Authentication | Local Account Accessibility, RADIUS |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | 73.1 x 134 x 125 mm (2.88 x 5.27 x 4.92 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.25 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-3; Hazardous Locations: Class I Division 2; Safety: EN 60950-1, IEC 60950-1, UL 508, UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Telcordia (Bellcore) Standard TR/SR |
| Housing | Metal |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 578 g (1.27 lb) |
