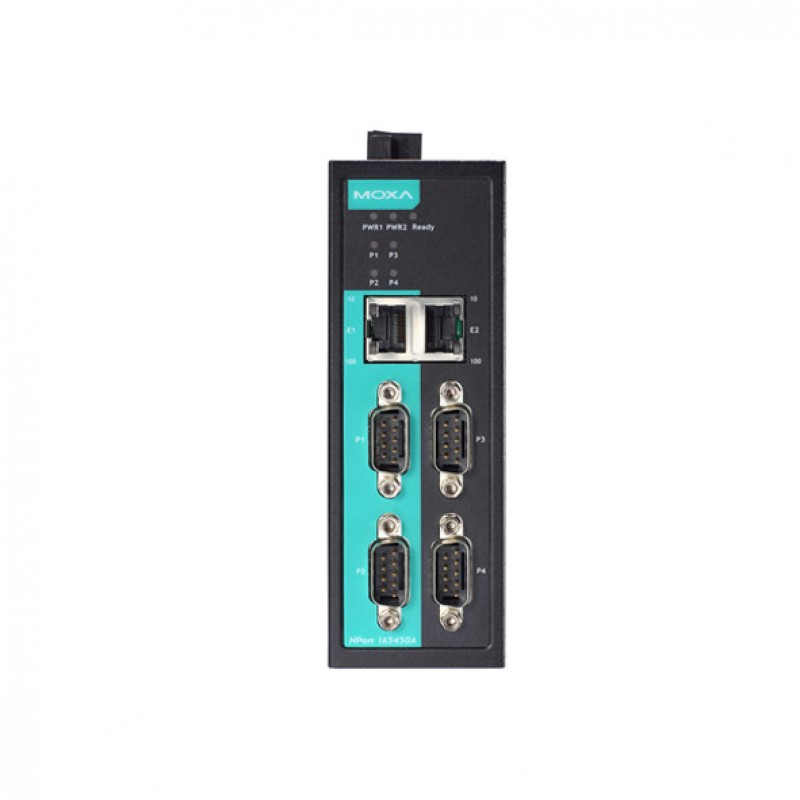

MOXA NPort IA5450A Serial to Ethernet Device Server
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 4 x RS-232/422/485 Serial Ports (DB9-M connector)
- 12 to 48 VDC Redundant dual power inputs
- Metal body design
- DIN-rail and Wall mounting
- 0 to 60°C operating temperature range
Description
The NPort IA5000A device servers are designed to connect industrial automation serial devices, such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The device servers are solidly built, come in a metal housing with screw connectors, and provide full surge protection. The NPort IA5000A device servers are extremely user-friendly, making simple and reliable serial-to-Ethernet solutions possible.
You can also find the NPort IA5450A-T, NPort IA5450AI-T, NPort IA5250AI, and NPort IA5250AI-T models in the Serial-to-Ethernet Converters.
Easy World Automation offers the
easiest way to buy the MOXA NPort IA5450A Serial to Ethernet Device Server in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | - |
| Serial Interface | |
| Number of Ports | 4 Ports |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | DB9 male (RS-232/422/485) |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF, None |
| Isolation | |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel version: 2.4.x, 2.6.x, 3.x, 4.x |
| MTBF | 763,711 hrs |
| Automatic Reboot Trigger | - |
| Power Requirements | |
| Connection | Terminal block |
| Input Voltage | 12 to 48 VDC |
| Input Current | 374 mA @ 12 VDC |
| Security | |
| Security | Protocols: SNMPv3 |
| Encryption | HTTPS, AES-128, RSA-1024, SHA-1, SHA-256 |
| Authentication | Local database |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | 45.8 x 134 x 105 mm (1.8 x 5.28 x 4.13 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Hazardous Locations: : UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx; Safety: UL 508; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
| Housing | Metal |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 560 g (1.23 lb) |
