Description
The NPort® 6000 is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.
You can also find the NPort 6450-T, NPort 6610-16-48V, NPort 6610-32, and NPort6610-32-48V models in the Serial-to-Ethernet Converters.

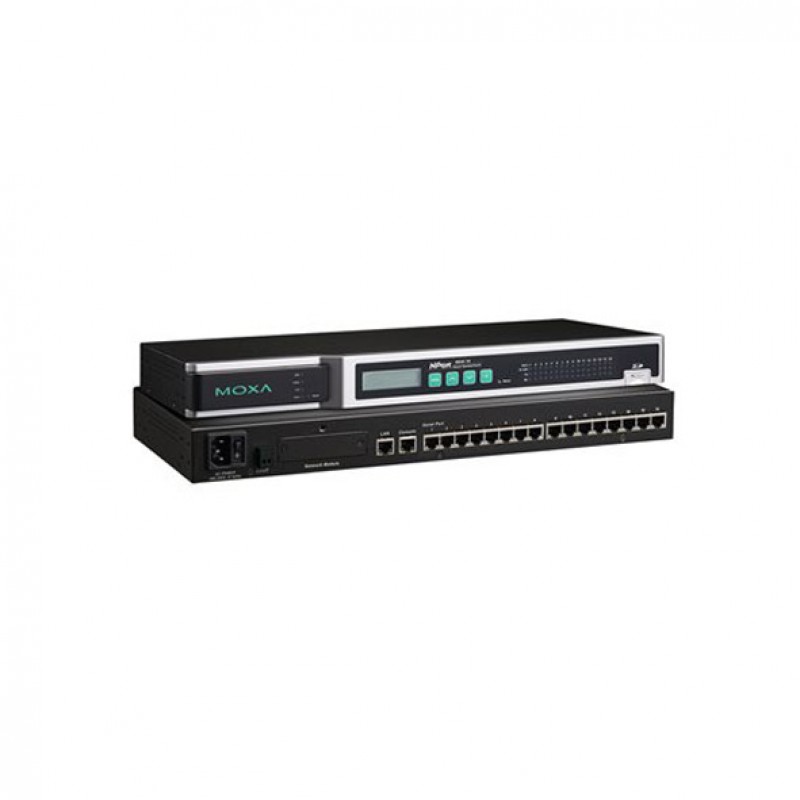

Experience the convenient way to purchase the MOXA NPort 6610-16 Serial to Ethernet Device Server in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | : Resistive load: 1 A @ 24 VDC |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | TLS and SSH |
| Serial Interface | |
| Number of Ports | 16 Ports |
| Serial Standards | RS-232 |
| Connector | 8-pin RJ45 |
| Console Port | : RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, IPv4/IPv6, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, PPPOE, ICMP |
| Compatible operating systems | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003, Windows Embedded CE 6.0/5.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel version: 2.4.x, 2.6.x, 3.x, 4.x |
| MTBF | 102,373 hrs |
| Automatic Reboot Trigger | Built-in WDT |
| Power Requirements | |
| Connection | - |
| Input Voltage | 100 to 240 VAC |
| Input Current | 192 mA @ 100 VAC |
| Security | |
| Security | Protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2 |
| Encryption | HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384 |
| Authentication | Local database, RADIUS, TACACS+ |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | with ears: 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in), without ears: 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in) |
| Installation | Rack mounting (with optional kit) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power 1 kV; Signal 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 60950-1; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-34; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard |
| Housing | Metal |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 3,580 g (7.89 lb) |
