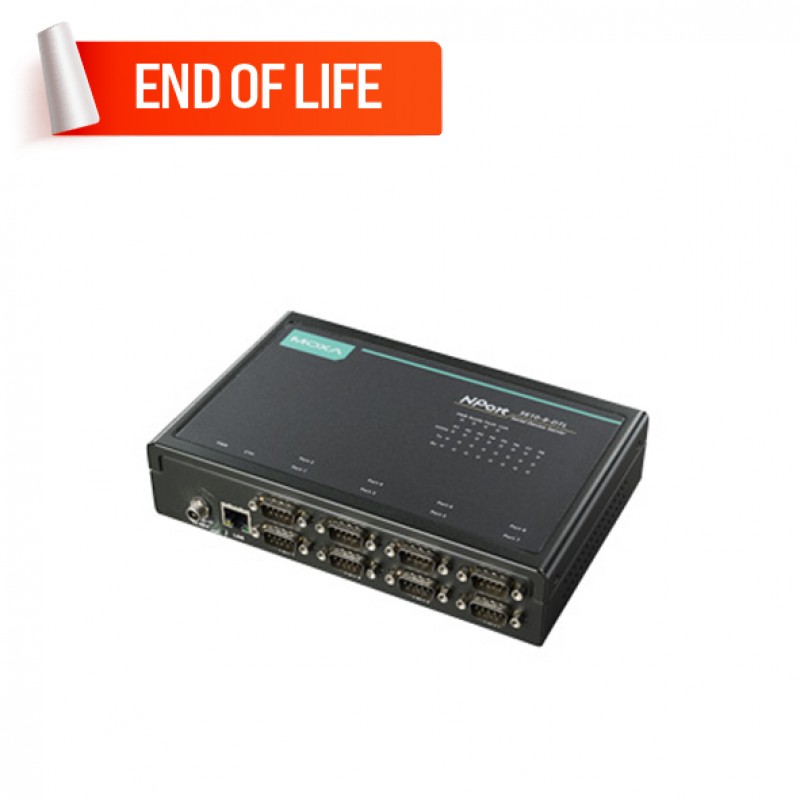

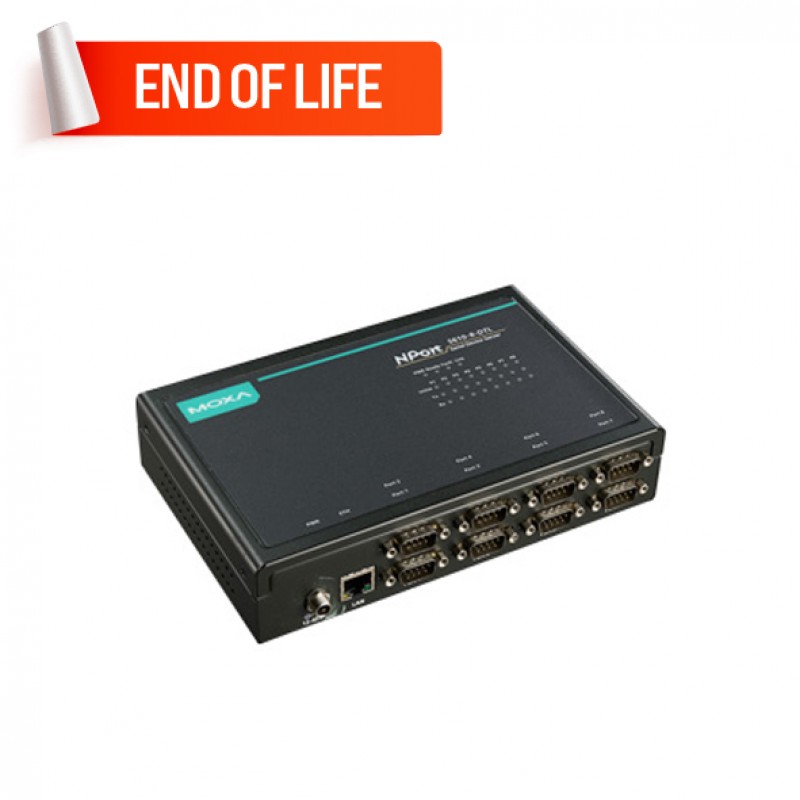

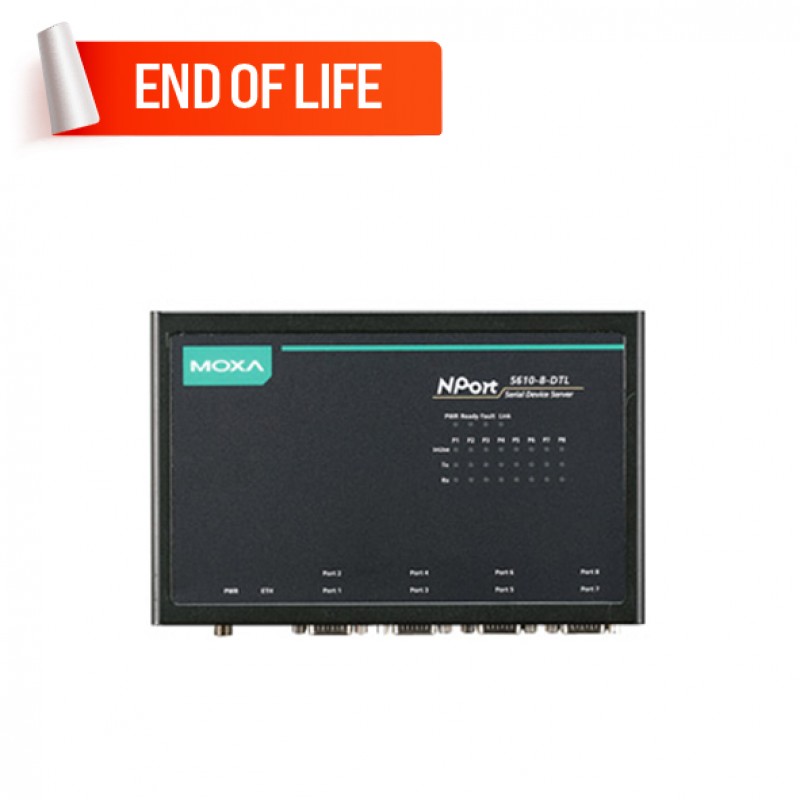

MOXA NPort 5610-8-DTL w/ adaptor Serial to Ethernet Device Server
- Serial to Ethernet Converter
- 1 10/100 Mbps Ethernet port and 8 RS-232 serial ports
- Power Input 12V DC to 48V DC
- Brand: MOXA
- Product Code: NPort 5610-8-DTL w/ adaptor
Description
NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize the management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.
The NPort 5650-8-DT device servers support selectable 1-kilo-ohm and 150-kilo-ohm pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.
You can also find the NPort 5610-8-DTL w/o adaptor and NPort 5610-8-DTL-T models in the Serial-to-Ethernet Converters.
Easy World Automation offers the
easiest way to buy the MOXA NPort 5610-8-DTL w/ adaptor Serial to Ethernet Device Server in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10Mbps RJ-45 Ports | |
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| RS-232 Ports | : 8 Ports |
| RS-422/485 Ports | |
| RS-232/422/485 Ports | |
| Serial port specifications | |
| Serial connection type | DB9-M |
| Serial Communication Parameters | Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Data transfer speed ( Baudrate ) | 0.05Kps to 921.6kbps |
| Protection against electrostatic discharge | 15KV |
| Electrical isolation | |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | - |
| Maximum direct range | - |
| General | |
| Management | Web Console, Serial Console, Telnet Console, Windows Utility |
| MTBF | 953,388 hour |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, HP-UX 11i |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x |
| Power Requirements | |
| Power Consumption (Output Adapter) | 12V DC, 0.34A |
| Security | |
| Security | - |
| Encryption | - |
| Features and capabilities | |
| Display | |
| Keyboard | |
| The automatic restart (reset) | : WDT |
| Alarm feature | : buzzer and RTC |
| Standards and protocols | |
| Network protocol | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217 |
| Data transfer protocol | - |
| Physical Characteristics | |
| Dimensions | 229x46x125mm |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz, 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs |
| Marine | |
| Medical | |
| LAN port Protection against magnetic fields | 1.5KV |
| Housing | Metal |
| Operating Temperature | 0 to 60 ° C |
| Storage Temperature | -40 to 75 ° C |
| Altitude | - |
| Operation Humidity | 5% to %95 RH non-condensing |
| Weight | 1.76Kg |
