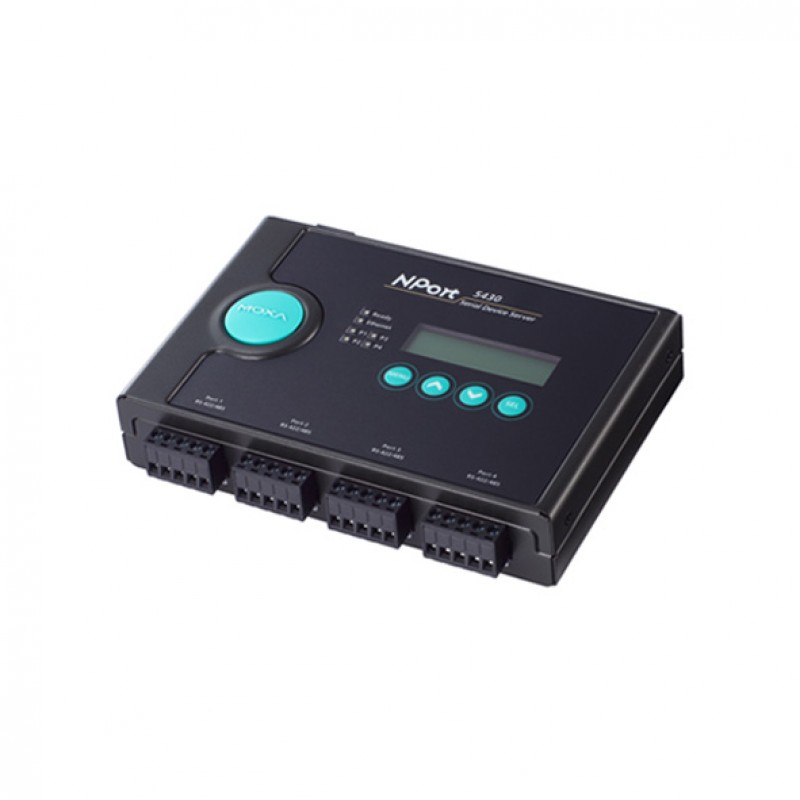

MOXA NPort 5430 w/o Adapter Serial to Ethernet Device Server
- 1 x 10/100BaseT(X) Ports (RJ45 connector)
- 4 x RS-422/485 Serial ports (TB connector)
- 12V DC to 48V DC dual power inputs (24 VDC for DNV)
- Desktop, DIN-rail, and Wall mounting
- Metal body design
- 0 to 55°C operating temperature
- Without adapter
Description
NPort® 5400 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, a user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.
Network Readiness for up to 4 Serial Devices
NPort® 5400 device servers can conveniently and transparently connect up to four serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bidirectional. By using NPort® device servers, you not only protect your current hardware investment but also allow for future network expansion. You can both centralize the management of your serial devices and distribute management hosts over the network.
Independent Operation Mode for Each Serial Port
NPort® 5400 device servers can be used to connect different devices for remote data polling or event handling over a TCP/IP network. Each serial port on the NPort® 5400 operates independently to provide maximum versatility. For example, port 1 can operate in Driver mode, port 2 in TCP Server mode, and ports 3 and 4 in TCP Client mode.
You can also find the NPort 5430I w/ Adapter, NPort 5430I w/o Adapter, and NPort 5450 w/ Adapter models in the Serial-to-Ethernet Converters.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA NPort 5430 w/o Adapter Serial to Ethernet Device Server through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | - |
| Serial Interface | |
| Number of Ports | 4 Ports |
| Serial Standards | RS-422/485 |
| Connector | Terminal block |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | - |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP |
| Compatible operating systems | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | macOS Versions: 10.12 to 10.15, 11.x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| MTBF | 826,688 hrs |
| Automatic Reboot Trigger | Built-in WDT |
| Power Requirements | |
| Connection | 1 removable 3-contact terminal block(s), Power input jack |
| Input Voltage | 12 to 48 VDC, 24 VDC for DNV (Dual power inputs) |
| Input Current | 320 mA @ 12 VDC |
| Security | |
| Security | Protocols: HTTPS (TLS 1.2), SNMPv3 |
| Encryption | HTTPS, AES-128, RSA-1024, SHA-1, SHA-256 |
| Authentication | Local database |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | with ears: 181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in), without ears: 158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in) |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 62368-1; Maritime: DNV; Telcordia (Bellcore) Standard TR/SR |
| Housing | Metal |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 740 g (1.63 lb) |
