Description
The NPort 5200 serial device servers are designed to make your industrial serial devices Internet-ready in no time. The compact size of NPort 5200 serial device servers makes them the ideal choice for connecting your RS-232 (NPort 5210/5230/5210-T/5230-T) or RS-422/485 (NPort 5230/5232/ 5232I/5230-T/5232-T/5232I-T) serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices from anywhere over a local LAN or the Internet. The NPort 5200 Series has a number of useful features, including standard TCP/IP protocols and choice of operation modes, Real COM/TTY drivers for existing software, and remote control of serial devices with TCP/IP or traditional COM/TTY Port.
NPort 5200 device servers can operate in TCP Server, TCP Client, or UDP operation mode, ensuring compatibility with software based on a standard network API (Winsock, BSD Sockets).
You can also find the NPort 5230-T, NPort 5230 w/o Adapter, and NPort 5210-T models in the Serial-to-Ethernet Converters.
Explore our extensive range of

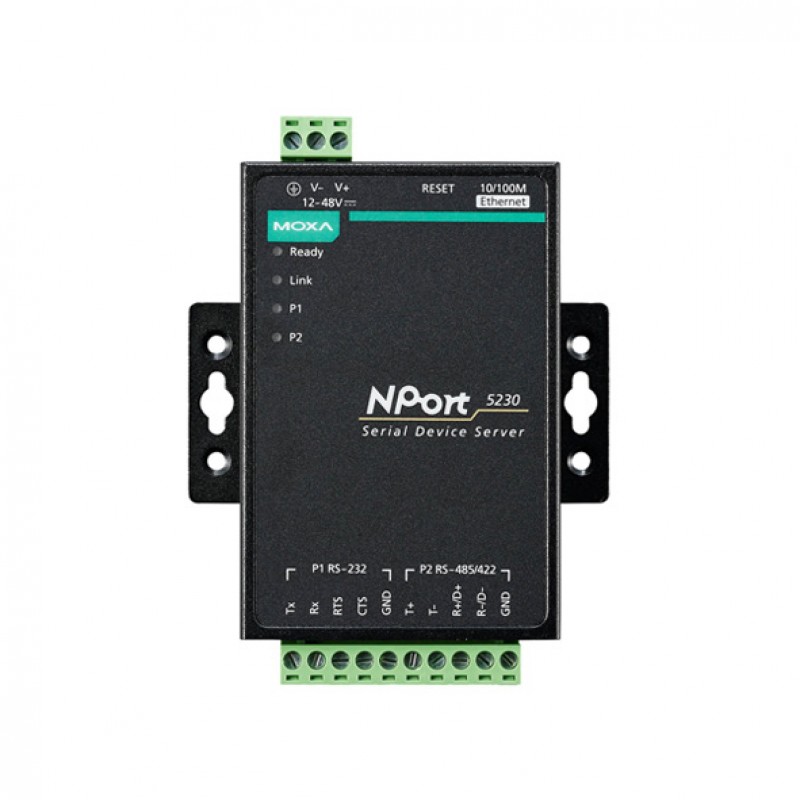

industrial automation products such as MOXA NPort 5230 w/ Adapter Serial to Ethernet Device Server in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10Mbps RJ-45 Ports | |
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| RS-232 Ports | : 1 Port |
| RS-422/485 Ports | : 1 Port |
| RS-232/422/485 Ports | |
| Serial port specifications | |
| Serial connection type | TB |
| Serial Communication Parameters | Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 و Parity : None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Data transfer speed ( Baudrate ) | 0.11Kbps to 230.4Kbps |
| Protection against electrostatic discharge | 15KV |
| Electrical isolation | |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | Web Console, Telnet Console, Windows Utility |
| MTBF | 106955 hour |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x |
| Power Requirements | |
| Power Consumption (Output Adapter) | 12V DC, 0.325A to 48V DC |
| Security | |
| Security | - |
| Encryption | - |
| Features and capabilities | |
| Display | |
| Keyboard | |
| The automatic restart (reset) | : WDT |
| Alarm feature | : Buzzer and RTC |
| Standards and protocols | |
| Network protocol | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2 |
| Data transfer protocol | - |
| Physical Characteristics | |
| Dimensions | 67x100.4x22mm |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 55024 |
| Marine | DNV |
| Medical | |
| LAN port Protection against magnetic fields | 1.5KV |
| Housing | Metal |
| Operating Temperature | 0 to 55 ° C |
| Storage Temperature | -40 to 75 ° C |
| Altitude | 2000m |
| Operation Humidity | 5% تا %95 RH non-condensing |
| Weight | 0.36Kg |
