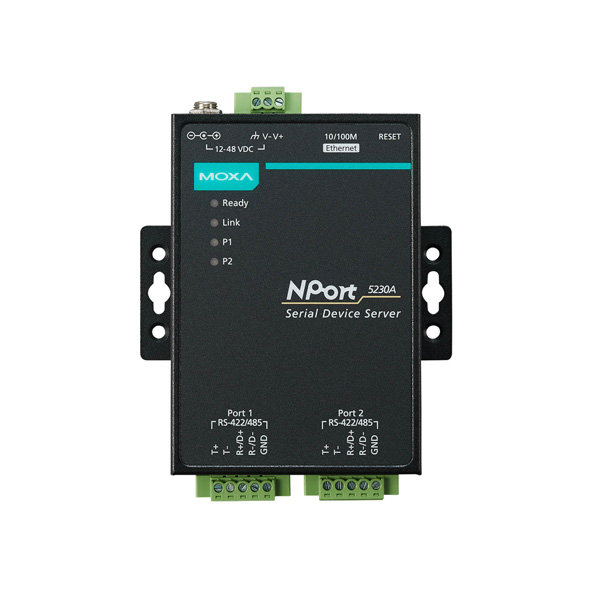

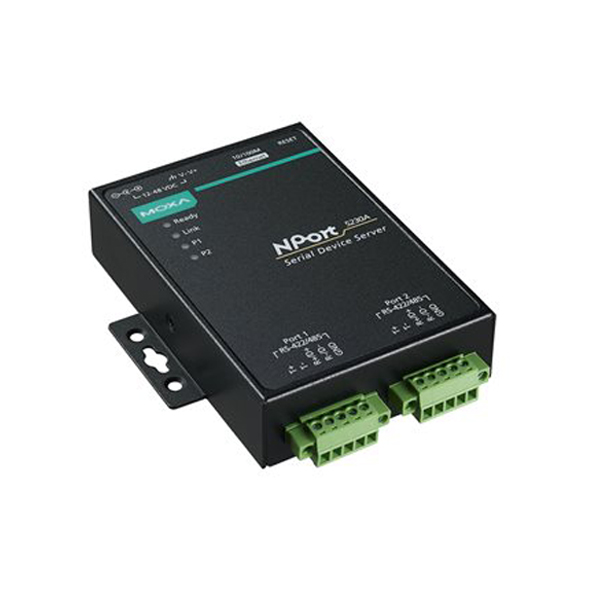

MOXA NPort 5230A w/o Adapter Serial to Ethernet Device Server
- 1 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x RS-422/485 Serial ports (TB Connector)
- 12V DC to 48V DC dual power inputs
- Desktop, DIN-rail, and Wall mounting
- Metal body design
- 0 to 55°C operating temperature
- Without adapter
Description
The NPort® 5200A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5200A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.
Surge Protection for Serial, Ethernet, and Power
Surge, which is typically caused by high voltages that result from switching and lightning transients is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5200A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.
3-Step Web-based Configuration
The NPort® 5200A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® 5200A’s web console guides users through three simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this fast 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort.
You can also find the NPort 5210A w/ Adapter, NPort 5250A-T, and NPort 5230A w/ Adapter models in the Serial-to-Ethernet Converters.
You can explore our wide range of
products and enquire about the MOXA NPort 5230A w/o Adapter Serial to Ethernet Device Server for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | - |
| Serial Interface | |
| Number of Ports | 2 Ports |
| Serial Standards | RS-422/485 |
| Connector | 5-pin terminal block |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | - |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, Telnet, TCP/IP, UDP |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15 |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| MTBF | 847,750 hrs |
| Automatic Reboot Trigger | Built-in WDT |
| Power Requirements | |
| Connection | 1 removable 3-contact terminal block(s), Power input jack |
| Input Voltage | 12 to 48 VDC (Dual power inputs) |
| Input Current | 119 mA @ 12 VDC |
| Security | |
| Security | Protocol: HTTPS (TLS 1.2) |
| Encryption | AES-128, RSA-1024, SHA-256, HTTPS, SHA-1 |
| Authentication | Local database |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | with ears: 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in), without ears: 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in) |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
| Standards and Certifications | EMC: EN 55032/35; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; EMI: CISPR 32, FCC Part 15B Class A; Safety: UL 60950-; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
| Housing | Metal |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 340 g (0.75 lb) |
