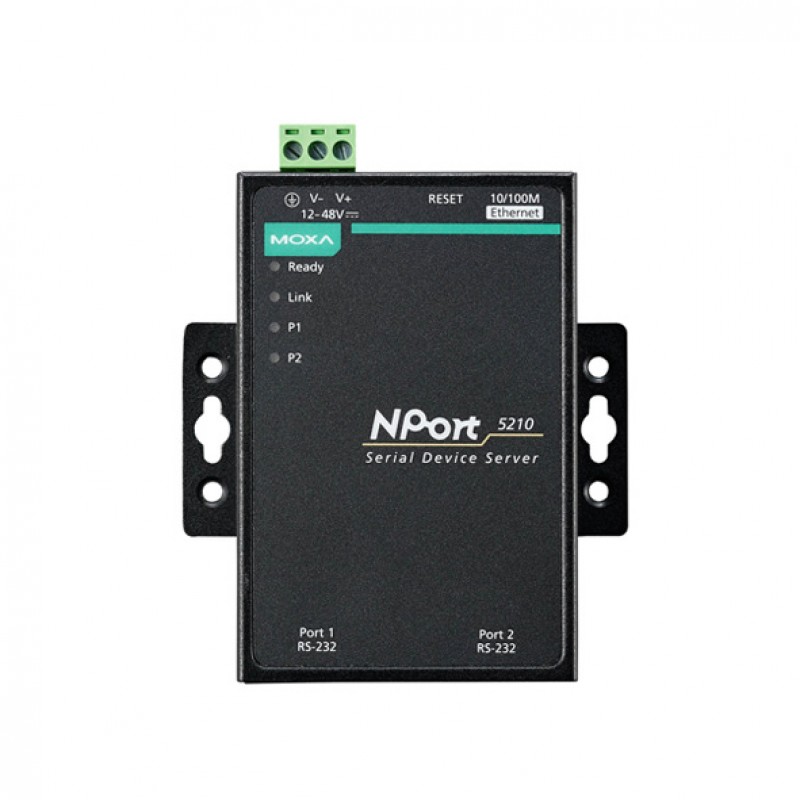

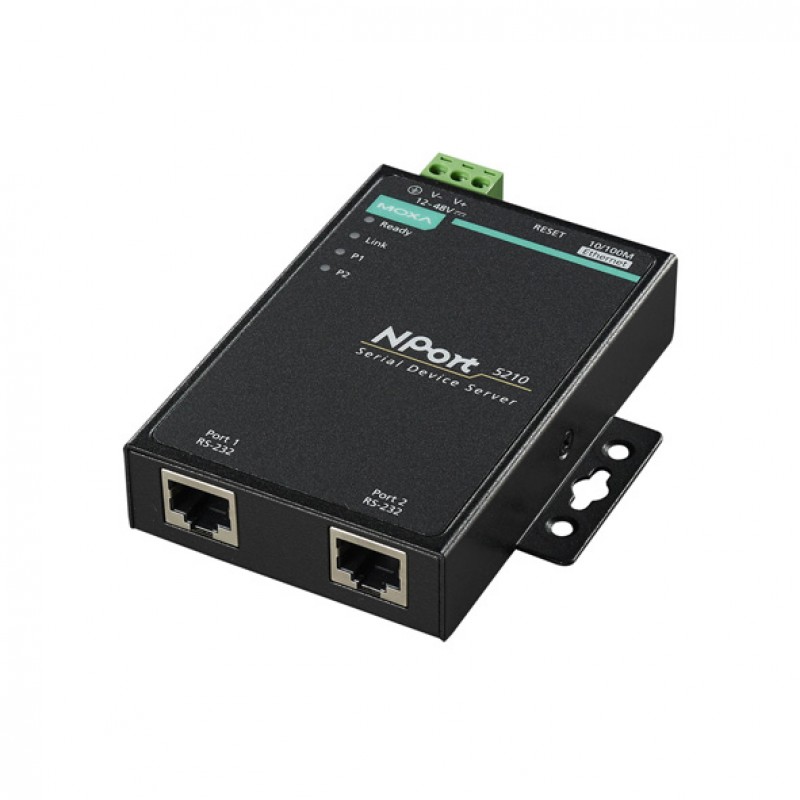

MOXA NPort 5210 w/o Adapter Serial to Ethernet Device Server
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 2 x RS 232 Serial ports (8-pin RJ45 connector)
- 12 to 48 VDC input power range
- Desktop, DIN-rail, and Wall mounting
- Metal body design
- 0 to 55°C operating temperature
- Without adapter
Description
The NPort 5200 serial device servers are designed to make your industrial serial devices Internet-ready in no time. The compact size of NPort 5200 serial device servers makes them the ideal choice for connecting your RS-232 (NPort 5210/5230/5210-T/5230-T) or RS-422/485 (NPort 5230/5232/ 5232I/5230-T/5232-T/5232I-T) serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices from anywhere over a local LAN or the Internet. The NPort 5200 Series has a number of useful features, including standard TCP/IP protocols and choice of operation modes, Real COM/TTY drivers for existing software, and remote control of serial devices with TCP/IP or traditional COM/TTY Port.
Standard TCP/IP Interface and Broad Choice of Operation
Modes
NPort 5200 device servers can operate in TCP Server, TCP Client, or UDP operation mode, ensuring compatibility with software based on a standard network API (Winsock, BSD Sockets).
Real COM/TTY Drivers for Existing Software
With the Real COM/TTY drivers that are provided with each
NPort, software designed for communication with COM/TTY ports can be instantly
and seamlessly integrated into a TCP/IP network. This is an excellent no-fuss
way to preserve your software investment and enjoy the benefits of networking
your serial devices.
You can also find the NPort 5230 w/o Adapter, NPort 5232 w/ Adapter, and NPort 5232I w/ Adapter models in the Serial-to-Ethernet Converters.
Inquire about the MOXA NPort 5210 w/o Adapter Serial to Ethernet Device Server, designed
for industrial automation solutions. Feel free to get in touch with our sales
team to give you the best solutions at the best global price in the Middle East
(UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | - |
| Serial Interface | |
| Number of Ports | 2 Ports |
| Serial Standards | RS-232 |
| Connector | 8-pin RJ45 |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400 |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | DHCP Client, IPv4, SNTP, SMTP, SNMPv1, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, Telnet, ICMP |
| Compatible operating systems | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | macOS versions: 10.12 to 10.15, 11.x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| MTBF | 381,342 hrs |
| Automatic Reboot Trigger | Built-in WDT |
| Power Requirements | |
| Connection | 1 removable 3-contact terminal block(s) |
| Input Voltage | 12 to 48 VDC |
| Input Current | 325 mA @ 12 VDC |
| Security | |
| Security | |
| Encryption | |
| Authentication | Local database (password only) |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | with ears: 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in), without ears: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in) |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 60950-1; Medical: EN 55011: 2007+A2: 2007 Class A (Group 1) compliant, EN 60601-1-2: 2007 compliant; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
| Housing | Metal |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 340 g (0.75 lb) |
