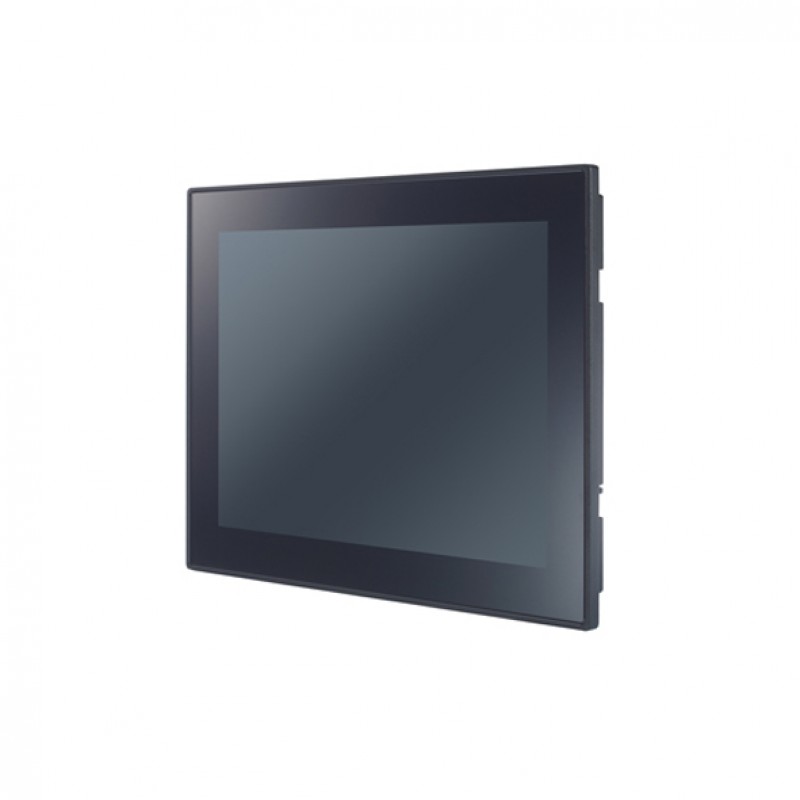

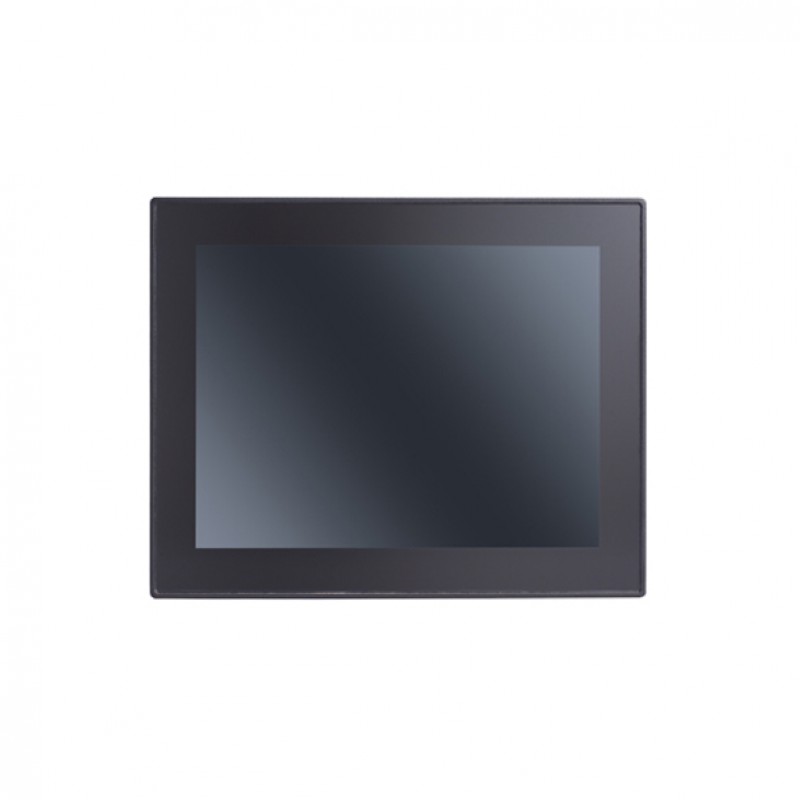

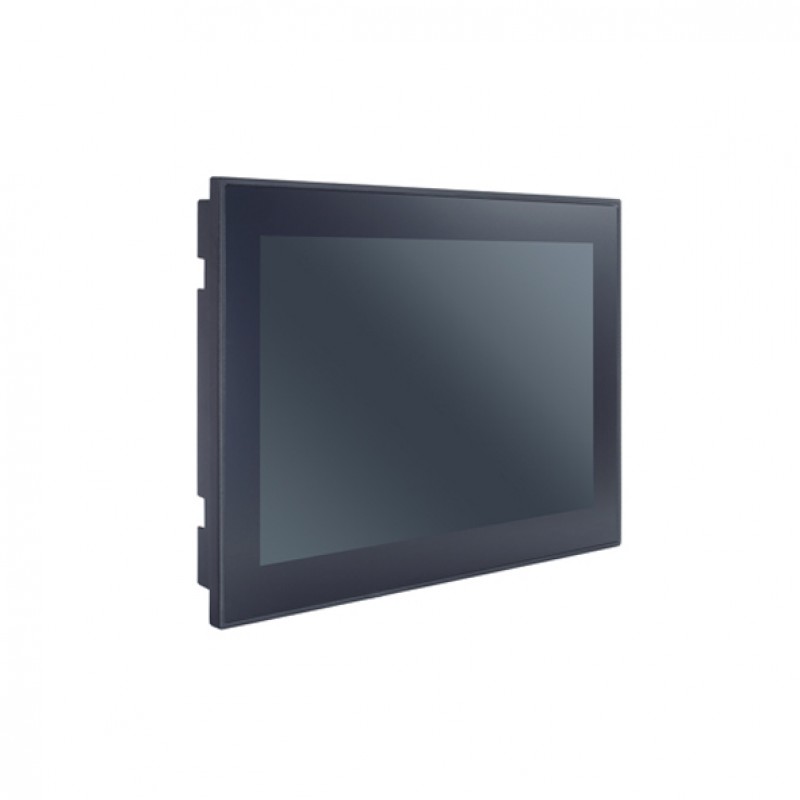

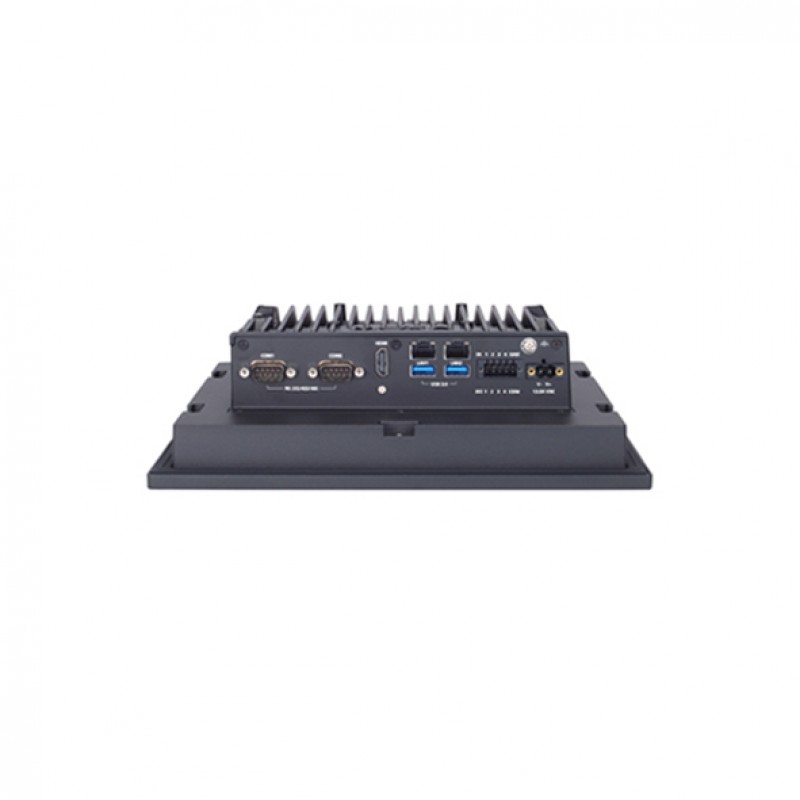

MOXA MPC-3100-E2-T Panel Computer
- 10.4-inch panel computer (1000 nits)
- CPU Intel Atom® Elkhart Lake dual-core x6211E
- 2 x 10/100/1000 Mbps ports (RJ45 connector)
- 2 x RS-232/422/485 Serial Ports (DB9 male connector)
- Metal body design (IP66 for front, IP20 for rear)
- 12/24 VDC input power range
- -30 to 60°C operating temperature
.png)
Description
The MPC-3100 10.4-inch panel computers with Intel Atom® x6211E dual-core or x6425E quad-core processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software-selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-3100 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.
The MPC-3100 panel computers are designed for the -30 to 60°C temperature range and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. This makes the computers reliable industrial platforms for harsh, hot, outdoor environments like oil and gas fields and drilling platforms. The MPC-3100 also features a 400–nit or 1000–nit LCD panel, offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen for an excellent user experience in outdoor applications.
You can also find the MPC-3100-E2-LB-T, MPC-3100-E4-LB-T, and MPC-3100-E4-T models in the Displays and Panel Computers.
Explore our extensive range of industrial automation
products such as MOXA MPC-3100-E2-T Panel Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh),
and Oman). Submit your inquiry to enjoy
the on-time delivery service. Our sales experts will contact you to fulfill all
your industrial automation needs.
Specification
| Computer | |
|---|---|
| CPU | Intel Atom® Elkhart Lake dual-core x6211E 1.30 GHz |
| Supported OS | Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11 (kernel 5.10), Ubuntu 22.04 LTS (kernel 5.1x), RHEL 9 (kernel 5.14) |
| OS (pre-installed) | - |
| System Memory | 8 GB DDR4 2400 MHz (32 GB max) |
| Graphics Controller | Intel® HD Graphics |
| Storage Slot | CFast slot x 1, SD slots x 1, SD 3.0 interface (SDHC/SDXC) |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs |
| Serial Ports | 2 x RS-232/422/485 port (software-selectable, DB9 male connector) |
| USB | 2 x USB 3.0 hosts, type-A connectors |
| Expansion Slot | - |
| Display | |
| Panel Size | 10.4 in (viewable image) |
| Aspect Ratio | 4:3 |
| Response Time | 25 ms |
| Contrast Ratio | 1000:1 (typ.) |
| Viewing Angles | 176°/176° |
| Touch | Projective Capacitive touchscreen (PCAP) with Glove Support |
| Pixels | 1024 x 768 |
| Pixel Pitch (RGB) | 0.2055 (H) x 0.2055 (V) mm |
| Light Intensity | 1000 nits |
| Active Display Area | 210.4 (H) x 157.8 (V) mm |
| Max. No. of Colors | 262k, 16.7M (8-bit/color) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | - |
| Power Requirements | |
| Input Voltage | 12/24 VDC |
| Power Consumption | 42 W, (max, including full USB loading) |
| Physical Characteristics | |
| Dimensions | 260 x 210 x 73.8 mm (10.28 x 8.27 x 2.91 in) |
| Housing | Metal |
| Operating temperature | -30 to 60°C (-22 to 140°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV; Environmental Testing: IEC 60068-2-1, DNV-CG-0339, IEC 60068-2-1, IEC 60945, IEC 60068-2-2, DNV-CG-0339, IEC 60068-2-2, IEC 60945, IEC 60068-2-30, DNV-CG-0339; Hazardous Locations: ATEX Zone 2, Class I Division 2, IECEx Zone 2; Maritime: DNV-CG-0339, IEC 60945, IACS E10; Safety: IEC 62368-1, UL 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, DNV-CG-0339, IEC 60945, IEC 60068-2-64, DNV-CG-0339; Green Product: RoHS, CRoHS, WEEE; IP66; IP20 |
| Weight | 2,300 g (5.07 lb) |
| Mounting | Panel mounting |
