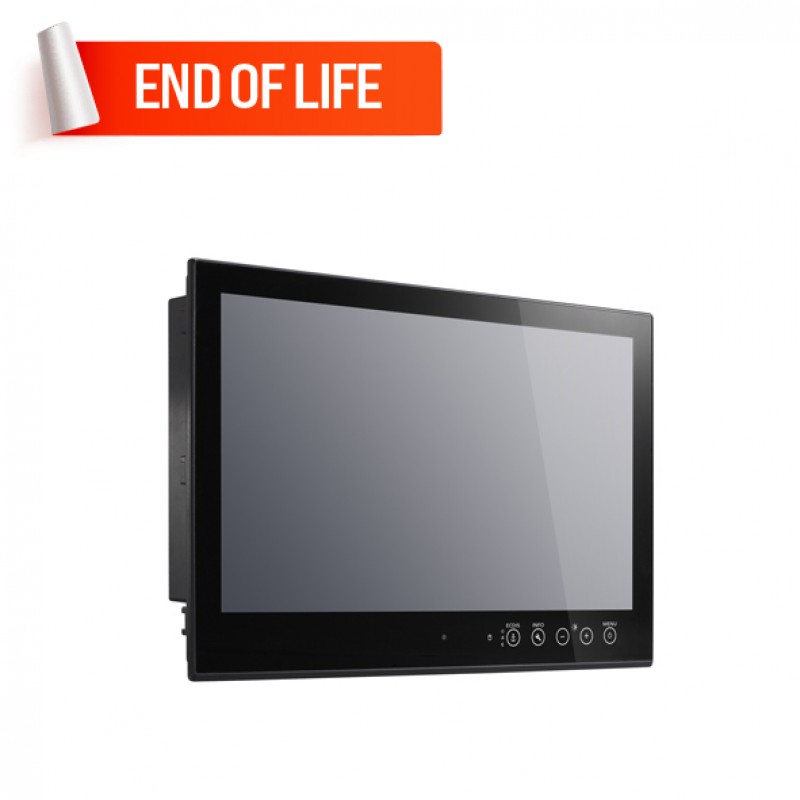

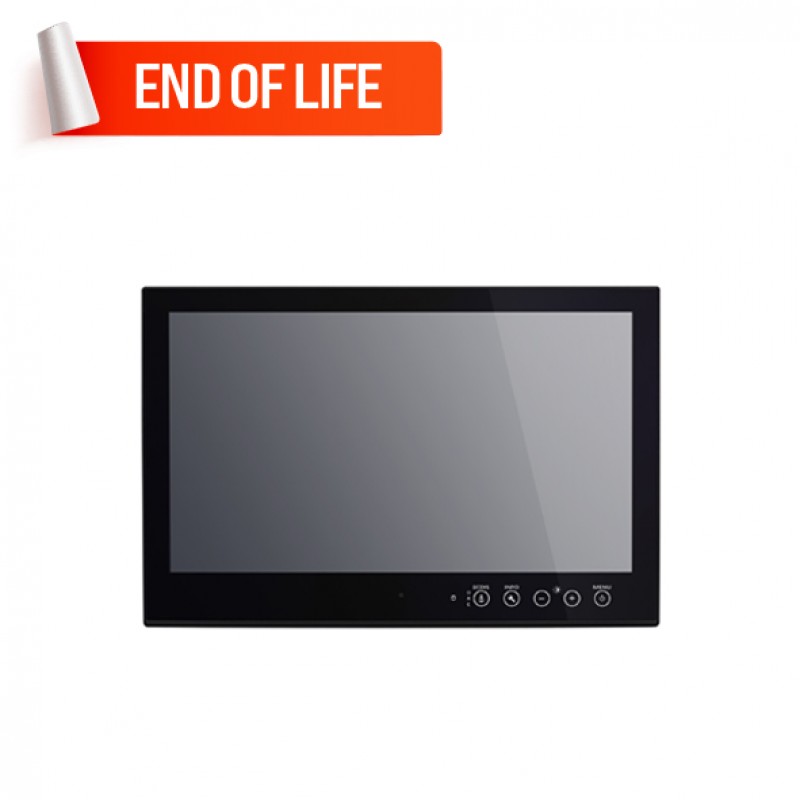

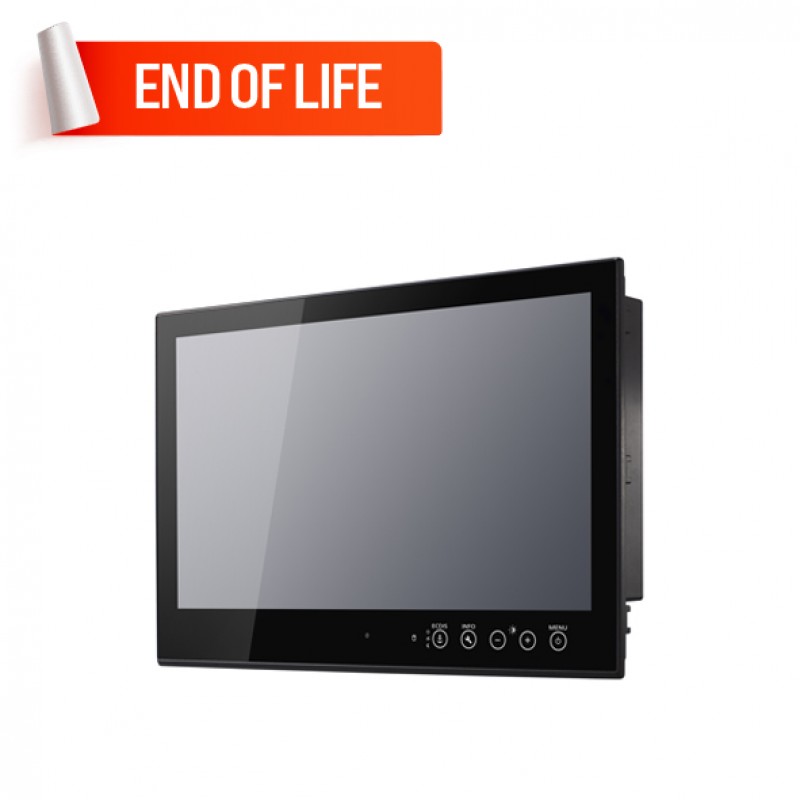

MOXA MPC-2240Z Panel Computer
- 24-inch panel computer (300 nits)
- CPU Intel® Celeron® 1047UE 1.40 GHz
- 2 x 10/100/1000 Mbps Ethernet ports (RJ45 connector)
- 2 x RS/232/422/485 Serial ports (DB9 male connector)
- Metal body design (IP54 for front, IP20 for rear)
- Multiple power supplies (100 to 240 VAC, 18 to 34 VDC)
- Supports Capacitive Touch (PCAP)
- -15 to 55°C operating temperature range
-01.png)
Description
MPC-2240 Series panel computers feature Intel processors Ivy Bridge Core or Celeron and built-in 4 GB system memory, delivering a reliable, high-performance platform of wide versatility for use in industrial marine environments. With its RS-232/422/485 serial, NMEA 0183, and Gigabit Ethernet ports, the MPC- 2240 panel computer supports a wide variety of serial- and marine-specific interfaces alongside high-speed IT communications, all with native network redundancy.
The MPC-2240 Series comes with a range of standard display enhancements useful in industrial environments (including 0 to 100% full-range dimming, 178°/178° wide viewing angles, optional optical bonding, and/or multi-touch screen), as well as Moxa’s innovative SavvyTouch display controls. The MPC-2240 panel computers are compliant with several marine industry standards, including IEC 60945 4th, IEC 61174, IEC 61162, DNV 2.4, and IACS E10, verifying their resilience and durability in marine operations. An optional IP65-rated unibody shell provides strong additional protection against the harsh conditions found in marine environments. The MPC-2240 Series delivers rugged, type-approved, high-performance, and user-friendly panel computers that are perfect for ECDIS navigation systems and other marine IBS applications.
End of Life Product - No Replacement
Please note that the MPC-2240 Series has been phased out. You can explore the MPC-2070 Series, MPC-2121 Series, MPC-2120 Series, and MPC-2101 Series in the Displays and Panel Computers.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA MPC-2240Z Panel Computer through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Computer | |
|---|---|
| CPU | Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz) |
| Supported OS | Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 (WS7P) 64-bit, Windows 10 Pro 64-bit, Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA, Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA |
| OS (pre-installed) | - |
| System Memory | 4 GB DDR3/DDR3L |
| Graphics Controller | Intel® HD Graphics 520 |
| Storage Slot | 2.5-inch HDD/SSD slots x 2 |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Digital Input/Output Channels | - |
| Serial Ports | 2 x RS-232/422/485 ports, software selectable (DB9 male) |
| USB | 4 x USB 2.0 hosts, type-A connectors |
| Expansion Slot | - |
| Display | |
| Panel Size | 24-inch viewable image |
| Aspect Ratio | 16:9 |
| Response Time | 25 ms (gray to gray) |
| Contrast Ratio | 5000:1 |
| Viewing Angles | 178°/178° |
| Touch | Capacitive Touch (PCAP) |
| Pixels | 1920 x 1080 |
| Pixel Pitch (RGB) | 0.276 (H) x 0.276 (V) mm |
| Light Intensity | 300 cd/m^2 |
| Active Display Area | 531.36 (H) x 98.89 (V) mm |
| Max. No. of Colors | 16.7M (8-bit/color) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | - |
| Power Requirements | |
| Input Voltage | 100 to 240 VAC, 18 to 34 VDC (Dual power inputs) |
| Power Consumption | - |
| Physical Characteristics | |
| Dimensions | 595 x 393 x 75 mm (23.44 x 15.48 x 2.95 in) |
| Housing | Metal |
| Operating temperature | -15 to 55°C (5 to 131°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V; Environmental Testing: IEC 60068-2-1, DNV-CG-0339, IEC 60068-2-2, DNV-CG-0339, IEC 60068-2-2, IEC 60945, IEC 60068-2-30, IEC 60945; Maritime: ABS, CCS, DNV; Safety: EN 60950-1, IEC 60950-1, UL 60950-1; Vibration: IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNV-CG-0339; IP54; IP20 |
| Weight | 12,400 g (27.34 lb) |
| Mounting | VESA, panel, and desktop |
