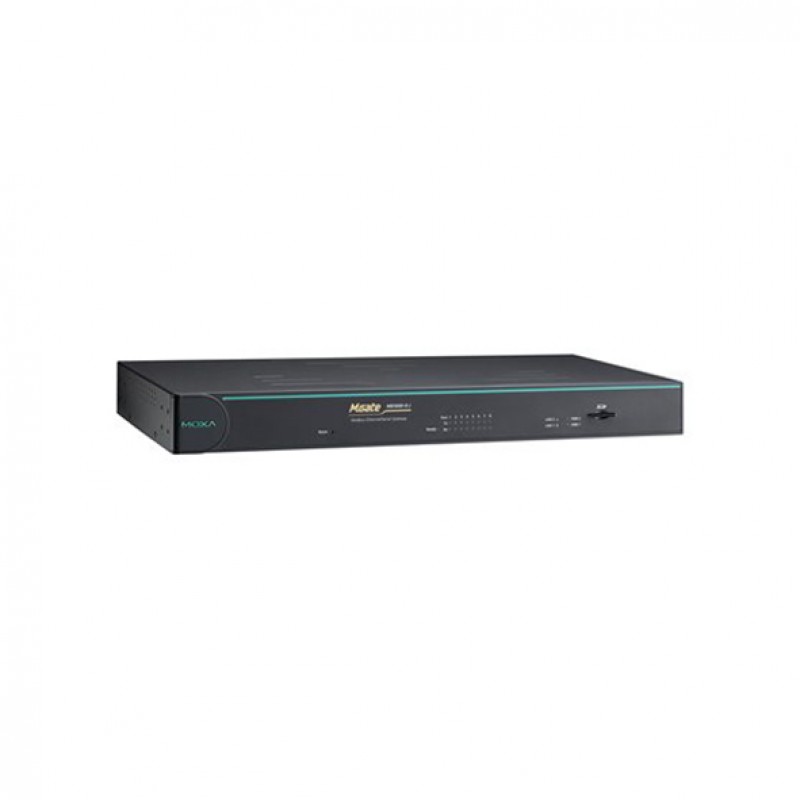

MOXA MGate MB3660-8-2AC Industrial Ethernet Gateways
- Supports Auto-Device Routing for easy configuration
- Supports route by TCP port or IP address for flexible deployment
- Innovative Command Learning eliminates the need to key in
- SCADA Modbus commands (acts as an agent gateway)
- High performance through active and parallel polling of serial devices
- Supports serial (Master) to serial (Slave) communications
- 2 Ethernet ports with the same IP or dual IP addresses
- SD card for configuration backup
- Access by up to 256 TCP master/client devices, or connect to 128 TCP slave/server devices
- Dual VDC or VAC power inputs with a wide power input range
- 3-pin fault relay circuit for event alarms
- 2 kV isolation protection (for “-I” models)
- Brand: MOXA
- Product Code: MGate MB3660-8-2AC
.png)
Description
The MGate MB3660 (MB3660-8 and MB3660-16) gateways are
redundant Modbus gateways that convert between the Modbus TCP and Modbus
RTU/ASCII protocols. They can be accessed by up to 256 TCP master/client
devices, or connect to 128 TCP slave/server devices. The MGate MB3660 isolation
model provides 2 kV isolation protection suitable for power substation
applications. The MGate MB3660 gateways are designed to easily integrate Modbus
TCP and RTU/ASCII networks. The MGate MB3660 gateways offer features that make
network integration easy, customizable, and compatible with almost any Modbus
network. For large-scale Modbus deployments, MGate MB3660 gateways can
effectively connect a large number of Modbus nodes to the same network.
The MB3660 Series can physically manage up to 248 serial slave nodes for 8-port models or 496 serial slave nodes for 16-port models (the Modbus standard only defines Modbus IDs from 1 to 247). Each RS-232/422/485 the serial port can be configured individually for Modbus RTU or Modbus ASCII operation and different baud rates, allowing both types of networks to be integrated with Modbus TCP through one Modbus gateway.
Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA MGate MB3660-8-2AC Industrial Ethernet Gateways and all the MOXA Industrial Ethernet Gateways through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Ethernet Interface | |
|---|---|
| Number of Ports | 2 (2 IP addresses) |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector | RJ45 x 2 |
| Protocols | Modbus TCP Client/Server |
| Serial port specifications | |
| Protocols | Modbus RTU/ASCII Master/Slave |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Number of Ports | 8 |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| Serial Standards | RS-232/422/485, software selectable |
| Connectors | DB9 male, RJ45 |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Isolation | 2 kV (for “-I” model) |
| Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, DTR/DSR, RTS Toggle (RS-232 only) |
| Baudrate | 50 bps to 921.6 Kbps |
| Software | |
| Configuration Options | Web conDevice Search Utility (DSU) for Windows 95, 98, ME, NT, 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1/10 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2sole, Serial console, Telnet console |
| Utility | Device Search Utility (DSU) for Windows 95, 98, ME, NT, 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1/10 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Network Protocols | TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP Client, SNMPv1, ARP, Telnet, Radius |
| General | |
| MTBF | 716,647 hrs |
| Power Requirements | |
| Input Current | 144 mA @ 110 VAC, 101 mA @ 220 VAC |
| Input Voltage | Dual 100 to 240 VAC, 47 to 63 Hz |
| Power Connector | Terminal block (for DC models) |
| Physical Characteristics | |
| Dimensions | Without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in), With ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in) |
| Housing | Metal, IP30 |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Weight | 2,731 g (6.02 lb) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32 |
| Safety | UL 60950-1, EN 60950-1 (LVD) |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10V/m, IEC 61000-4-8 PFMF |
