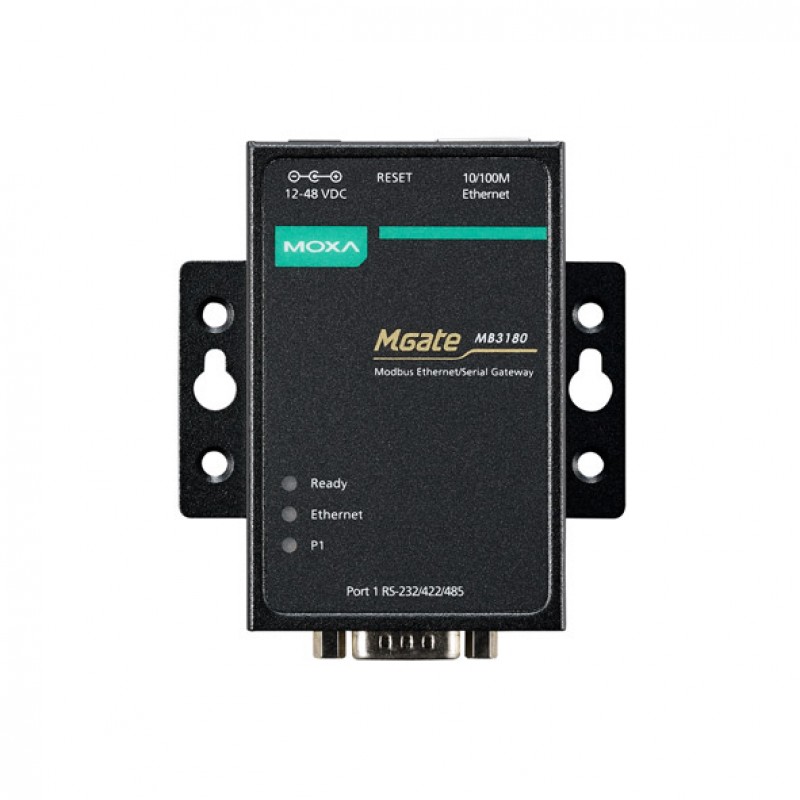

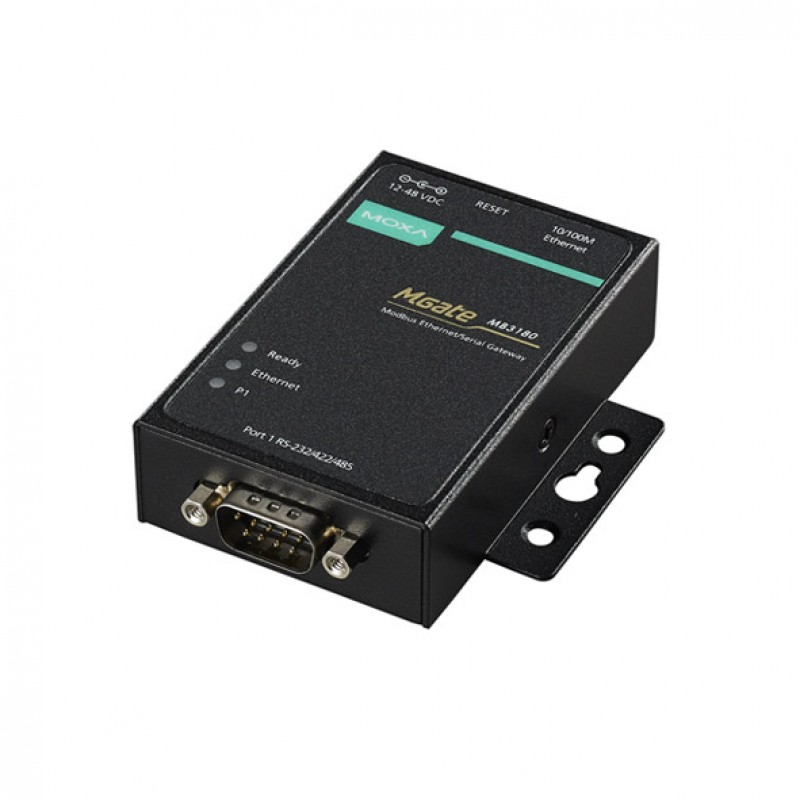

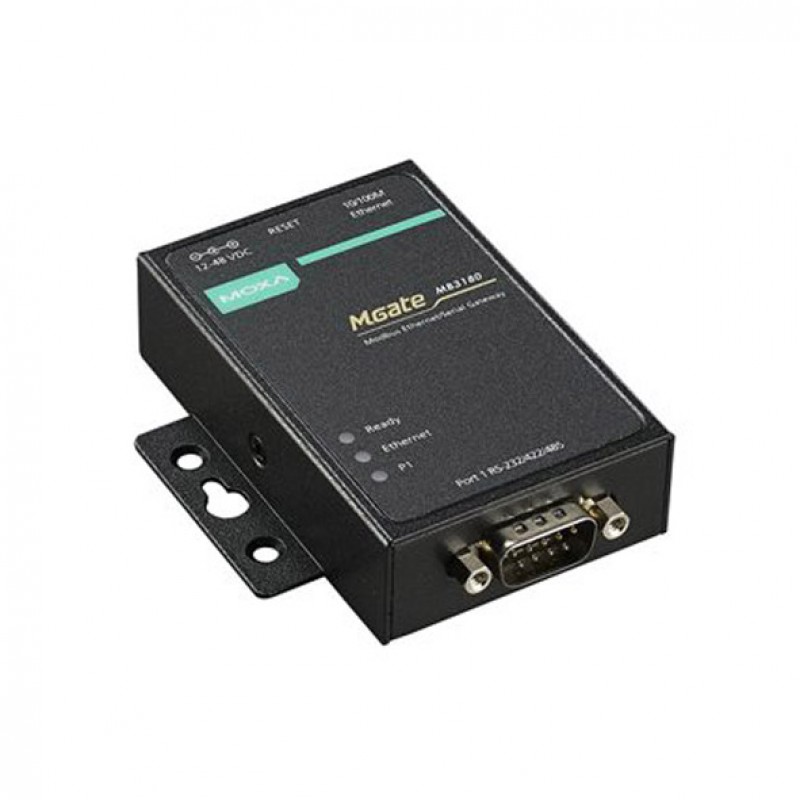

MOXA MGate MB3180 Industrial Ethernet Gateway
- Serial to Ethernet Modbus Gateway
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x RS 232/422/485 Serial port (DB9 male connector)
- 12 to 48 VDC input power range
- IP30-rated Metal body design
- 0 to 55°C operating temperature
.png)
Description
The MB3180, MB3280, and MB3480 are standard Modbus gateways that convert between Modbus TCP and Modbus RTU/ASCII protocols. Up to 16 simultaneous Modbus TCP masters are supported, with up to 31 RTU/ASCII slaves per serial port. For RTU/ASCII masters, up to 32 TCP slaves are supported.
Standard Modbus Network Integration
The three standard MGate™ models (MB3180, MB3280, and MB3480) are designed for easy integration of Modbus TCP and RTU/ASCII networks. With these models, Modbus serial slave devices can be seamlessly incorporated into an existing Modbus TCP network, and Modbus TCP slaves can be made accessible to serial masters. The MB3180, MB3280, and MB3480 offer features that make network integration easy, customizable, and compatible with almost any Modbus network.
High Density, Cost-Effective Gateways
The MGate™ MB3000 gateways can effectively connect a high density of Modbus nodes to the same network. The MB3280 can manage up to 62 serial slave nodes and the MB3480 can manage up to 124 serial slave nodes. Each RS-232/422/485 serial port can be configured individually for Modbus RTU or Modbus ASCII operation and for different baud rates, allowing both types of networks to be integrated with Modbus TCP through one Modbus gateway.
You can also find the MGate MB3280 and MGate MB3480 models
in the Industrial Ethernet Gateways.
Easy World Automation offers the
easiest way to buy the MOXA MGate MB3180 Industrial Ethernet Gateway in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port (Auto MDI/MDI-X connection) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Other ports | |
| Protocols | Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave); Serial: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave |
| Serial port specifications | |
| Number of Ports | 1 Port |
| Console Port | |
| Connectors | DB9 male |
| Serial Standards | RS-232/422/485 |
| Isolation | |
| Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS |
| Baudrate | 50 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| General | |
| Management | ARP, DHCP Client, DNS, HTTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP |
| MTBF | 2,762,384 hrs |
| Memory | |
| microSD Slot | |
| Power Requirements | |
| Input Current | 200 mA @ 12 VDC |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Power jack |
| Security | |
| Security | Security Protocols: SNMPv3 |
| Authentication | Local database |
| Encryption | HTTPS, AES-128, AES-256, SHA-256 |
| Physical Characteristics | |
| Dimensions | 22 x 52 x 80 mm (0.87 x 2.05 x 3.15 in) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: EN 62368-1, UL 60950-1; IP30; Telcordia SR332 |
| Housing | Metal |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Weight | 340 g (0.75 lb) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
