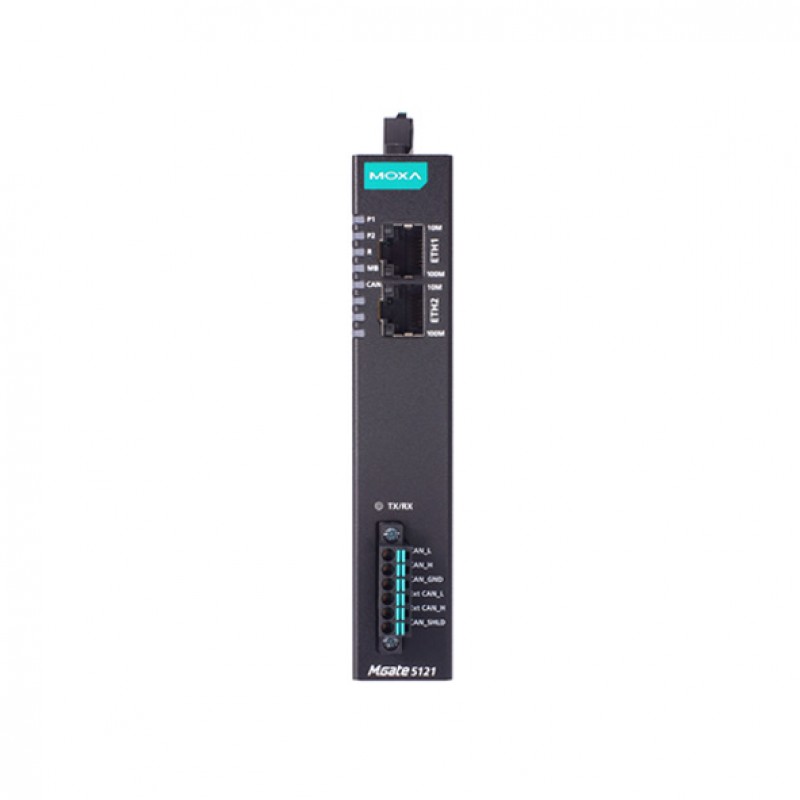

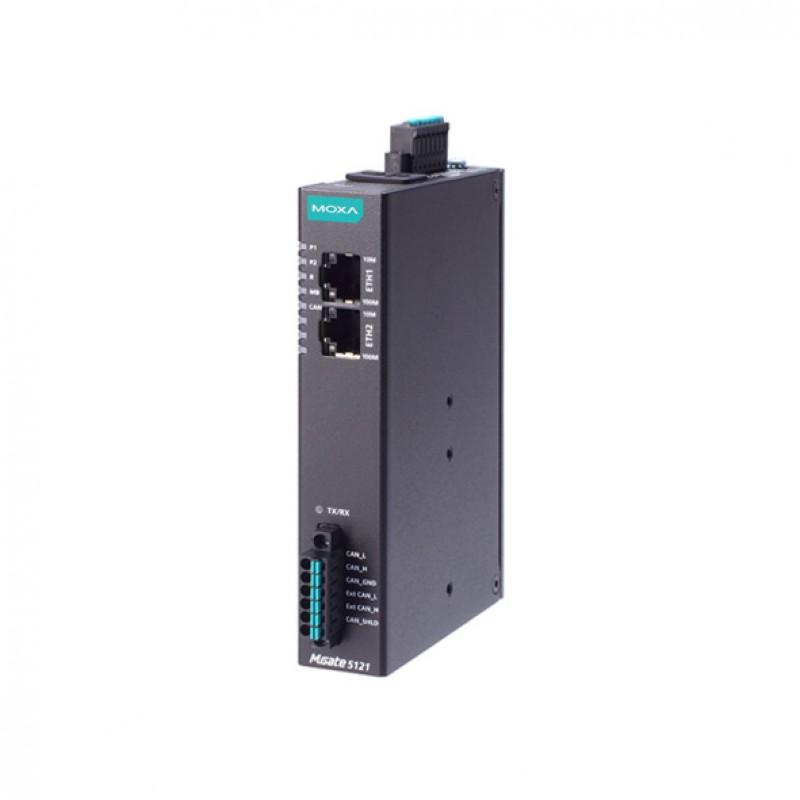

MOXA MGate 5121 Industrial Ethernet Gateway
- Converts CANopen and J1939 to Modbus TCP and SNMP
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x CAN port (Spring-type Euroblock terminal connector)
- 2 KV isolation protection for CAN port
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- -10 to 60°C operating temperature
.png)
Description
The MGate 5121 is an industrial Ethernet gateway for converting CANopen or J1939 to Modbus TCP network communications. To integrate existing CANopen or J1939 devices onto a Modbus TCP network, use the MGate 5121 as a CANopen or J1939 master to collect data and exchange data with the Modbus TCP host. All models are protected by a rugged and compact metal housing and are DIN-rail mountable. The rugged design is suitable for industrial applications such as factory automation and other process automation industries.
Easy Configuration
The MGate 5121 gateways are provided with a web console to
make configuration easy without having to install an extra utility. In
addition, HTTPS encryption of communication ensures higher network security.
In most data-acquisition applications, the configuration of CANopen devices can be time-consuming and increase costs. The MGate 5121 gateways provide an EDS file import function and the user can auto-scan the CANopen devices to help complete the settings quickly. The MGate gateways provide software-configurable termination resistor settings for CANbus to reduce efforts by eliminating the need to open the chassis.
You can also find the MGate 5121-T model in the Industrial Ethernet Gateways.
Inquire about the MOXA MGate 5121 Industrial Ethernet Gateway, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports (Auto MDI/MDI-X connection) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Other ports | : 1 x CAN port with 2 KV isolation (Spring-type Euroblock terminal connector) |
| Protocols | Ethernet: Modbus TCP Client; CAN: CANopen master, J1939 |
| Serial port specifications | |
| Number of Ports | - |
| Console Port | - |
| Connectors | - |
| Serial Standards | - |
| Isolation | - |
| Serial Communication Parameters | |
| Data Bits | - |
| Stop Bits | - |
| Parity | - |
| Flow Control | - |
| Baudrate | - |
| Serial Signals | |
| RS-232 Signals | - |
| RS-422 Signals | - |
| RS-485-2w Signals | - |
| RS-485-4w Signals | - |
| General | |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS,SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, UDP |
| MTBF | 1,408,984 hrs |
| Memory | |
| microSD Slot | Up to 32 GB (SD 2.0 compatible) |
| Power Requirements | |
| Input Current | 455 mA (max) |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Spring-type Euroblock terminal |
| Security | |
| Security | Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3) |
| Authentication | Local database |
| Encryption | HTTPS, AES-128, AES-256, SHA-256 |
| Physical Characteristics | |
| Dimensions | 25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in) |
| Standards and Certifications | Safety: EN 61010-2-201, UL 61010-2-201; EMC: EN 61000-6-2/-6-4; EMI: FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF;; Freefall: IEC 60068-2-31; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332 |
| Housing | Metal |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Weight | 294 g (0.65 lb) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | - |
