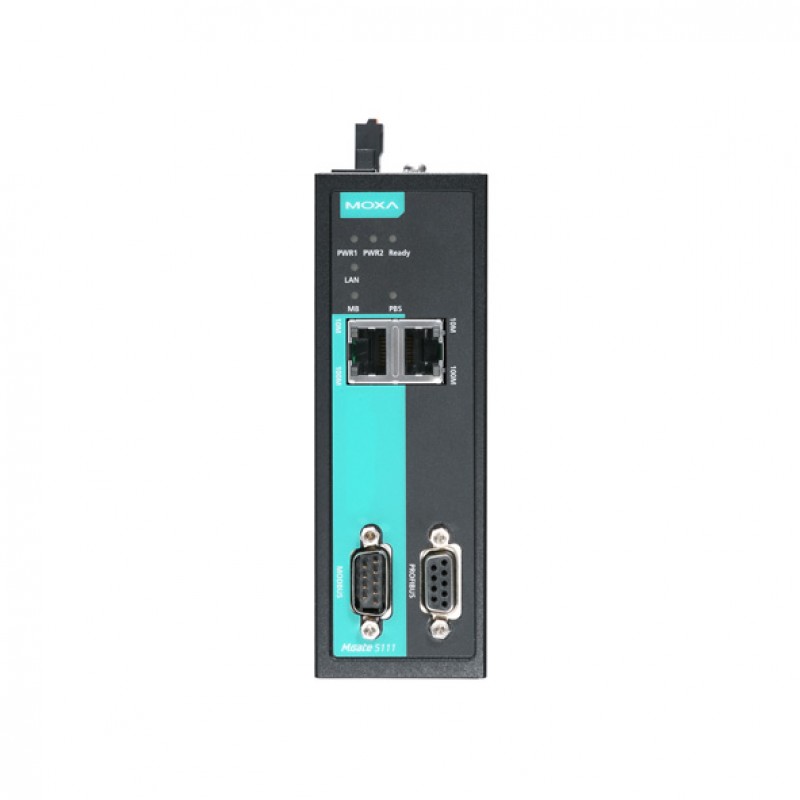

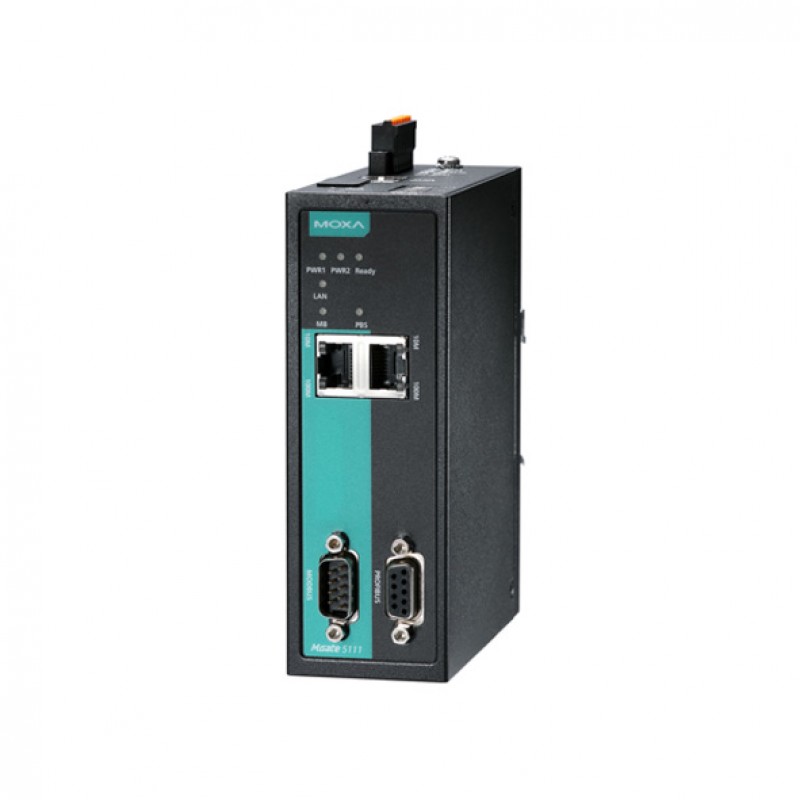

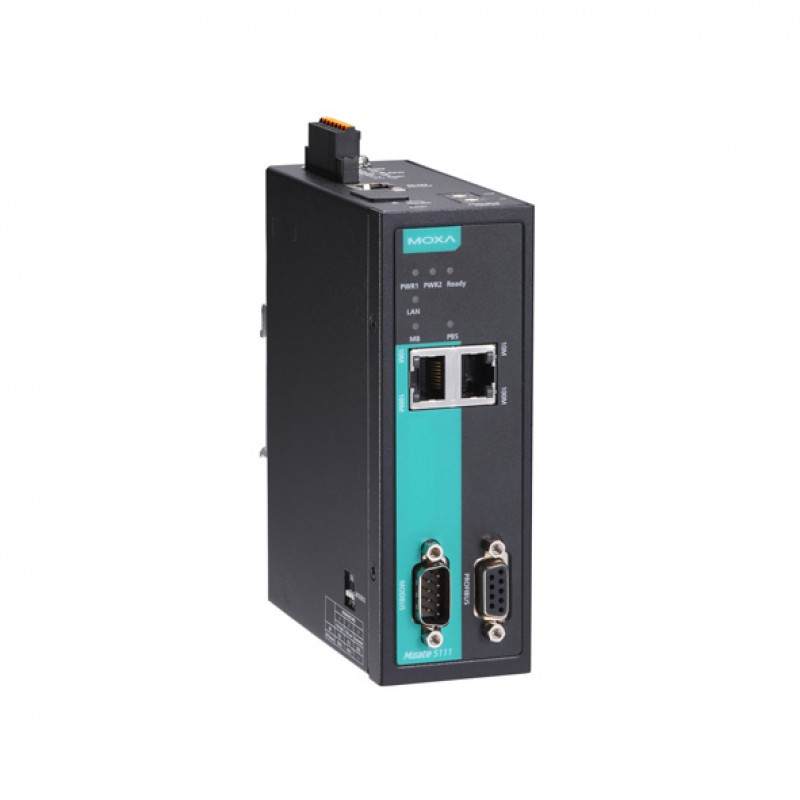

MOXA MGate 5111 Industrial Ethernet Gateways
- Converts Modbus/PROFINET/EtherNet/IP to PROFIBUS
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x RS-232/422/485 Serial port and 1 x PROFIBUS port (DB9 male)
- 2 KV isolation protection for Serial and PROFIBUS ports
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- 0 to 60°C operating temperature
.png)
Description
MGate 5111 industrial Ethernet gateways convert data between the Modbus RTU/ASCII/TCP, EtherNet/IP, PROFINET, and PROFIBUS protocols. All models are protected by rugged metal housing, are DIN-rail mountable, and offer built-in serial isolation.
Modbus is one of the most widely used industrial
communication protocols, and EtherNet/IP, PROFINET, and PROFIBUS are commonly
used in factory automation and process automation. The MGate 5111 supports both
Modbus RTU/ASCII/TCP master and slave modes so that you can easily connect
your Modbus device to PROFIBUS PLCs or DCSs, such as Siemens PLCs.
For system integration, the MGate 5111 can connect to EtherNet/IP PLC/SCADA systems, such as Rockwell Automation PLCs, to PROFIBUS PLC/ DCS systems, or between a new Siemens PLC system that supports PROFINET to an existing PROFIBUS system. The MGate 5111 gateways are designed for easy configuration and quick maintenance. A handy web console can be used to implement remote maintenance tasks, and the configuration wizard UI lets you quickly set up your gateway. A comprehensive collection of troubleshooting tools reduces configuration time and system downtime. The rugged design is suitable for industrial applications, such as factory automation, power, oil and gas, water and wastewater, and other process automation industries.
You can also find the MGate 5111-T model in the Industrial Ethernet Gateways.
Inquire about the MOXA MGate 5111 Industrial Ethernet Gateways, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports (Auto MDI/MDI-X connection) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Other ports | : 1 x PROFIBUS port with 2 KV isolation (DB9 female connector) |
| Protocols | Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave), PROFINET IO Device, EtherNet/IP Adapter; Serial: PROFIBUS DP-V0 Slave, Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, PROFIBUS DP |
| Serial port specifications | |
| Number of Ports | 1 Port |
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| Connectors | DB9 male |
| Serial Standards | RS-232/422/485 |
| Isolation | : 2 kV (built-in) |
| Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS Toggle (RS-232 only), RTS/CTS |
| Baudrate | 50 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| General | |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client |
| MTBF | 718,131 hrs |
| Memory | |
| microSD Slot | Up to 32 GB (SD 2.0 compatible) |
| Power Requirements | |
| Input Current | 416 mA @ 12 VDC |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Spring-type Euroblock terminal |
| Security | |
| Security | |
| Authentication | |
| Encryption | |
| Physical Characteristics | |
| Dimensions | 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 61010-2-201; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332 |
| Housing | Metal |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Weight | 589 g (1.30 lb) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
