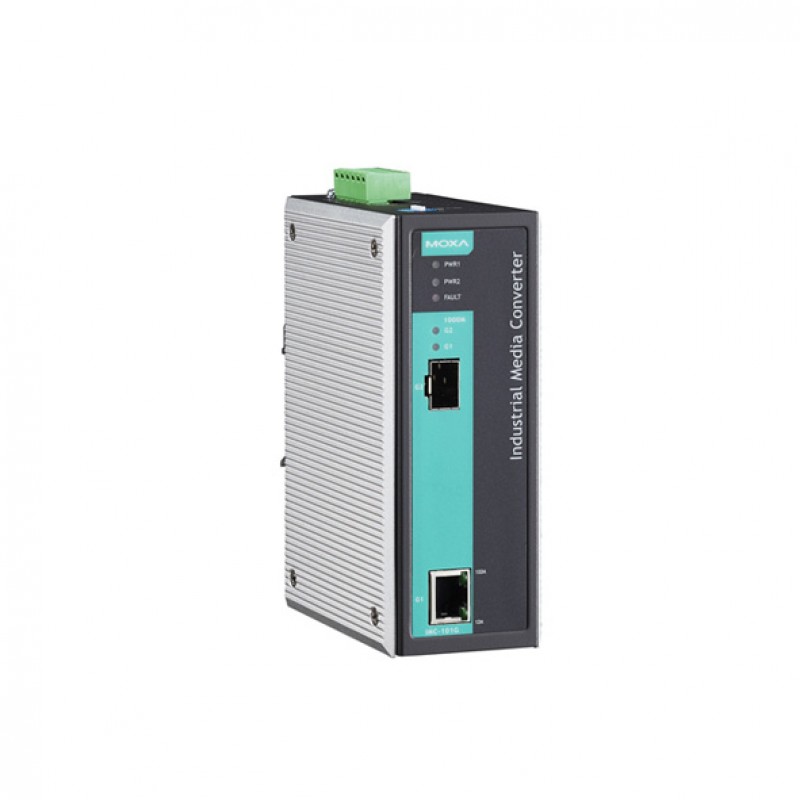

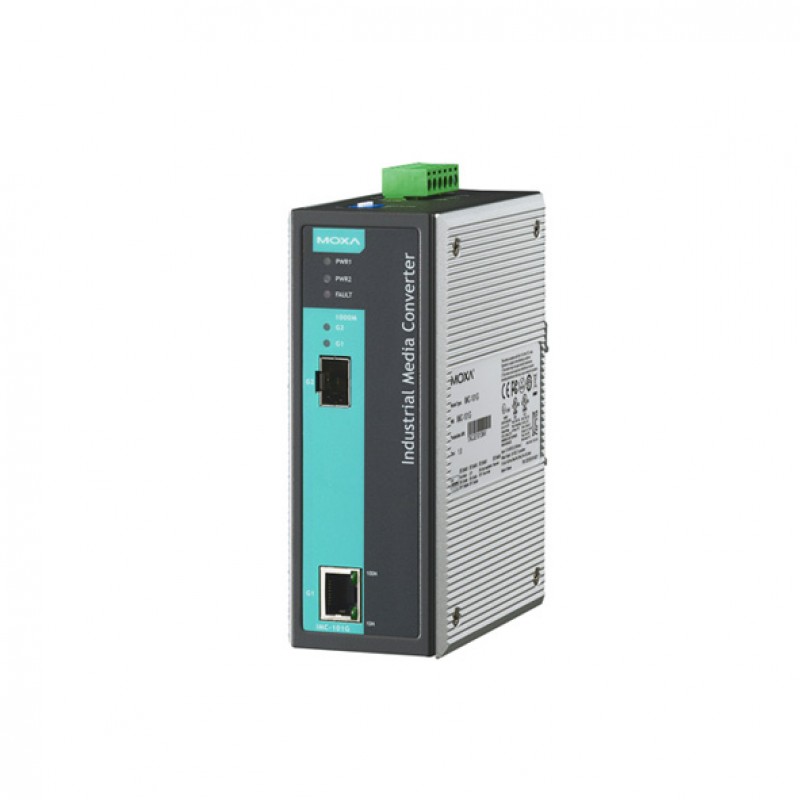

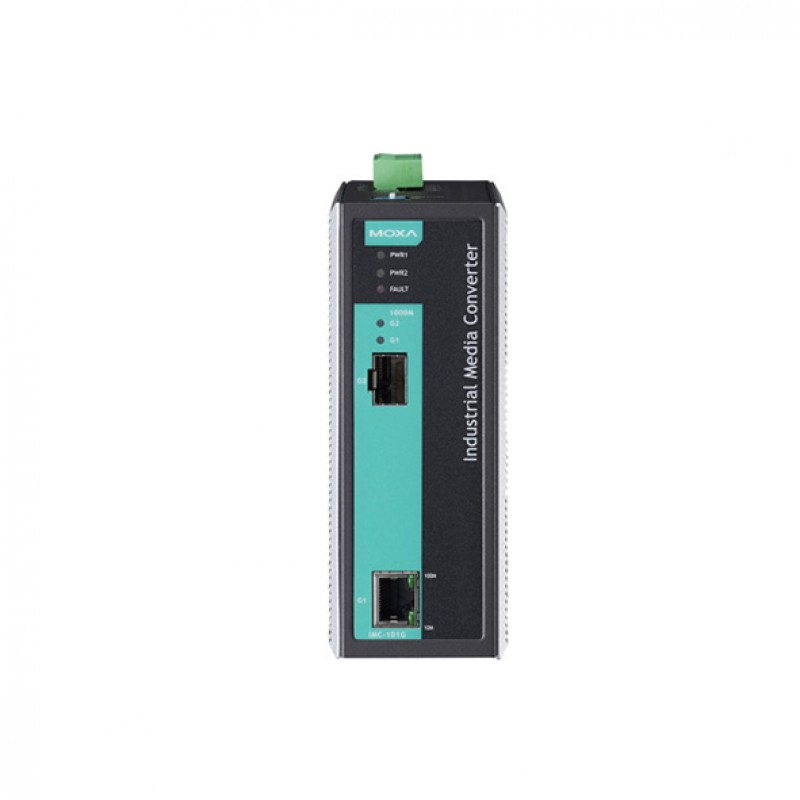

MOXA IMC-101G Ethernet to Fiber Converter
- Ethernet to fiber optic converter
- 1 100/1000 Mbps Ethernet port
- 1 100/1000 Mbps SFP fiber-optic port
- Input power 12V DC to 45V DC
- Brand: MOXA
- Product Code: IMC-101G
.png)
Description
The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converter’s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, IECEx, DNV, and GL Certification), and comply with FCC, UL, and CE standards. Models in the IMC-101 Series support operating temperature from 0 to 60°C, and an extended operating temperature from -40 to 75°C. All IMC-101 converters are subjected to a 100% burn-in test.
You can also find the IMC-101G-T model in the IMC-101G series.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA IMC-101G Ethernet to Fiber Converter through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 1 Port |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 1 Port |
| M12 port | |
| Alert Output | |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IP30 |
| General | |
| Maximum cable length for data transfer | - |
| MTBF | 500,540 hour |
| Power Requirements | |
| Power consumed | 12V DC to 45V DC |
| Type of power input | Terminal Input |
| POE Support | |
| Protection against reverse voltage | |
| Protection against overflow | |
| LED Indicators | |
| LNK/ACT | |
| Power | |
| Buttons | |
| DIP Switch | Port break alarm mask, Link Fault Pass-Through, SFP Auto/Force |
| Physical Characteristics | |
| Standards and Certifications | Safety: UL 508; Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX ; Zone 2 Ex nC IIC; EMC: CE, FCC; EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A; EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 2, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE |
| Housing | Metal |
| Dimensions | 53.6x135x105mm |
| Weight | 0.63Kg |
| Operating Temperature | 0 to 60 ° C |
| Storage Temperature | -40 to 85 ° C |
| Operation Humidity | 5% to %95 non-condensing |
| Installation | Din-rail and wall mount |
