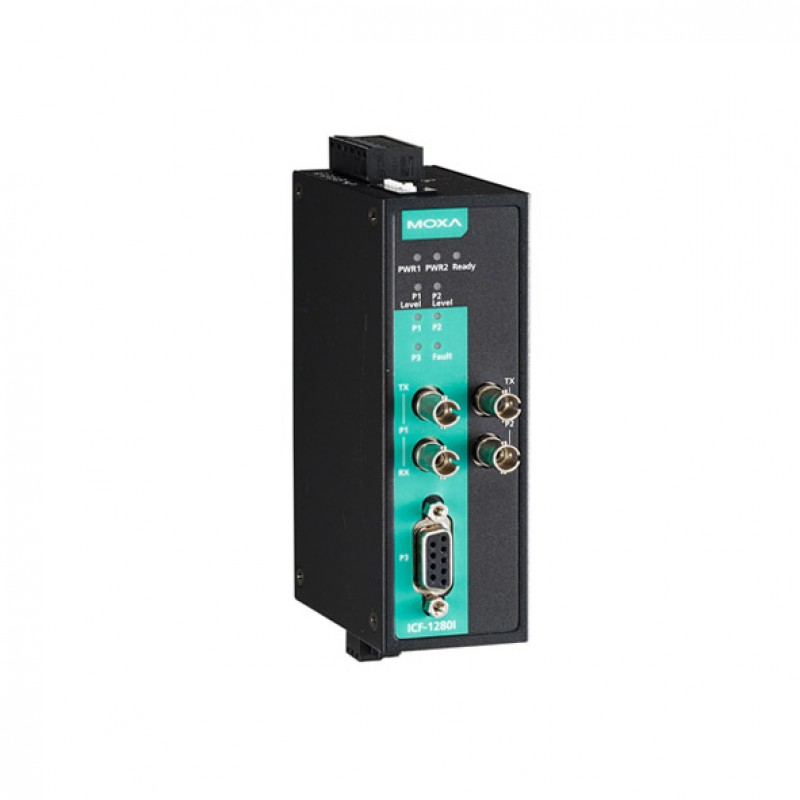

MOXA ICF-1280I-M-ST-T PROFIBUS to Fiber Converter

PROFIBUS to multi-mode ST fiber-optic converter
1 x PROFIBUS Port (DB9 female connector)
2 x 100BaseFX ports (multi-mode ST connector)
4 KM Typical data transmission distance on fiber
12 to 48 VDC Redundant dual power inputs
IP30-rated Metal body design
DIN-rail mounting
-40 to 75°C operating temperature

Brand: MOXA
Product Code: ICF-1280I-M-ST-T

Tags: Industrial Edge Connectivity , Serial Converters , Fieldbus-to-Fiber Converters , PROFIBUS to Fiber converters , Industrial Converters , Protocol Converters , Industrial Serial Connectivity , Fieldbus Solutions , Marine Products , Oil & Gas Products , Converters , MOXA ICF-1280I Series

Description

The ICF-1280I industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. The converters are used to extend serial transmission up to 4 km (multi-mode fiber) or up to 45 km (single-mode fiber). The ICF-1280I Series provides 2 kV isolation protection for the PROFIBUS system and dual power inputs to ensure that your PROFIBUS device will perform uninterrupted.

Redundant Ring

The ICF-1280I Series of converters can connect PROFIBUS devices in a redundant fiber ring topology. Use the DIP switch to configure all the ICF- 1280I converters to redundant ring mode. When a PROFIBUS master transmits a signal from one converter to the PROFIBUS slave devices, this signal will travel to all the converters around the ring until it returns to the original converter and terminates. The redundant ring structure ensures no packet loss with zero recovery time.

You can also find the ICF-1280I-M-ST, ICF-1280I-S-ST, and ICF-1280I-S-ST-T models in the Protocol Converters.

Inquire about the MOXA ICF-1280I-M-ST-T PROFIBUS to Fiber Converter, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
100Mb Fiber optic single mode (Megabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports	: 2 ST Ports
Serial port
Other ports	: 1 x PROFIBUS Port (DB9 female connector)
Converter specifications
Data transfer speed ( Baudrate )	9600 bps to 12 Mbps
Maximum data transmission distance	4 Km on fiber
Minimum output power converter	-14 dBm
Sensitivity to receiving information	-28 dBm
Require cable diameter	-
Flow Control	-
Protocols	PROFIBUS DP
Serial Signals
RS-232 Signals	-
RS-422 Signals	-
RS-485-2w Signals	-
RS-485-4w Signals	-
Power Requirements
Power Consumption (Output Adapter)	370 mA @ 12 to 48 VDC
Power Input Plugin ( Redundant )
Overload Current Protection	Supported
Reverse Polarity Protection
Input Voltage	12 to 48 VDC
Input Current	370 mA @ 12 to 48 VDC
Connector	Terminal block
General
Fan / Fanless	-
MTBF	1,870,854 hrs
Physical Characteristics
Dimensions	39 x 115 x 70 mm (1.54 x 4.53 x 2.76 in)
Housing	Metal
Installation	DIN-rail mounting
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35;EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Hazardous Locations: ATEX, Class I Division 2, IECEx; Maritime: DNV; Safety: IEC 60950-1, UL 508; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-
Weight	225 g (0.49 lb)
LED Indicators
LED Per Port
Power
