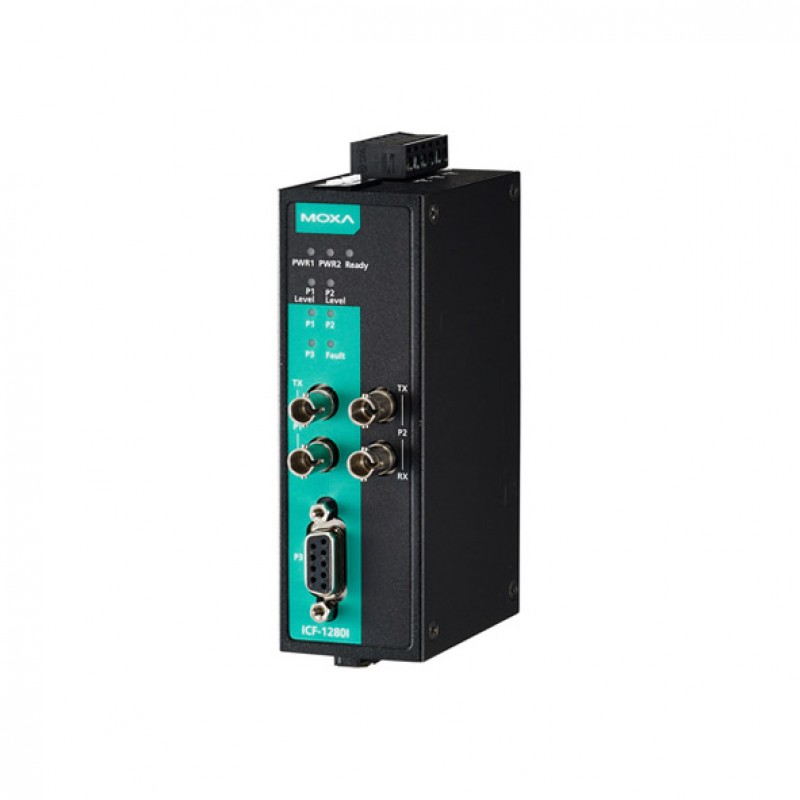

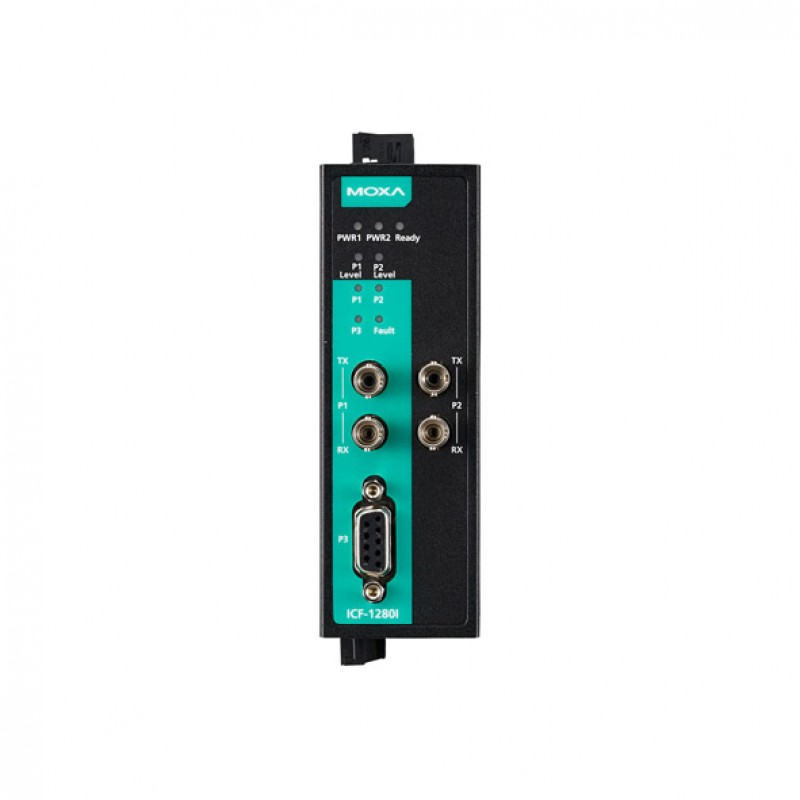

MOXA ICF-1280I-M-ST PROFIBUS to Fiber Converter
- PROFIBUS to multi-mode ST fiber-optic converter
- 1 x PROFIBUS Port (DB9 female connector)
- 2 x 100BaseFX ports (multi-mode ST connector)
- 4 KM Typical data transmission distance on fiber
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- DIN-rail mounting
- 0 to 60°C operating temperature
- Brand: MOXA
- Product Code: ICF-1280I-M-ST
.png)
Description
The ICF-1280I industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. The converters are used to extend serial transmission up to 4 km (multi-mode fiber) or up to 45 km (single-mode fiber). The ICF-1280I Series provides 2 kV isolation protection for the PROFIBUS system and dual power inputs to ensure that your PROFIBUS device will perform uninterrupted.
Redundant Ring
The ICF-1280I Series of converters can connect PROFIBUS
devices in a redundant fiber ring topology. Use the DIP switch to configure all
the ICF- 1280I converters to redundant ring mode. When a PROFIBUS master
transmits a signal from one converter to the PROFIBUS slave devices, this
signal will travel to all the converters around the ring until it returns to
the original converter and terminates. The redundant ring structure ensures no
packet loss with zero recovery time.
You can also find the ICF-1280I-M-ST-T, ICF-1280I-S-ST, and ICF-1280I-S-ST-T models in the Protocol Converters.
You can Buy the MOXA ICF-1280I-M-ST PROFIBUS to Fiber Converter via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 2 ST Ports |
| Serial port | |
| Other ports | : 1 x PROFIBUS Port (DB9 female connector) |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | 9600 bps to 12 Mbps |
| Maximum data transmission distance | 4 Km on fiber |
| Minimum output power converter | -14 dBm |
| Sensitivity to receiving information | -28 dBm |
| Require cable diameter | - |
| Flow Control | - |
| Protocols | PROFIBUS DP |
| Serial Signals | |
| RS-232 Signals | - |
| RS-422 Signals | - |
| RS-485-2w Signals | - |
| RS-485-4w Signals | - |
| Power Requirements | |
| Power Consumption (Output Adapter) | 370 mA @ 12 to 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 370 mA @ 12 to 48 VDC |
| Connector | Terminal block |
| General | |
| Fan / Fanless | - |
| MTBF | 1,870,854 hrs |
| Physical Characteristics | |
| Dimensions | 39 x 115 x 70 mm (1.54 x 4.53 x 2.76 in) |
| Housing | Metal |
| Installation | DIN-rail mounting |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35;EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Hazardous Locations: ATEX, Class I Division 2, IECEx; Maritime: DNV; Safety: IEC 60950-1, UL 508; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | - |
| Weight | 225 g (0.49 lb) |
| LED Indicators | |
| LED Per Port | |
| Power | |
