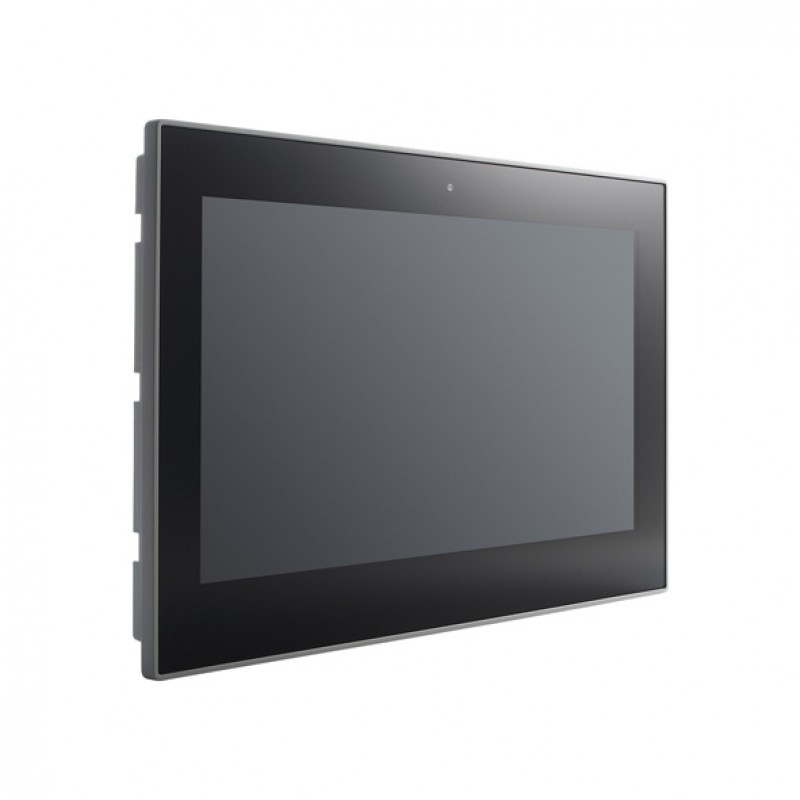

MOXA EXPC-F2150W-TL7-DC Panel Computer
- 15.6-inch Flat-Panel computer (1,200 nits)
- CPU: Intel® Core™ i7-1185G7E
- 4 x 10/100/1000 Mbps ports (RJ45 connector)
- 3 x RS-232/422/485 ports (DB9 male connector)
- Aluminum body design (IP66 for front, IP42 for rear)
- 9 to 36 VDC input power range
- -40 to 70°C operating temperature
.png)
Description
The EXPC-F2150W Series consists of 15.6-inch panel computers
with an 11th Gen Intel Core™ i processor that delivers a reliable, durable, and
versatile platform for use in industrial, hazardous, and mission-critical
environments. The EXPC-F2150W panel computers come with a rich set of
communication interfaces to meet the needs of all your industrial application
scenarios. The panel computers are also provided with DisplayPort and VGA video
outputs for extending the display.
The EXPC-F2150W panel computers come in a fanless design for
operations in the -40 to 70°C temperature range and a streamlined enclosure for
efficient heat dissipation, making them the most reliable industrial platforms
available for harsh, hot, outdoor environments such as oil and gas fields,
drilling platforms, and power stations, as well as smart heater solutions. The
panel computers are also specifically designed with sunlight-readable features
such as a 1200-nit LCD panel, projected-capacitive, glove-friendly, multi-touch
screen, optical bonding, and anti-glare design, to provide an excellent user
experience for outdoor applications.
You can also find the EXPC-F2150W-TL5-DC and EXPC-F2150W-TL7-AC models in the Displays And Panel Computers.
Easy World Automation offers the easiest way to buy the MOXA EXPC-F2150W-TL7-DC Panel Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Computer | |
|---|---|
| CPU | Intel® Core™ i7-1185G7E |
| Supported OS | Windows 10 Enterprise LTSC 21H2, Windows 11 Professional 23H2 64-bit, Debian 11 (driver) |
| OS (pre-installed) | OS is not pre-installed, OS installation via CTOS |
| System Memory | 16 GB (64 GB max) |
| Graphics Controller | Intel® Iris® Xe Graphics |
| Storage Slot | M.2 B key x 1 for SSD (internal, optional), CFexpress slots x 1 (external, default) |
| Interface | |
| LAN | 4 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Digital Input/Output Channels | |
| Serial Ports | 3 x RS-232/422/485 ports, software selectable (DB9 male) |
| USB | 2 x USB 3.0 hosts, type-A connectors, 2 x USB 2.0 hosts, type-A connectors |
| Expansion Slot | M.2 B key slot x 1 for 5G module, M.2 E key slot x 1 for Wi-Fi module |
| Display | |
| Panel Size | 15.6 in |
| Aspect Ratio | 16:9 |
| Response Time | 30 ms (typ.) |
| Contrast Ratio | 750:1 |
| Viewing Angles | Horizontal: 88°/88°, Vertical: 88°/88° |
| Touch | Projective Capacitive touchscreen (PCAP), GGG sensor with optical bonding |
| Pixels | 1920 x 1080 |
| Pixel Pitch (RGB) | 0.17925 (H) x 0.17925 (V) mm |
| Light Intensity | 1200 nits |
| Active Display Area | 344.16 (H) x 193.59 (V) mm |
| Max. No. of Colors | 16.7M (8-bit/color) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, Storage x 1, SSD |
| LAN | 2 per port, configurable by BIOS settings or via a Moxa software utility |
| Serial | 2 per port, configurable by BIOS settings or via a Moxa software utility |
| Power Requirements | |
| Input Voltage | 9 to 36 VDC |
| Power Consumption | 70 W (max.), 100 W (with thermal heater) |
| Physical Characteristics | |
| Dimensions | 403.99 x 274.48 x 99 mm (15.91 x 10.81 x 3.90 in) |
| Housing | Aluminum |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -45 to 75°C (-49 to 167°F) |
| Relative humidity | - |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; 1.8, 2.6, 3.5, 5 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV(AC), 1 kV(DC); Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV (AC), 0.5 kV (DC L-L), 1 kV (DC L-G); Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: EN / IEC 60079-0, EN / IEC 60079-7, EN / IEC 60079-15, Certification process underway; Mechanical Protection Rating: IEC 60529, IP code; Safety: UL 62368-1, EN 62368-1, IEC 62368-1; Shock: IEC 60068-2-27 compliant (with CFexpress card, 20G); Vibration: IEC 60068-2-27 compliant (with CFexpress card, 20G); UV Protection: IEC60068-2-5, CIE85: 300 to 3000 nm (included UV, visible, IR); 1000 hrs (procedure C; continuously for 24 hrs); IP66; IP42; Green Product: RoHS, CRoHS, WEEE |
| Weight | 6,900 g (15.21 lb) |
| Mounting | - |
